HBM MP55 - 2 Choose Amplifier Settings with the Aid of DIP Switches

8
PME-MP55
HBM A0563-5.5 en
2 Choose amplifier settings with the aid of DIP switches
NOTE
The DIP switches must be set up/changed before the PME is fitted.
Various settings are defined with DIP switches and can be read out via the
display (see chapter 5.3). These are the settings for
bridge excitation voltage, effective range, bridge type, analogue output,
master/slave, terminating bus impedance, edge steepness
To set up the DIP switches proceed as shown in Fig. 2.1.
Unscrew the
cover
1
2
S1/S2
S5
S10
S11
S12

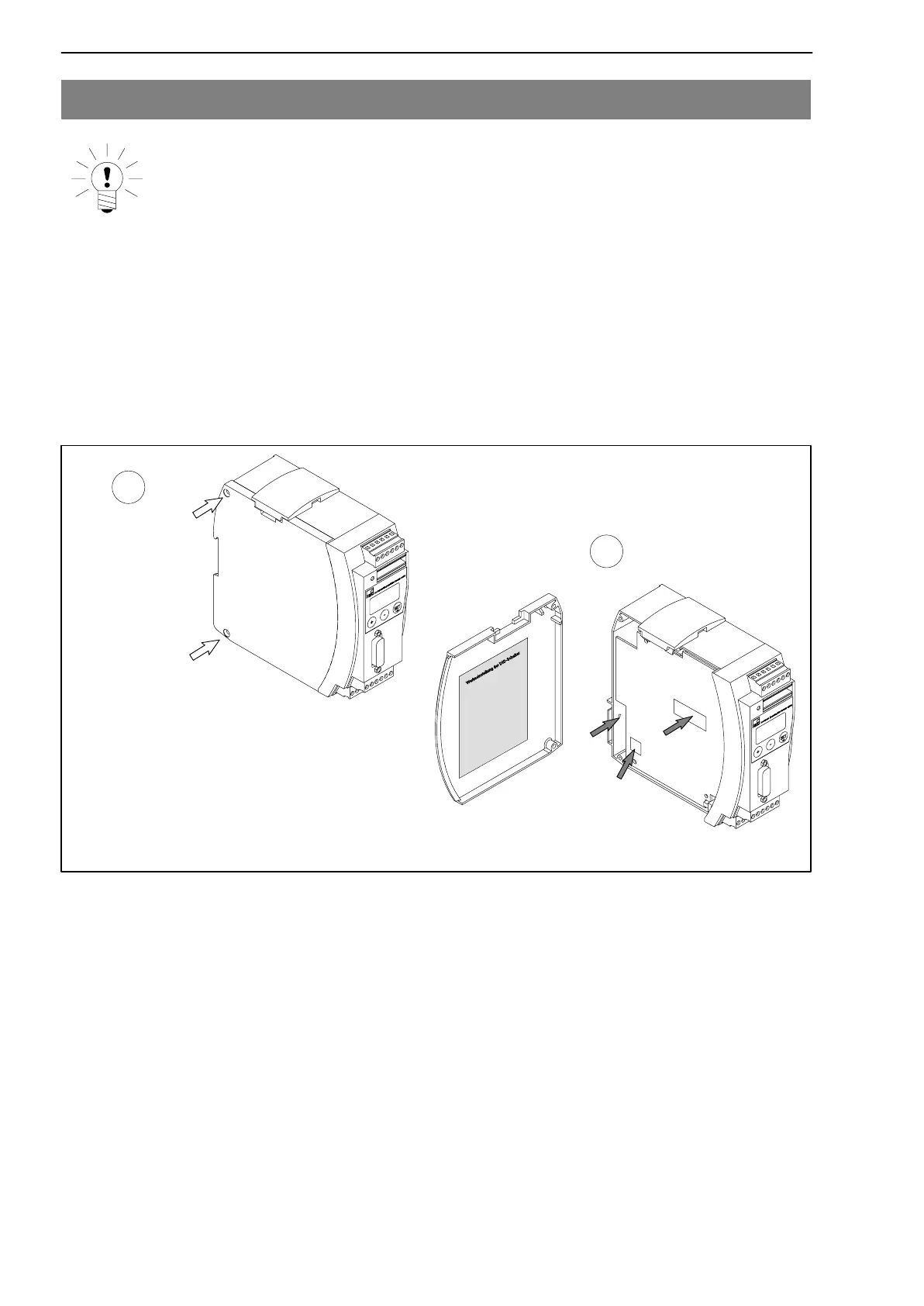

Fig. 2.1: Open the housing; position of the DIP switches
