HBM MP55 - Linking Several Modules

13
PME-MP55
HBMA0563-5.5 en
3.1 Linking several modules
1st
2nd
3rd
Colour coding
on pin 1
Ribbon cable jack-connector
Recommended di-
stance from the rib-
bon cable jack-con-
nector
Further devices are interconnected
via this connector.
58mm

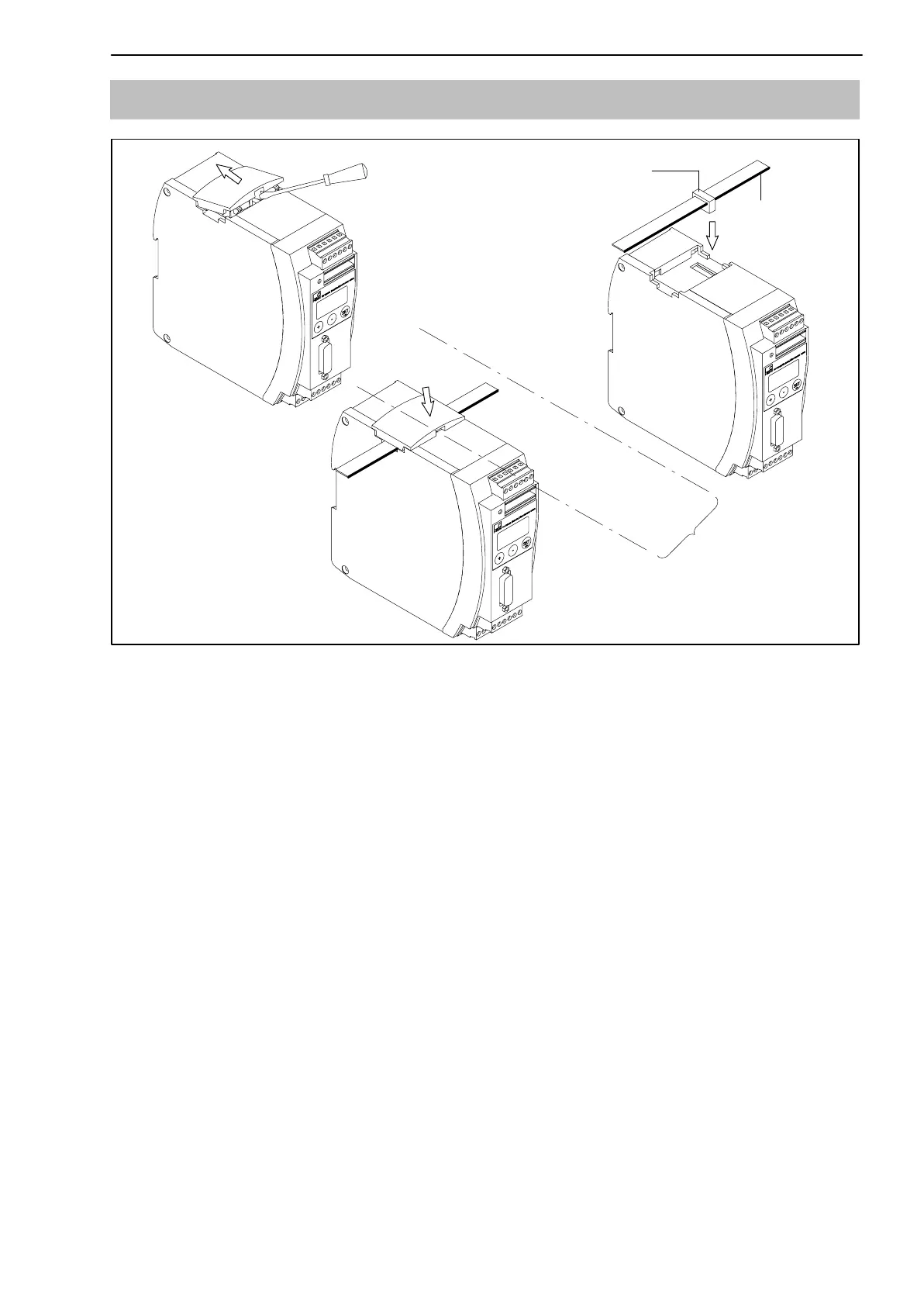

Fig. 4.1: Connecting ribbon cable
Several MP55 modules can be connected via one ribbon cable. This cable
serves as the local link for supply voltage and synchronisation between mod-
ules. No more than eight modules should be interconnected over one ribbon
cable.
