HBM MP55 - 1 Introduction; List of Components and Accessories Supplied

7
PME-MP55
HBMA0563-5.5 en
1 Introduction
1.1 List of components and accessories supplied
List of components supplied:
D 1 MP55 module
D 3 x 6-pin terminal plugs, coded
Order No.: 3.3312-0251 (terminal plug 3);
3.3312-0252 (terminal plug 4); 3.3312-0250 (terminal plug 1)
D 10-pin ribbon cable jack-connector
D 1 User Manual for the MP55 module
Accessories:
D 15-pin Sub-D connector for transducer, Order No.: 3.3312-0182
D Standard ribbon cable, 10pin, 1.27 mm pitch
1.2 Introduction
The MP55 module from the PME product line is a carrier-frequency amplifier,
and is ideal for connecting the widest possible technological varieties of force,
pressure, torque and displacement transducers as well as load cells. The
MP55 module is set up, and its parameters are assigned, using either the key-
board and display or the PME Assistent. The PME Assistent provides an easy
operator interface under MS-Windows and this is used for assigning parame-
ters to modules (as described in the ”PME Assistant” online help).
µP
A
D
Smart signal condi-
tioning, e.g. limit va-
lue switch
D
A
Keyboard & display
MP55
Carrier-frequency
transducer excitation
Analogue output
Control I/Os
CANopen in-
terface
24 V
DC
DC
Supply voltage

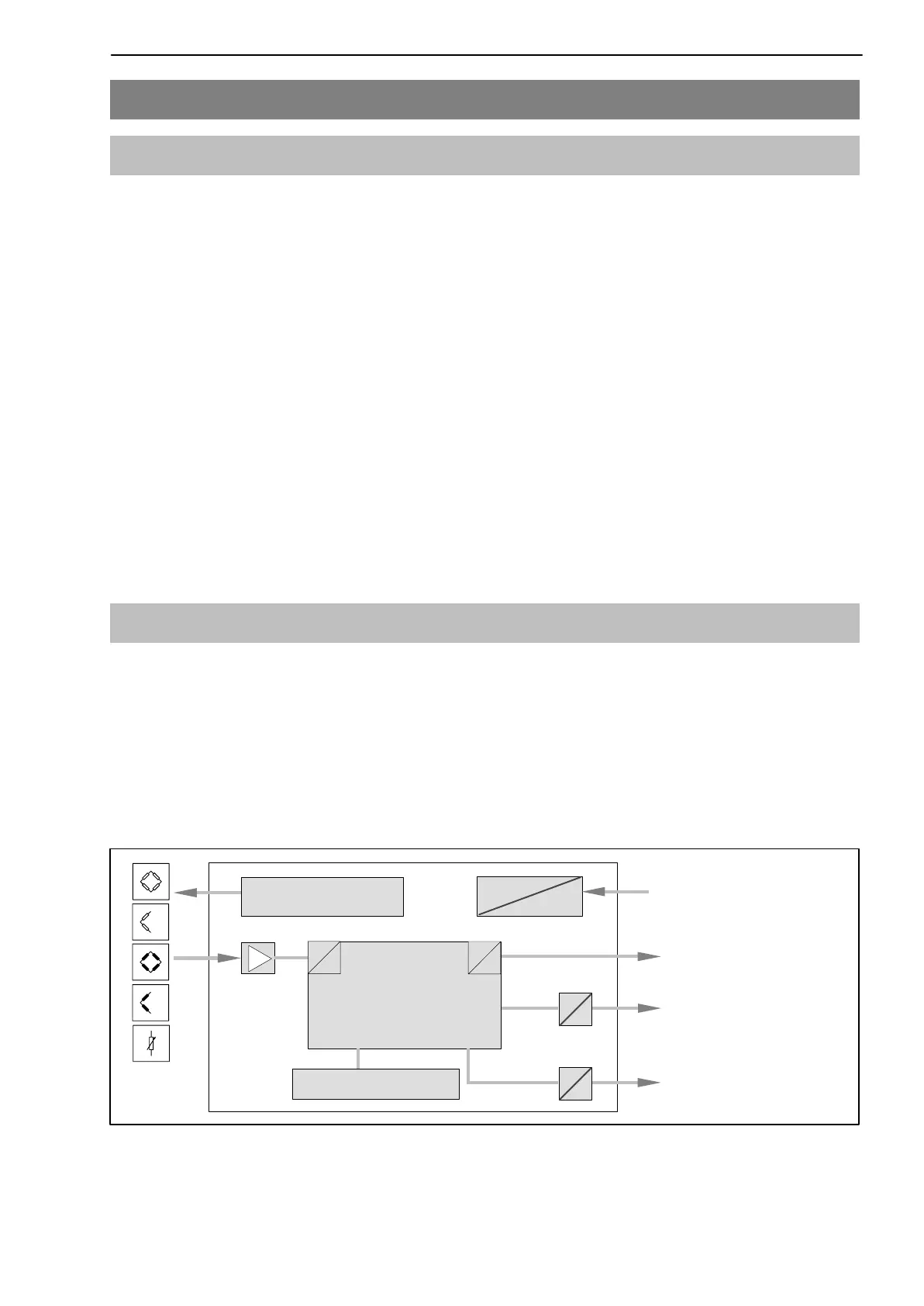

Fig. 1.1: Block diagram of the MP55 module
