HBM MP55 - 4 Connections; Functional Overview of the MP55

14
PME-MP55
HBM A0563-5.5 en
4 Connections
Warning
Comply with the safety instructions before putting the instrument into
service.

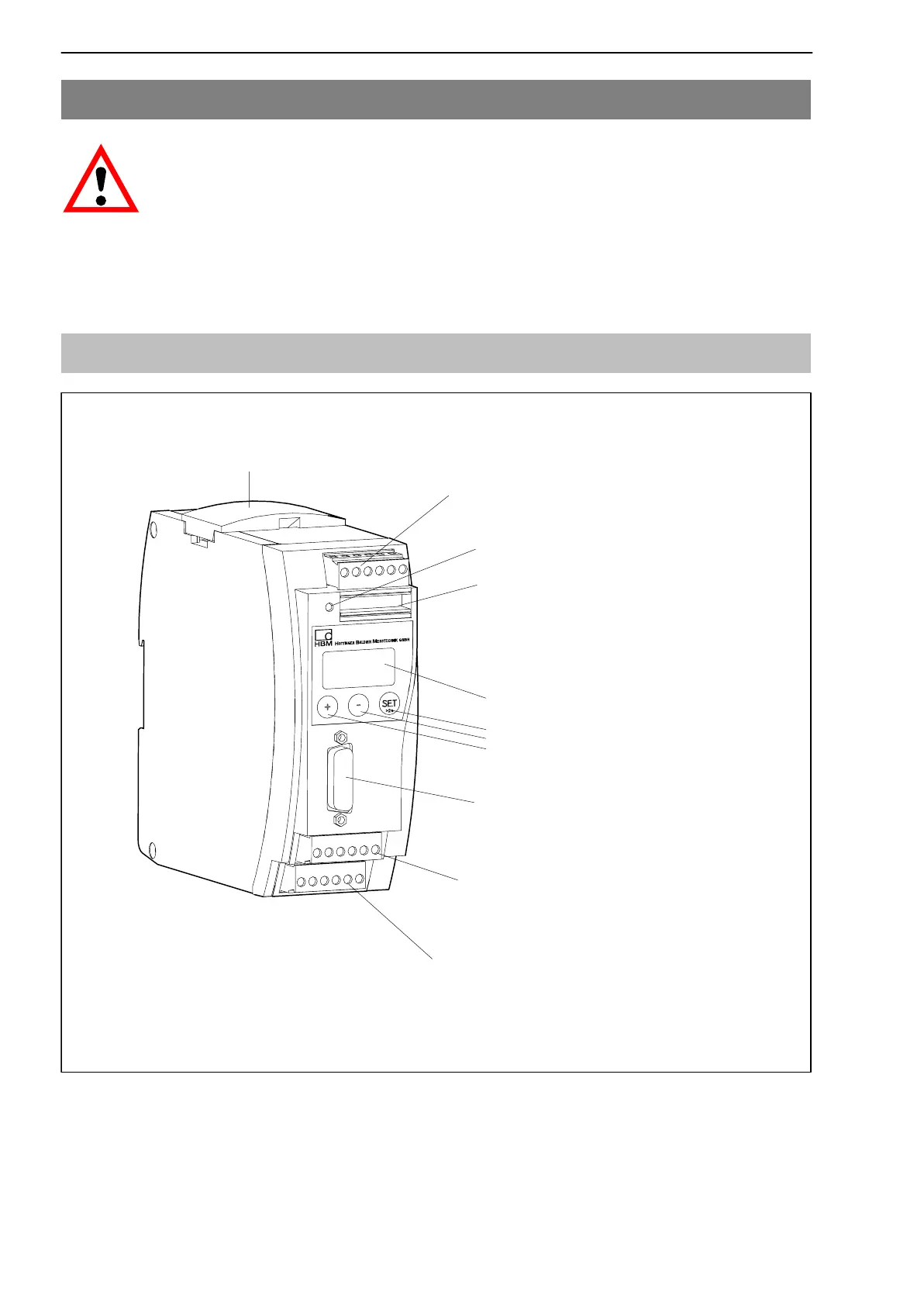

4.1 Functional overview of the MP55
Terminal plug 1:
Power supply and CAN-bus,
synchronisation
Transducer connection (15-pin sub-D
connector) including transducer
excitation
Terminal plug 3:
Potential-separated control inputs
(24 V-level), analogue output
Touch-sensitive
control keys
2-line LCD display
Terminal plug 2: (same pin
assignment as terminal plug 1)
CAN adapter for PC/laptop
connection, assigning parameters
via CAN-bus
Terminal plug 4:
Potential-separated control outputs
(24 V-level), external power supply for
control inputs
LED
Local link for CAN-bus, supply voltage and synchronisation between modules,
Terminating bus resistor
