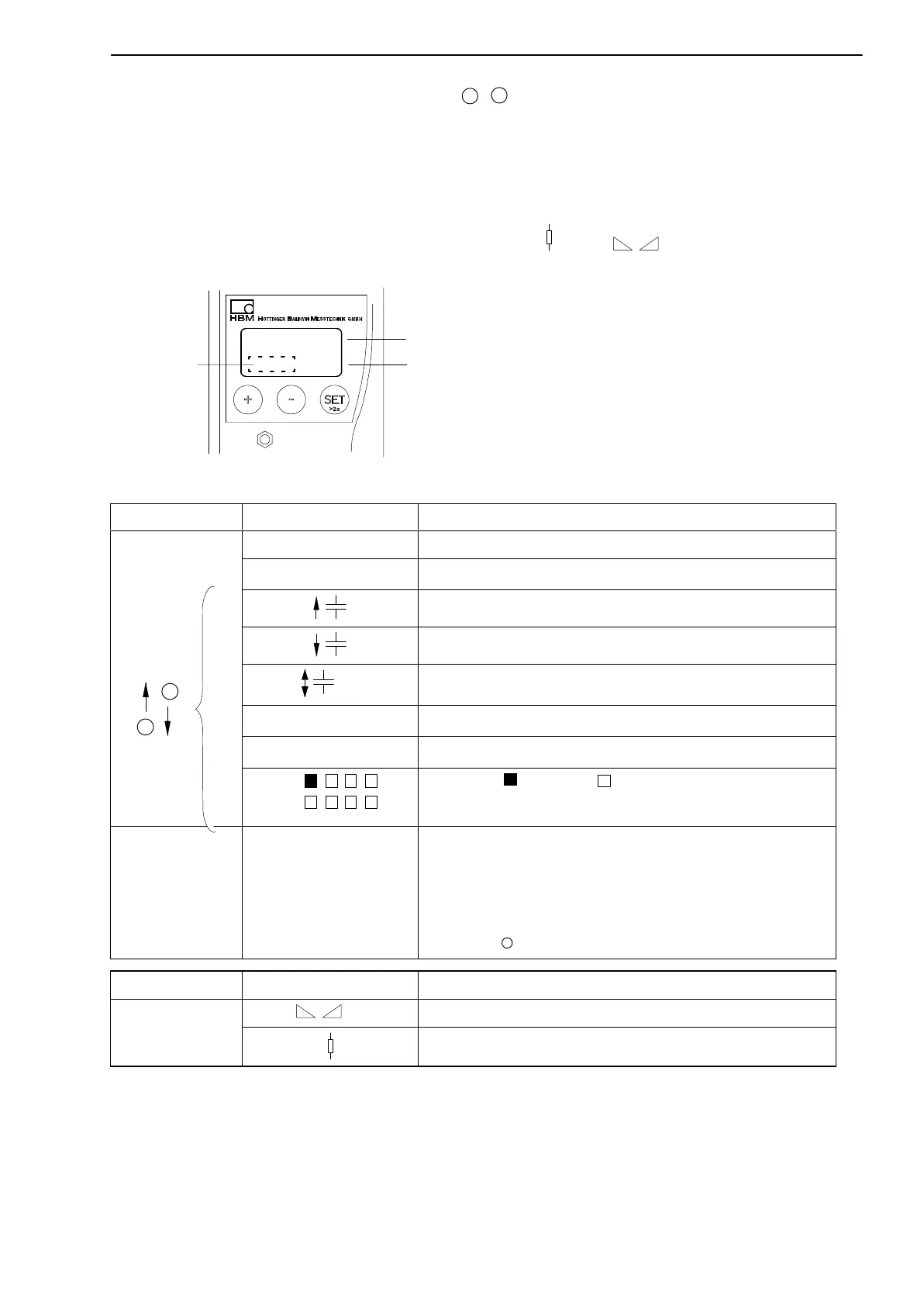

During measurement you can press
+
-
- to look at the following in the dis-
play:
1. Display mode
2. The status of input and output
3. Error types (ERROR)
The status field also displays the symbols
!
, and .
-18.0024
kg
Value
unit
Status field
Symbol in status field Display mode
No character Gross signal
>T< Net signal
Maximum peak value signal
Minimum peak value signal
Peak/peak signal
mV/V Input signal
V or mA Analogue output signal
Outp
Inpt
set, not set
Status of input and output
e.g. StoreMax
Error messages
During measurement the character ! warns of an error
in the module.
Current errors are automatically displayed one after
another in display mode ”ERROR” (accessible
through ).
*)
+
Status field
! Error occurred
Standstill status occurred
Shunt resistor on
*
)
see chapter 8 ”Error messages”, page 57
+
-
