Transducer connection
Quantum
X
I3031-14.0 HBM: public 159
Type Thermocouple material 1 (+) Thermocouple material 2 ()
J Iron Copper-nickel
K Nickel-chrome (color code green) Nickel-aluminum (color code white)
T Copper Copper-nickel
S Rhodium-platinum (10%) Platinum
I Nickel-chrome Copper-nickel
B Rhodium-platinum (30%) Rhodium-platinum (6%)
N Nickel-chrome-silicone
1)
Nickel-silicone
R Rhodium-platinum (13%) Platinum
1)
Nicrosil

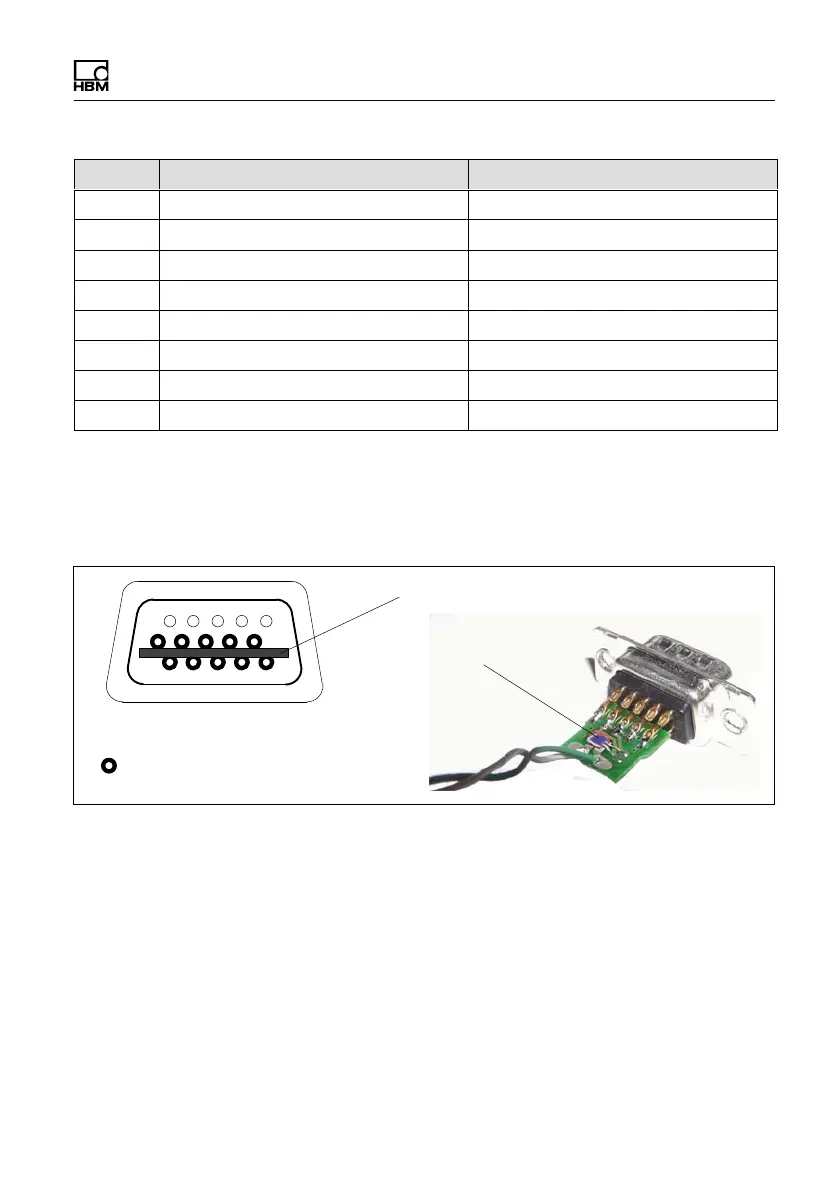

When recording temperatures with thermocouples with
amplifiers MX840B or MX440B, you must solder the
"1-THERMO-MX BOARD" board into the connector plug.
Position of board in plug
1
5
106
PT1000
PINs to be soldered
S Insert the 1-THERMO-MX BOARD in the correct posi
tion between the plug pins
