4 Modules
MX Modules A04089_07_E00_02 HBM: public 55

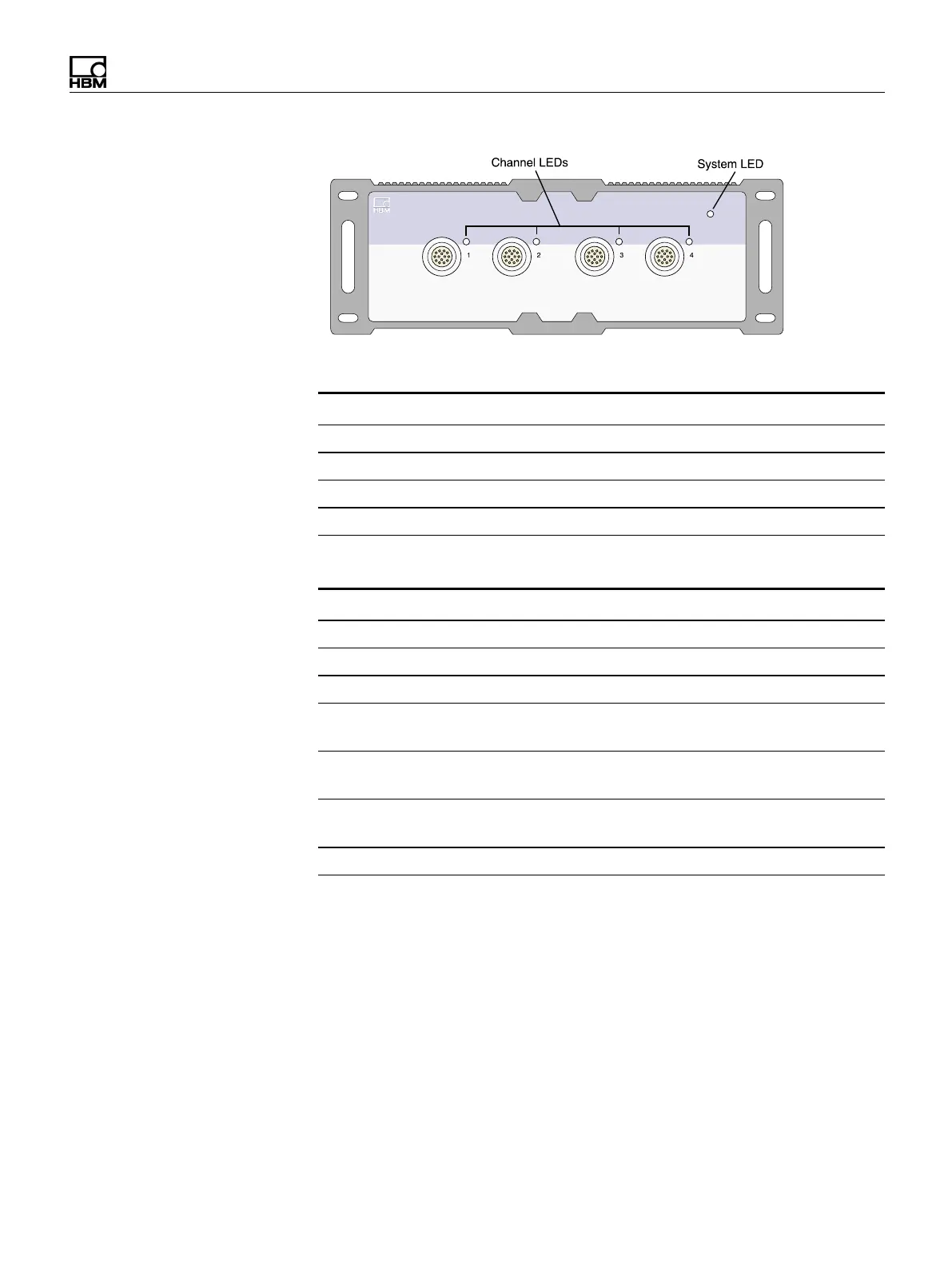

Status LED
The following table gives the descriptions for all LED states.
System LED Description
Green System is error free
Red System error
Orange System is not ready; boot procedure is running
Orange flashing System is not ready; download is active
Channel LED Description
Green System is error free
All LEDs are orange System is not ready; boot procedure is running
Orange flashing System is not ready; download is active
Orange Connection newly assigned, transducer
identification running (calibration)
Flashing green (5 seconds),
then green
TEDS data being read in
Flashing orange (5
seconds), then green
Manual configuration ongoing (ignore TEDS)
Red System error
General rule: Brief flashing, TEDS identified (green: is used, orange: is not used).
