11 Connection
11.2 Connecting the Fully Automatic Stud Feeder (VBZ) to the Stud Welding
Unit

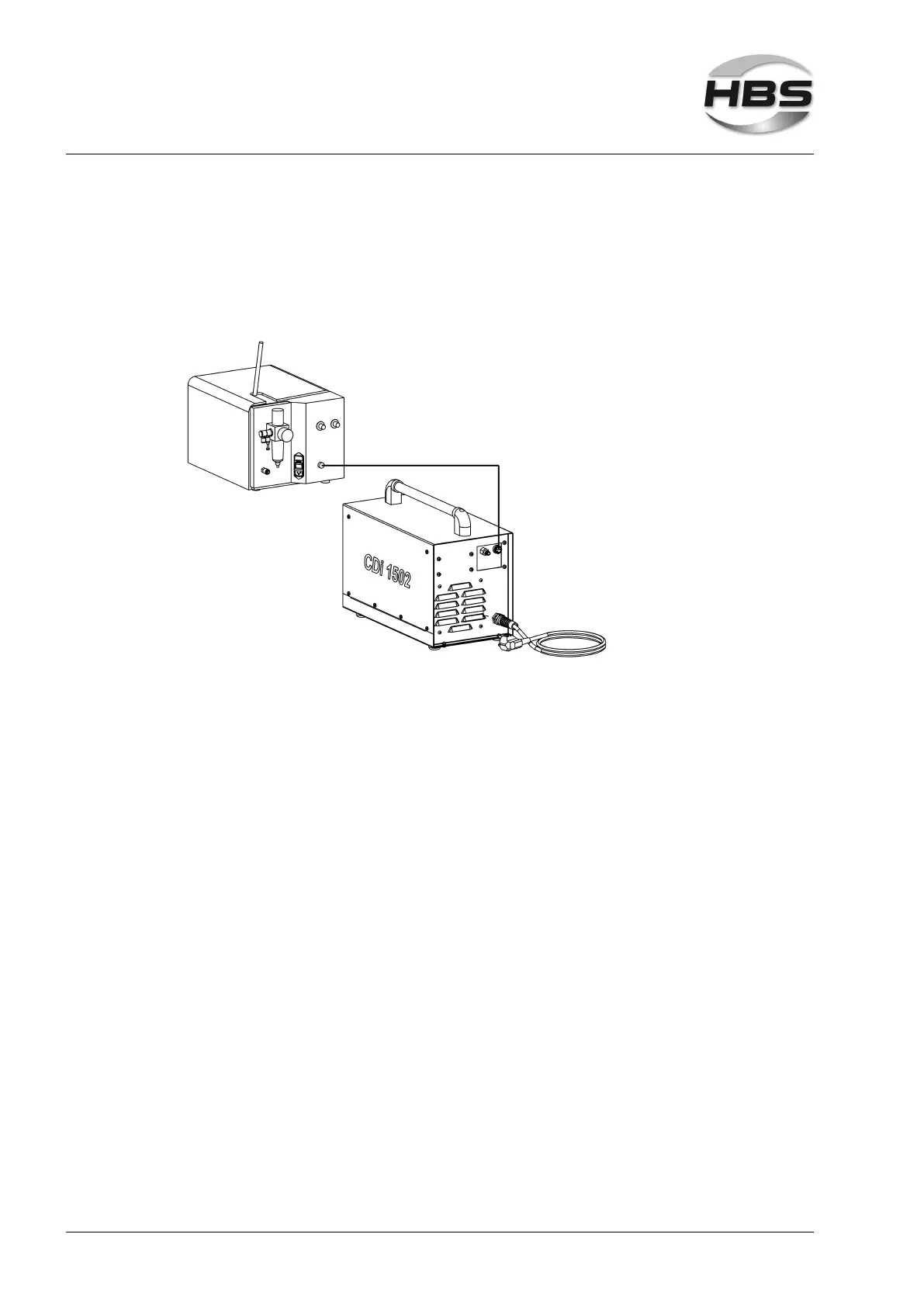

Connect the control socket of the feeding unit (front side) to the control socket of
the stud welding unit (rear side):
1
Feeding unit Stud welding unit
1 - VBZ connection 5 poles
