Mounting Originals 5
TANGO / TANGO XL – Operation 5–3
8 Mounting of Originals
Originals are mounted away from TANGO/
TANGO XL. To perform this task, we recom-
mend using the original mounting devices
- TANGOMOUNT for 150-mm drums
or
- TANGOMOUNT XL both for 150-mm
drums and for 212-mm drums
.
0 Important Notes for Mounting of
Originals

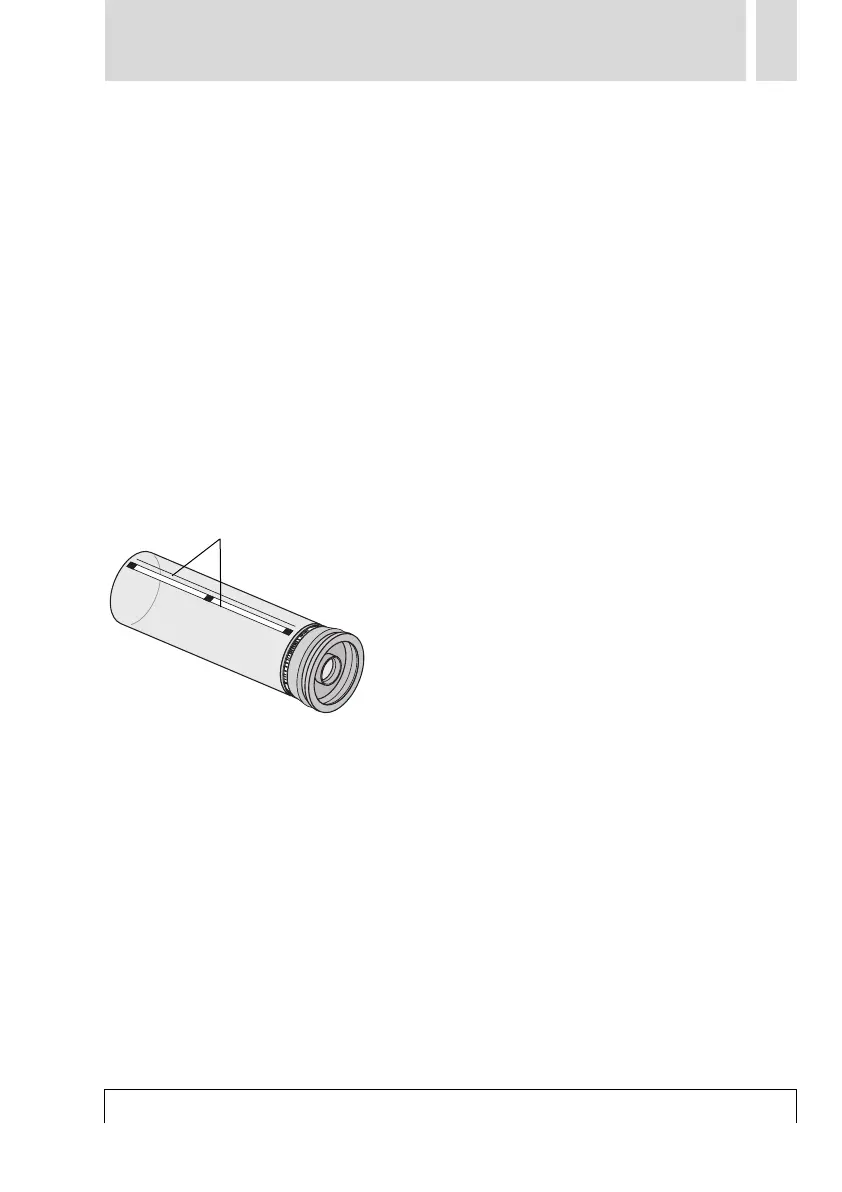

Make sure that the alignment
tracks for transparency and
reflection modes are not covered
up (space between the two
grooves). There must be no pic-
ture or adhesive strip in this area.
0 Optimum Quality
■ Original near the flange
Always mount originals which are to be
heavily enlarged near the flange of the
scanning drum.
■ Distribution of originals
Originals must be evenly distributed over
the circumference of the scanning drum to
keep balance errors in the scanning drum
to a minimum.
When scanning reflection transparencies
which do not occupy the whole drum cir-
cumference, the remainder of the drum
should have a similar material mounted to
it as a counterbalance.
2
Gap between
the 2 grooves
Evenly distribute originals
Counterbalance
