0 Mounting of Reflection
Transparencies using Film
■ Clean the original using an antistatic
cloth or an ion blower.
■ Fix the film to an light table, either on the
edge of the glass plate or at the upper
edge.
■ Transfer the reference line using a ruler
and a film marker to the film.
■ Align the original with the rear side
upwards (motif side lying on the film) as
specified or according to layout lines.
■ Stick the film to the drum using an adhe-
sive strip parallel to the drum groove.
If, in the case of delicate origi-
nals, attachment using adhesive
strips is not possible, you must
slide the original under the film
and align it according to the ref-
erence lines after having already
fixed the film to the drum by its
upper edge.

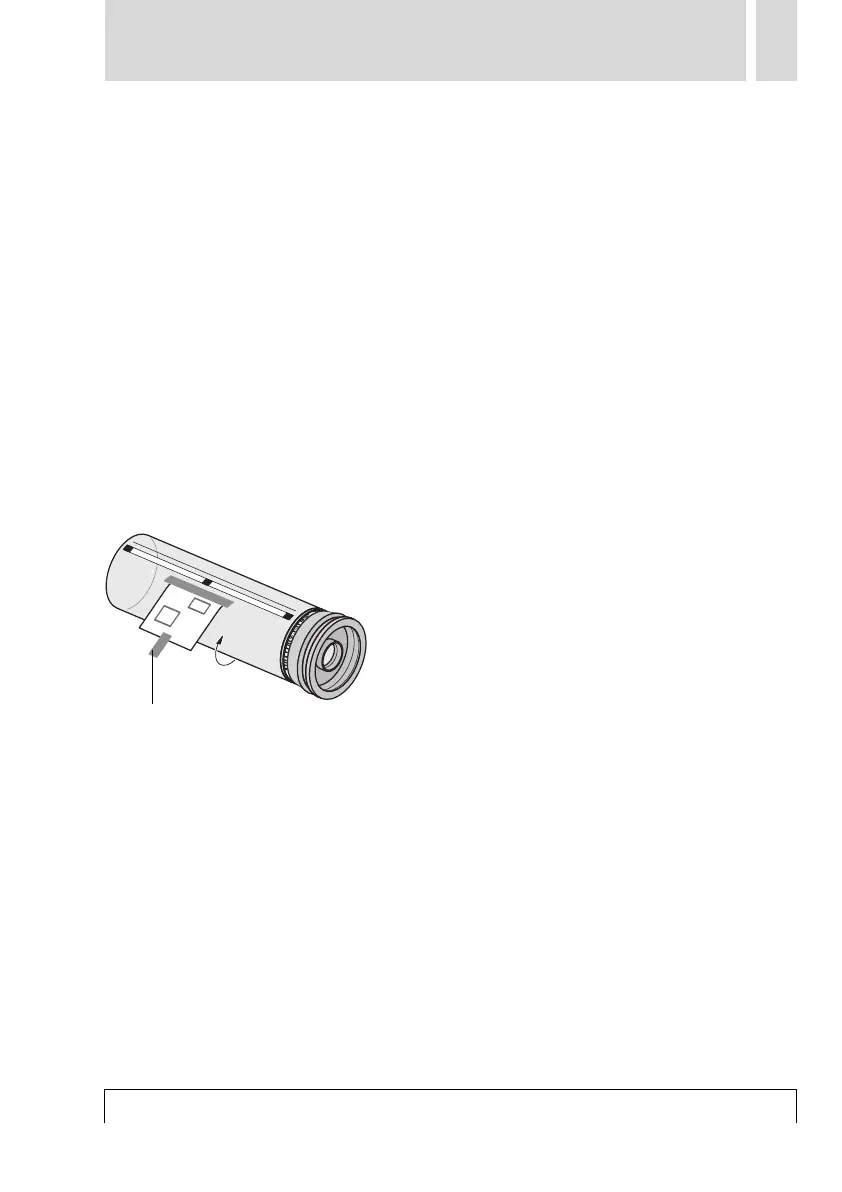

■ Using the auxiliary adhesive strip, pull
the film over the scanning drum and the
original, whilst rotating the drum with
the other hand.
■ Attach the film all round the lower edge
and both sides using adhesive strips.
Auxiliary adhesive strip
2
