Unpacking and Setting up
The scanner should be brought as closely as
possible to the intended installation site on
the pallet.
Note:
Setting up TANGO/TANGO XL requires a
space of approx. 3 m in length and 2.20 m
in height to allow for pallet, ramp and the
area of the unit itself.
Uneven Floors
In the case of uneven floors, we recommend
that you:
have the unit set up by the service
department
or
place a 1 cm thick aluminum plate,
62x62 cm under the unit. You will also
need a ramp for the aluminum plate.
Adjust the plate so that it is flat and
cannot wobble horizontally.
Remove accessories from the pallet
Firstly, remove the accessories (e. g. scan-
ning drum, cardboard covers) from the pal-
let.

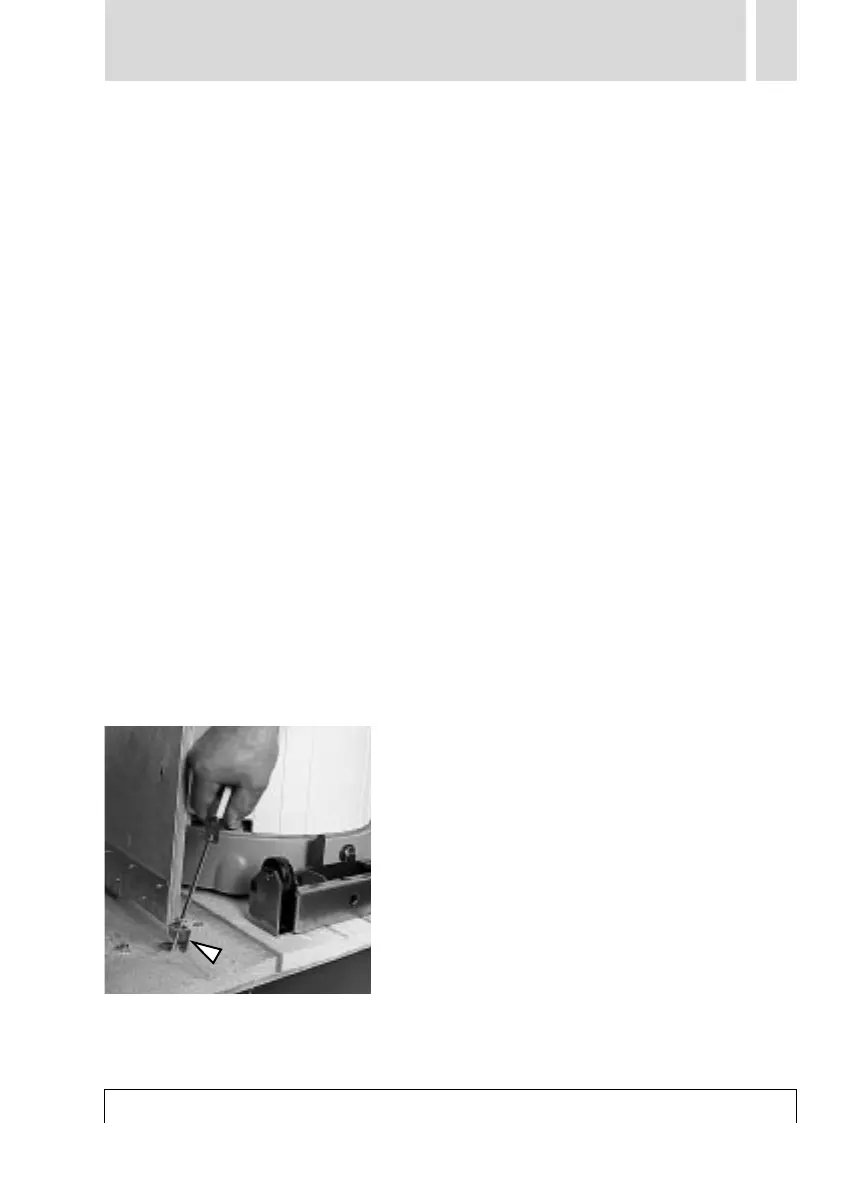

Using a Phillips screwdriver, remove the
screws securing the ramp. Then cut
through the retaining strap used as an
additional restraint.
The ramp will be needed later, so you
should place it near to the pallet for the
time being.
2
Space of approx. 3 m in length
