Assembly Assembly
30 31

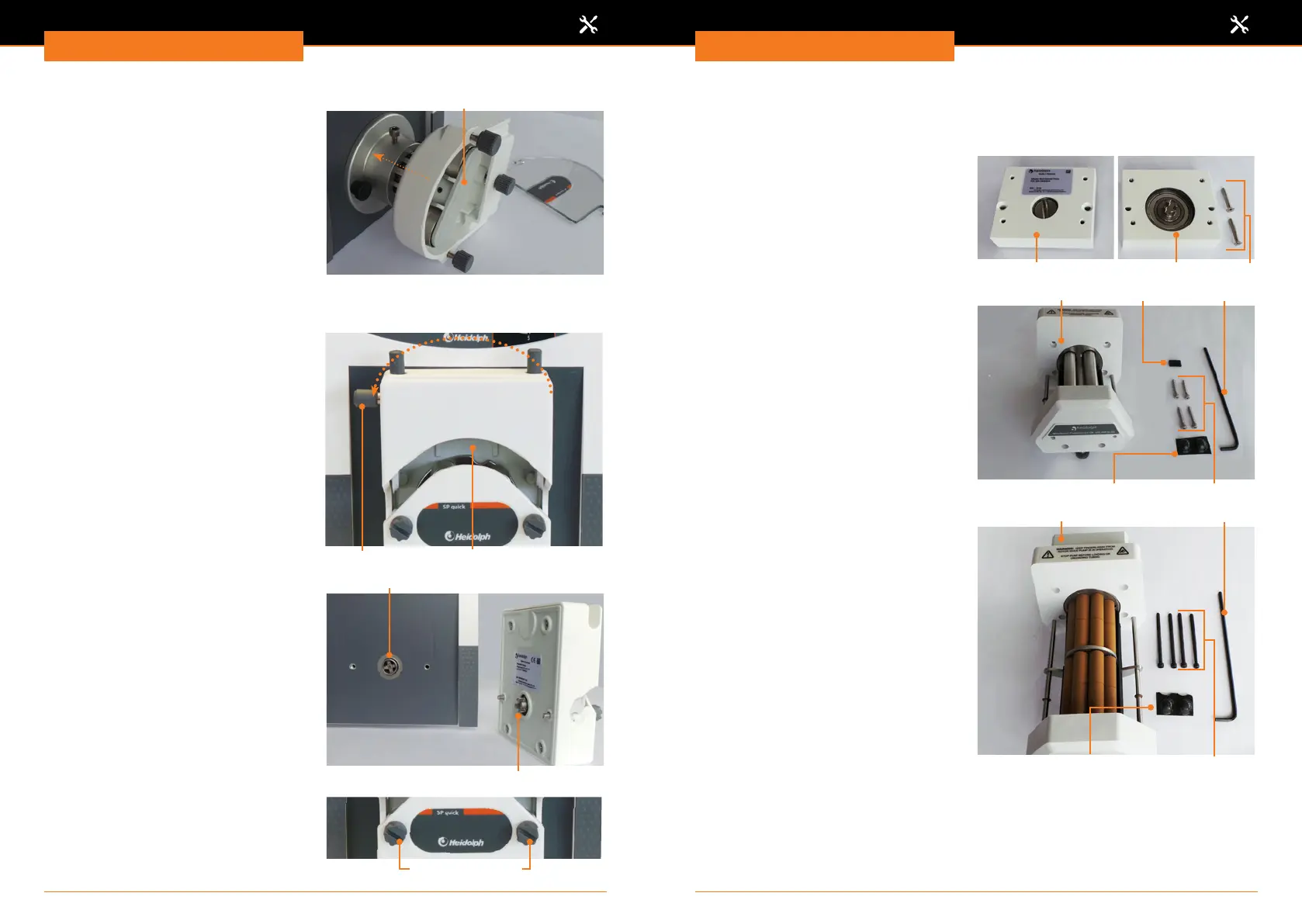

➜ Push pump head with coupling heading
into ange, till ange and pump head
are aligned.
➜ Eventually turn rotor till couplings
interlock.
➜ Position pump head so it ts to your
set-up of vessels and xate with allen
screws.
➜ Mount protective shield.
Rotor
Single-channel pump head SP quick
➜ Move clamping lever from right to left.
✓ Tube bed of pump head is open.
Clamping lever
Tube bed open
➜ Insert coupling of pump head into
coupling of pump drive.
➜ Eventually turn rotor till couplings
interlock.
Coupling pump drive
Coupling pump head
➜ Hand-tighten pump head with the
2 knurled screws (tighten up with a
screwdriver or coin if necessary).
Knurled screws
Multi-channel pump heads
Components
Adaptor:
▪ 1x Adaptor
▪ 2x Cross headed screws
Adaptor
Back side ScrewsFront side
Pump head C 4, C 8
▪ 1x Pump head
▪ 1x Spare plastic sleeve for metal bar
▪ 4x Allen screws
▪ 1x Allen key
▪ 2x Spare feet
Pump head C 8
Allen screw
Allen key Plastic sleeve
Spare feet
Pump head C 12
▪ 1x Pump head
▪ 4x Allen screws
▪ 1x Allen key
▪ 2x Spare feet
Pump head C 12
Allen screw
Allen key
Spare feet
