✓ Tube may not move during operation.
➜ To adjust clamping stop rotation, switch off device and open tube bed.
➜ Turn clamping screws clockwise or counterclockwise to increase or decrease clamping
pressure.
➜ Close tube bed and repeat the test run.
Caution:
Possible tube damage
Do not force closing of tube bed. Overtightening leads to damaged
tube.
Open clamping screws completely before closing tube bed. Adjust
clamping gradually.
Check correct mounting by repeated test runs if necessary.
Mount tubes: Multi-channel pump heads
Multi-channel pump heads require cassettes to mount tubes. You will nd the right sizes
of cassettes in our general catalogue or at the end of this manual.
Warning:
Risk of crushing!
While mounting and demounting cassettes you can crush your
ngers, if rotation starts accidentally.
Always switch device OFF at main switch before mounting cassettes.
Caution:
Possible damage of device
Multi-channel pump heads require a certain combination of cassettes
and tubes. Other combinations lead to premature wear or to
malfunctions.
Only use combinations of cassettes and tubes tting your Multi-
channel pump head as laid out in this manual (see chapter
„Technical data, Table tubes”).
All cassettes operate in both directions. However, we recommend to
mount cassettes alternating. This way the clamping can be adjusted
more easily.
Cassettes and tubes: „Cassette small”
„Cassette small” is suitable for multi-channel pump heads C 4 and
C 12 only!
Caution:
Possible damage of device
Stopper on tubes with small inner diameter of 0.8 and 1-7 prevent
tubes from moving. Operating tubes without stoppers will lead to
malfunction and exclusion from warranty!
Always use stopper tubes when operating these small tubes.
„Cassette small” is suitable for two-stopper tubes only!

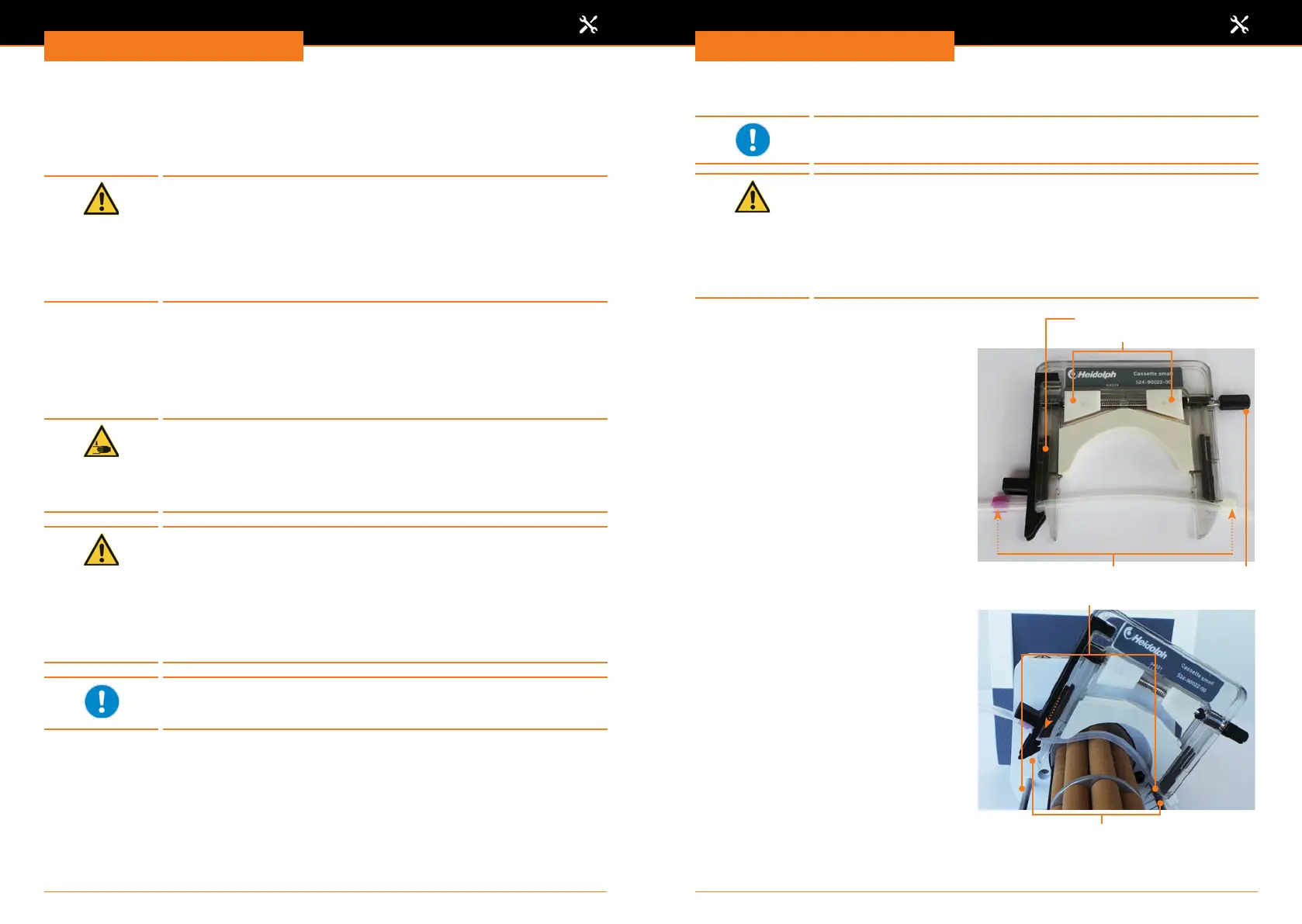

Mount tube
➜ Turn adjustment knob for tube
pressure counterclockwise till tube bed
is opened to maximum.
✓ Wedges are pushed out.
➜ Insert two-stopper tube into cassette
from below.
➜ Stoppers are placed outside of
cassette.
➜ Pull tube into cassette till stoppers are
hold by the side frame.
Adjustment knob
Stopper
Wedges
Clamping side
Mount cassette
➜ Click cassette hook onto support rod
while holding onto tube.
➜ Move cassette downwards to click in
opposite hook.
✓ Tube is positioned between rollers and
cassette.
➜ Push cassette to pump drive.
Hooks
Support rods
