Henkelman Jumbo Plus - 2. Description of the Machine

10
USER MANUAL
Jumbo Version: JUM-EN-UL-0 23-03-15
2. DESCRIPTION OF THE MACHINE
FUNCTION
 This chapter provides an overview of the main components and functions
If detailed information is available in this guide, you will be redirected to the
specific sections
 The performance of your machine may differ from the figure below
The figure below shows the main components of the system:

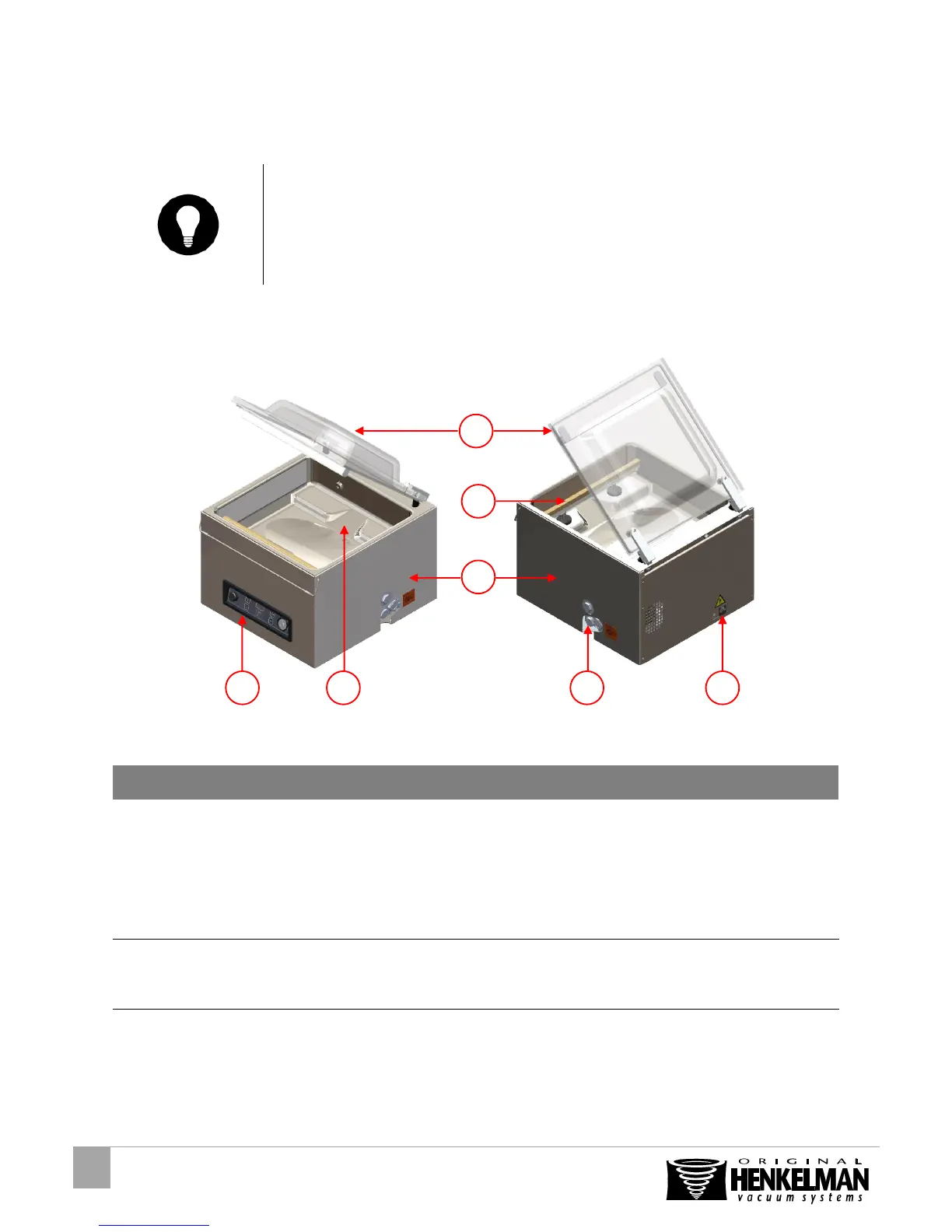

Figure 1: Overview of the main components
NO.
PART
DESCRIPTION
SECTION
1
Lid
 The function of the lid is to close the chamber
during the vacuum cycle
 The lid has a lid gasket fitted, which makes sure the
machine does not leak during the vacuum cycle
 In the lid, silicone holder(s) are mounted as the
opposite of the sealing bar(s)
6.8
2.2, 6.7
2
Chamber
 The products to be packed will be placed on the
worktable / in the chamber with the opening of the
vacuum seal bag on the seal position
3
Seal bar
 In the chamber, depending on the version, 1 or 2
seal bars are mounted. With this/these the vacuum
bag is closed
2.2, 6.6
7
6
5
4
3
2
1
