Henkelman Jumbo Plus - Figure 3: Overview of the Pump (Filter Cover Removed)

USER MANUAL
15
Jumbo Version: JUM-EN-UL-0 23-03-15
16 m
3

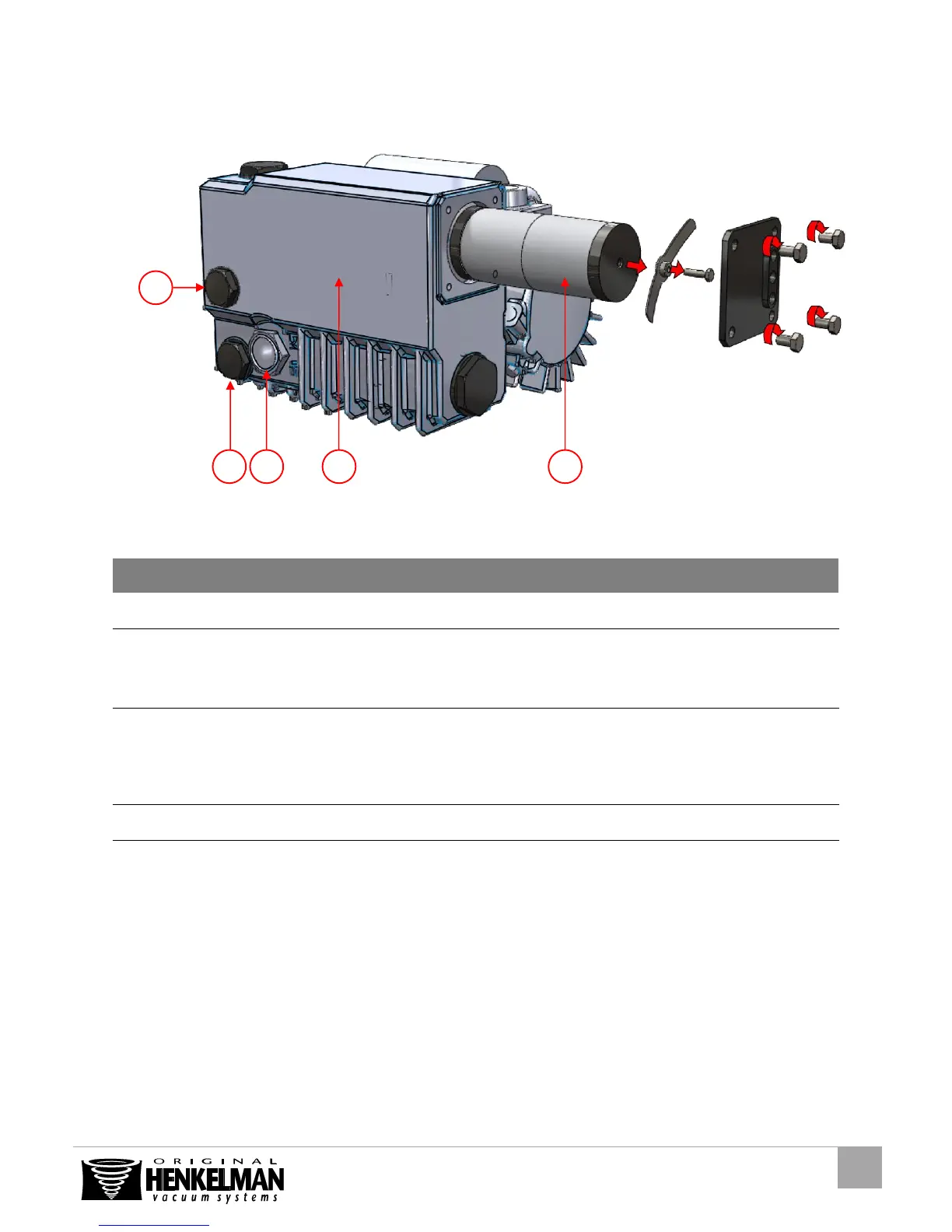

Figure 3: Overview of the pump (filter cover removed)
NO.
PART
DESCRIPTION
SECTION
1
Vacuum pump
 Creates the vacuum during the process
6.1
2
Exhaust filter
 Filters the exhaust air and absorbs oil vapors
 Refer to the indicated section for detailed information
with regards to maintenance
6.1
3
Oil sight glass
 The oil sight glass indicates the maximum and
minimum oil level in the vacuum pump
 The oil sight glass is visible when te cover of the
machine is in place
6.1
4
Oil drain plug
 To drain the oil
5
Oil filler plug
 To fill the pump with oil
5
4
3
2
1
