6.5. Replacing the exhaust filter (maintenance of vacuum pump)
EXPLANATION
1. The exhaust filter prevents oil vapors to be emitted by the exhaust air from the
vacuum pump
2. If the filter becomes saturated, it is no longer possible to reach maximum vacuum
3. Replace the filter in case of vacuum problems, or in accordance with the
maintenance diagram of Chapter 6.1
3-4 m
3
pump

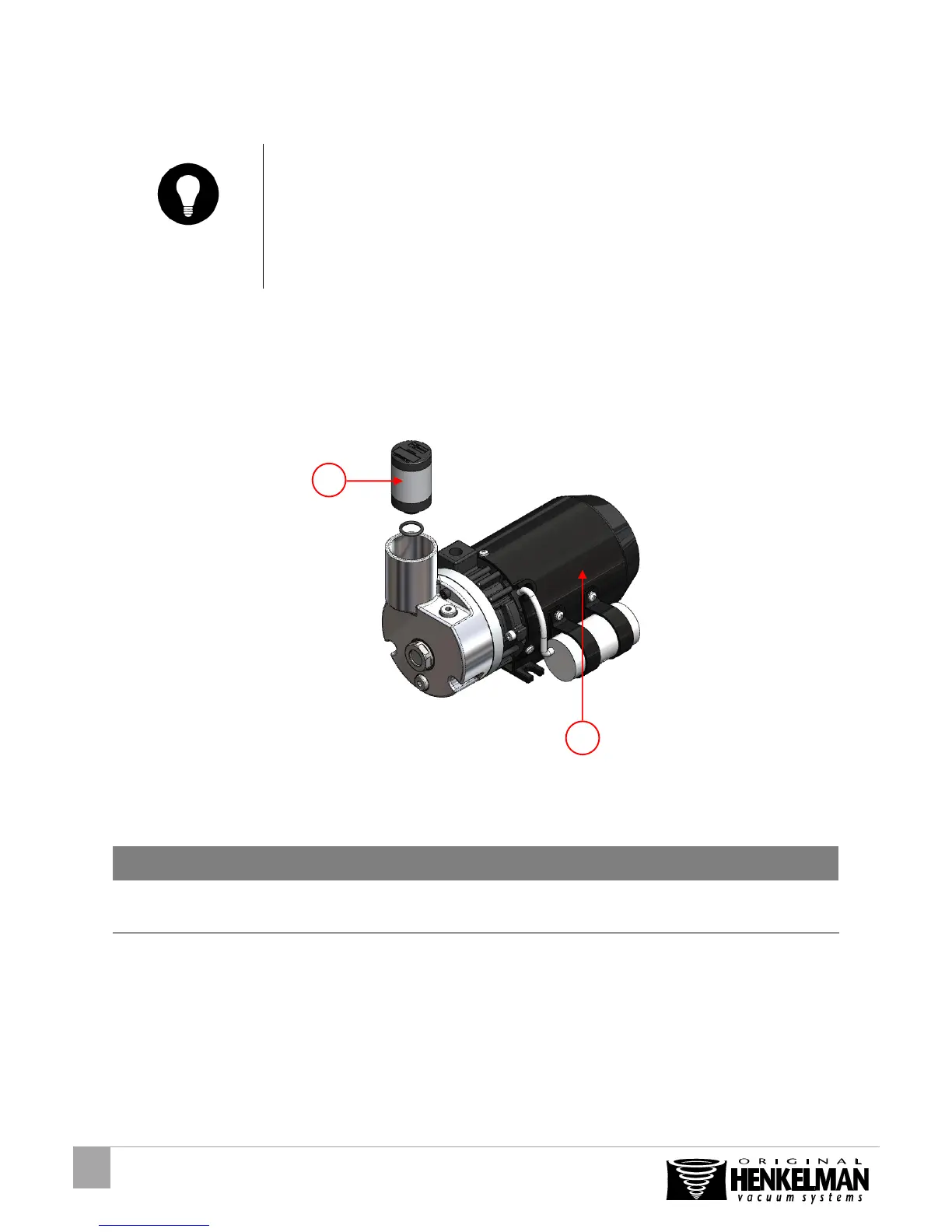

Figure 9: Replacing the exhaust filter on a 3-4 m
3
pump
NO.
WHAT TO DO
ACTION
RESULT
1
Remove the exhaust
filter
 Screw the exhaust filter (Figure 9:1) out of
the vacuum pump (Figure 9:2)
2
Install the new filter
 Screw the new filter in the vacuum pump
 Make sure the O-ring is properly placed
on the filter inlet
2
1
