Henkelman Jumbo Plus - Figure 10: Replacing the Exhaust Filter on a 8 M 3 Pomp

USER MANUAL
33
Jumbo Version: JUM-EN-UL-0 23-03-15
8 m
3
pump

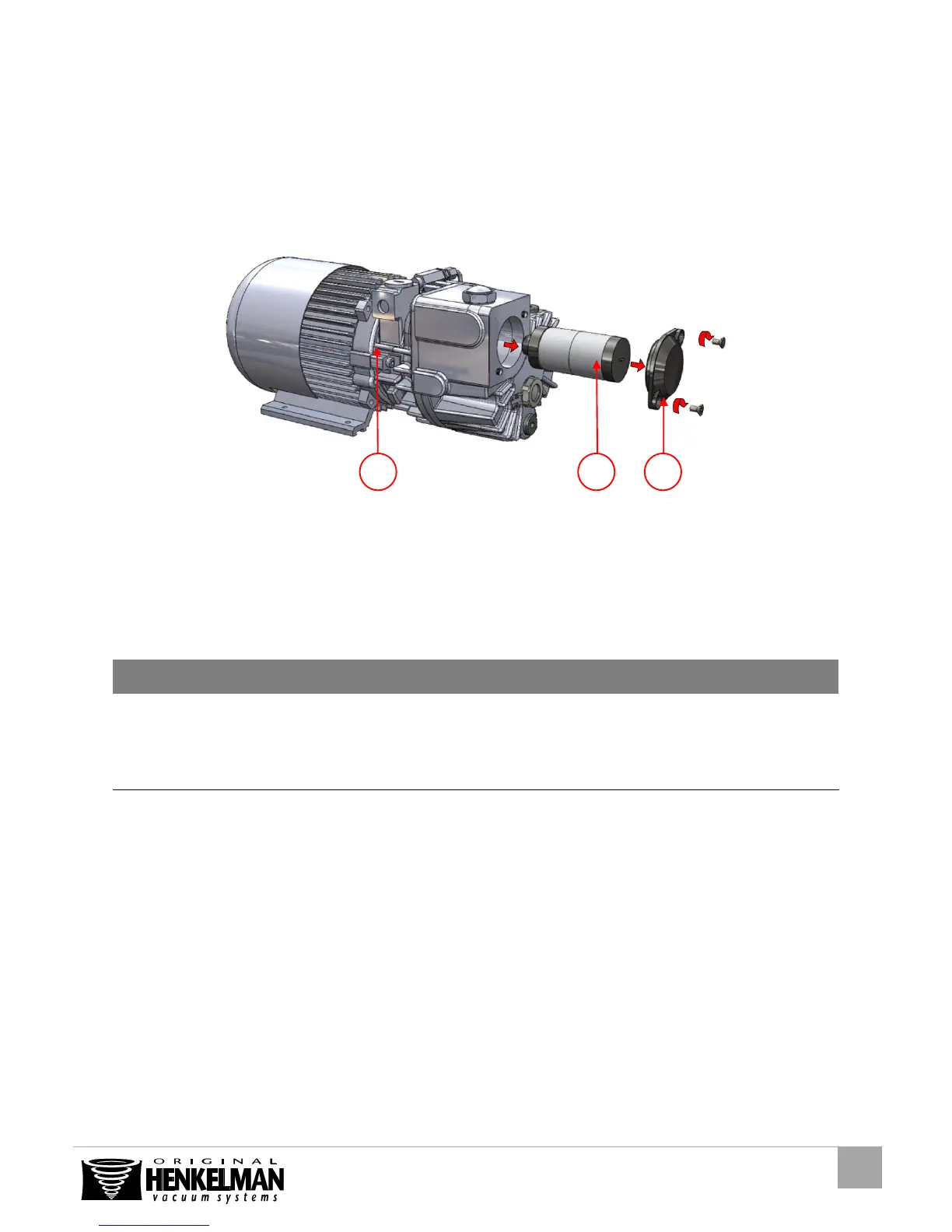

Figure 10: Replacing the exhaust filter on a 8m
3
pomp
NO.
WHAT TO DO
ACTION
RESULT
1
Remove the exhaust
filter
 Remove the filter cover (Figure 10:3) from
the vacuum pump (Figure 10:1)
 Screw the old filter (Figure 10:2) out of the
vacuum pump
2
Install the new filter
 Screw the new filter in the vacuum pump
 Make sure the O-ring is properly placed
on the filter inlet
 Install the filter cover
3
2
1
