2.5. Single Program Digital Control (SPDC)
FUNCTION
 The machine can be operated
 The program can be modified
 See chapter 0 for instructions on operation and programming

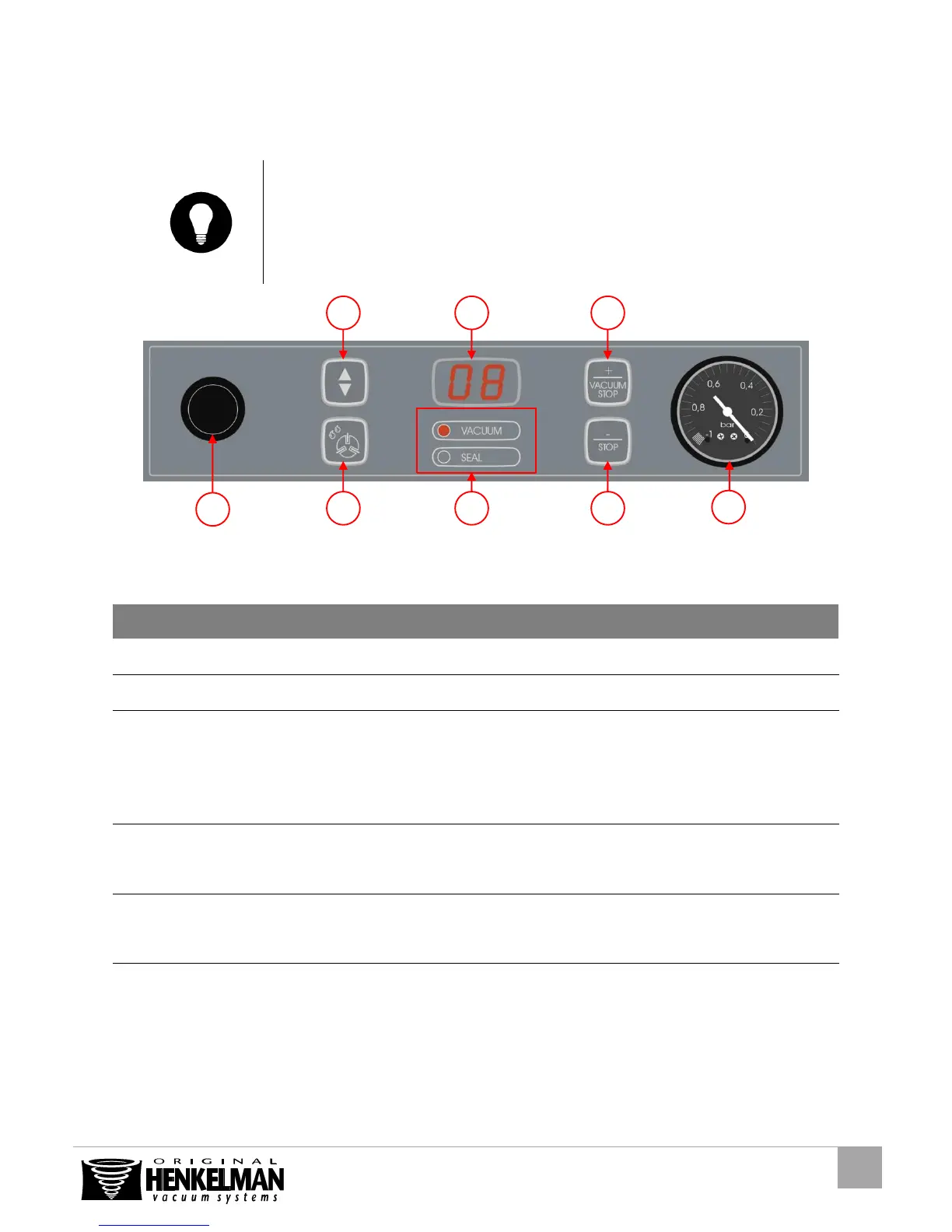

Figure 5: Control panel Single Program Digital Control(SPDC)
NO.
ELEMENT
EXPLANATION
1
On / Off button
 This button turns the machine on/off
2
Cursor key
 Navigates you through the functions shown in the display 4/5
3
”Oil cleaning program”
key
 Operate the key to activate the pump cleaning program. This
removes moisture from the oil in the vacuum pump. Moisture
can be absorbed by the oil when the pump is only running
short cycles or when you pack products containing moisture
 See 6.3 for instructions
4
Display parameter
 Displays the current value of the active function during the
program cycle or the set value of the selected function when
the machine is idle
5
Function display
 The LED light for the function illuminates when the function is
active during the program cycle or when the function is
selected in the programming mode
6
“-/stop” key
 The 'stop' key can be used during a packing cycle to interrupt
the full cycle. All functions are cancelled, and the cycle will be
terminated
 In the programming mode this key decreases the value of the
selected parameter
