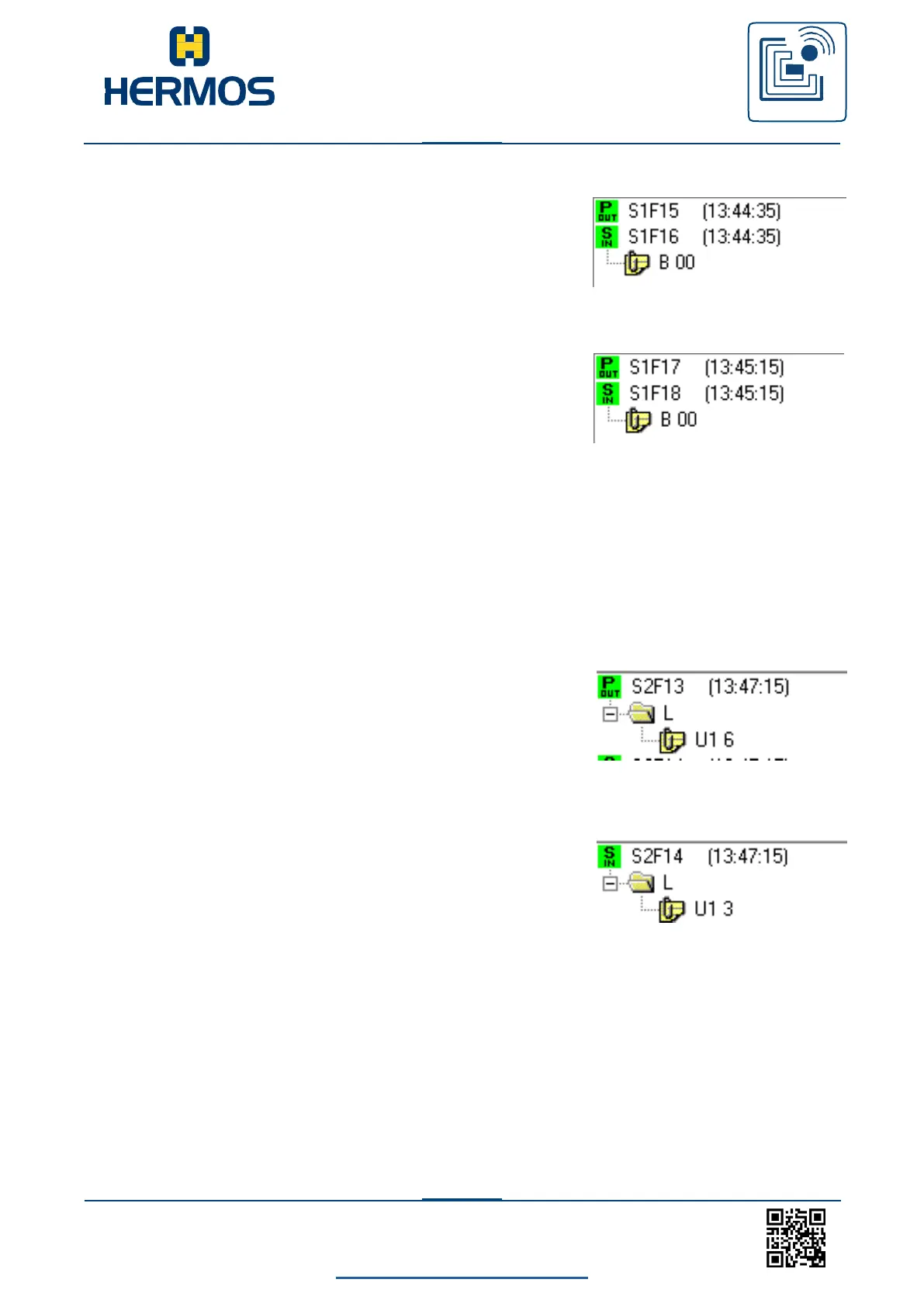

S1F16: OFFLINE ACKNOWLEDGE (reading device -> host)
Acknowledgement.
S1F16
<B[1] OFLACK>.
S1F17: REQUEST ON_LINE (host -> reading device, reply)
The reading device contains a request to change the communication state to „online“. S1F17 W
(header only, no additional elements)
S1F18: ONLINE ACKNOWLEDGE (reading device -> host)
Acknowledgement
S1F18
<B[1] ONLACK>
11.3.2 Stream 2 (system control)
S2F0: ABORT TRANSACTION (reading device <-> host)
This message is used instead of an expected reply to cancel an action. S2F0 (header only, no
additional elements)
S2F13: EQUIPMENT CONSTANT REQUEST (host -> reading device, reply)
The host requests an attribute (parameter) from the reading device.
S2F13 W
<L[1]
<U1[1] ECID>
>
S2F14: EQUIPMENT CONSTANT DATA (reading device -> host)
The reading device transmits the requested attribute (parameter) to the host.
S2F14
<L[1]
>
<U1[1] ECV>
