HighLine NT78 - Lift the Hitch with the Jack; Connect the Hitch to the Tractor Drawbar; Connect the Safety Chain to the Tractor; Rotate the Hitch Jack into the Storage Position

Section 2 - Transporting the Rockpicker

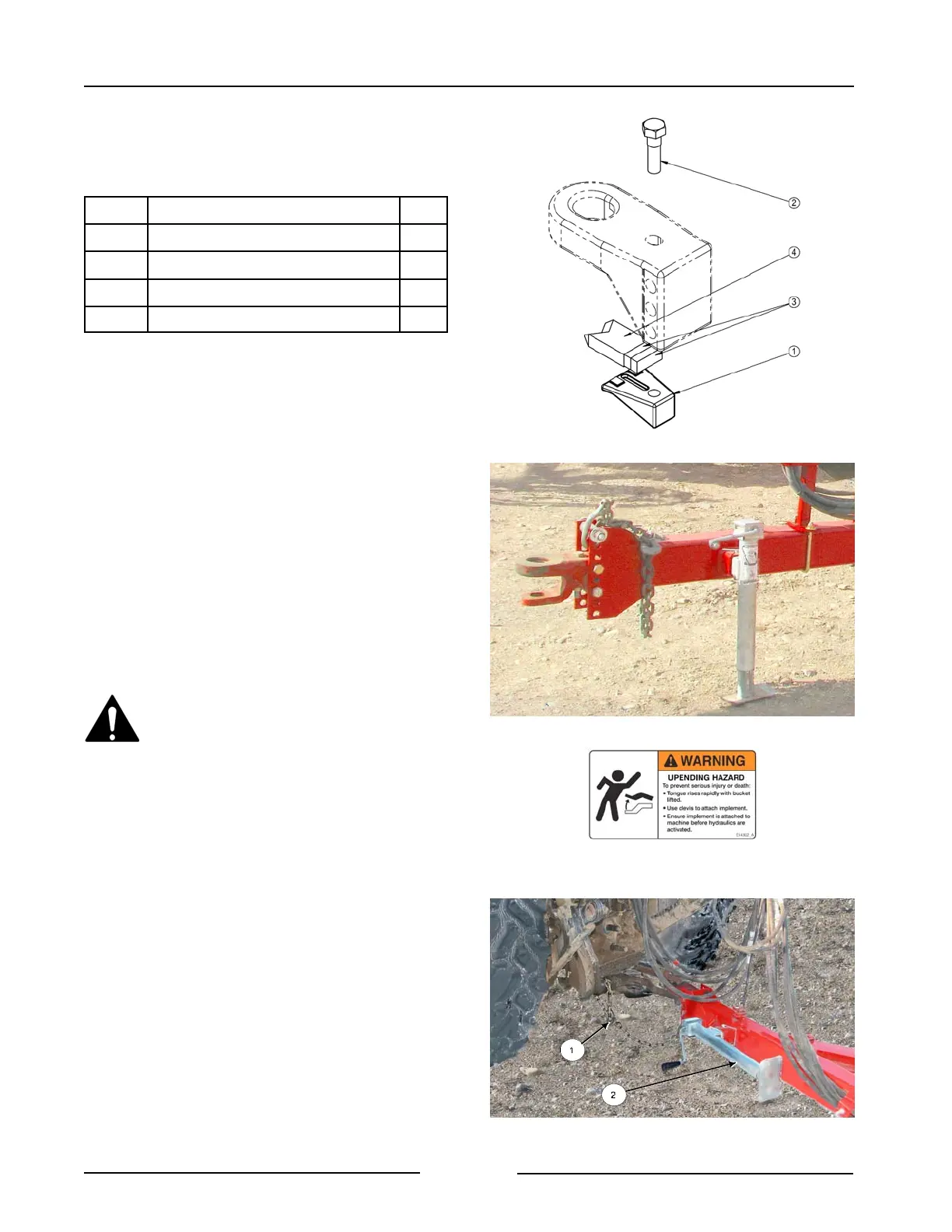

3 in 1 Hitch
42890_A
- Install the 3 in 1 hitch using the
following components if not using the
clevis hitch.
ITEM DESCRIPTION QTY
1 PLATE,TOP,CAST 1
2 BOLT,HEX,3/4X2-1/2,UNC,GR5,ZP 1
3 CUSHION,POLYURETHANE,90 2
4 BLOCK,V,CAST,80-55-06 1
2. Lift the hitch with the jack
- The hitch is heavy. Do not attempt to
lift the hitch without using the jack.
3. Connect the hitch to the tractor drawbar.
- Use a 1 1/4" (31.75 mm) pin.
- Use a clevis to attach the hitch.
Do not disconnect the hitch when
the bucket is lifted. There is an
upending hazard at the hitch
when the bucket is lifted.
4. Connect the safety chain (1) to the
tractor.
5. Rotate the hitch jack (2) into the storage
position.
- Remove all weight from the jack.
- Remove the locking pin holding the
jack onto the hitch.
- Rotate the jack to the storage position.
- Fasten the jack in place with the lock
pin.
Connect to Tractor. Jack in Storage Position.
214003C
Lift the Hitch with the Jack
216224
Page 2-2
