Section 2 - Transporting the Rockpicker
Raise the Pickup Apron
217210C

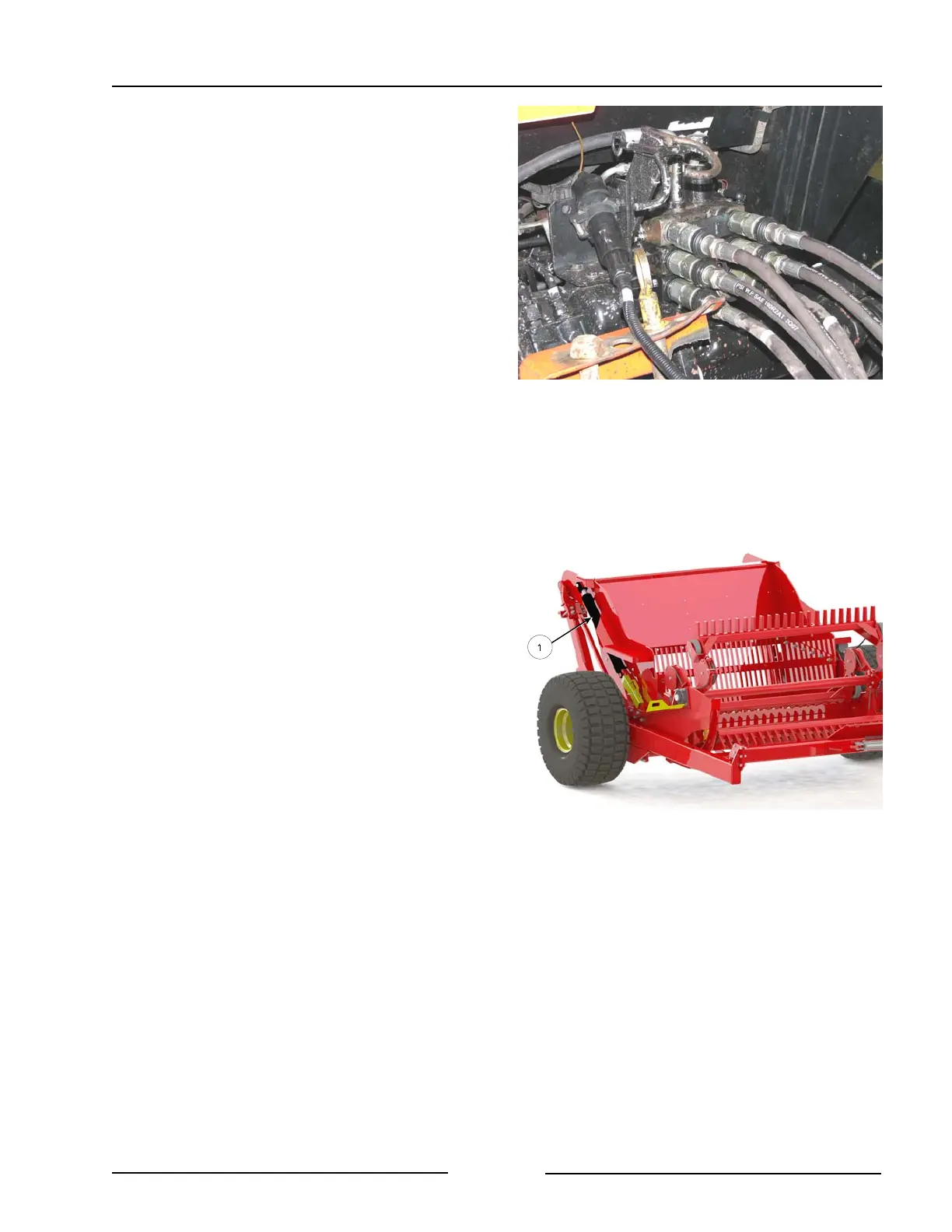

6. Connect the hydraulic hoses.
- One set of hydraulic hoses is used for
adjusting the picker’s collecting apron
height and dumping the bucket when
full of rocks.
- The second set of hoses is used to
drive the rock picker reel motor.
- The third set is for the hitch hydraulic
cylinder.
7. Connect the electrical connection for the
signal lights.
8. Fully raise the pickup apron.
- Fully retract the bucket dump
cylinders (1) to raise the apron.
- As the cylinders retract, they will raise
the apron from the ground surface.
Connect Hydraulic Hoses
108008
Page 2-3
