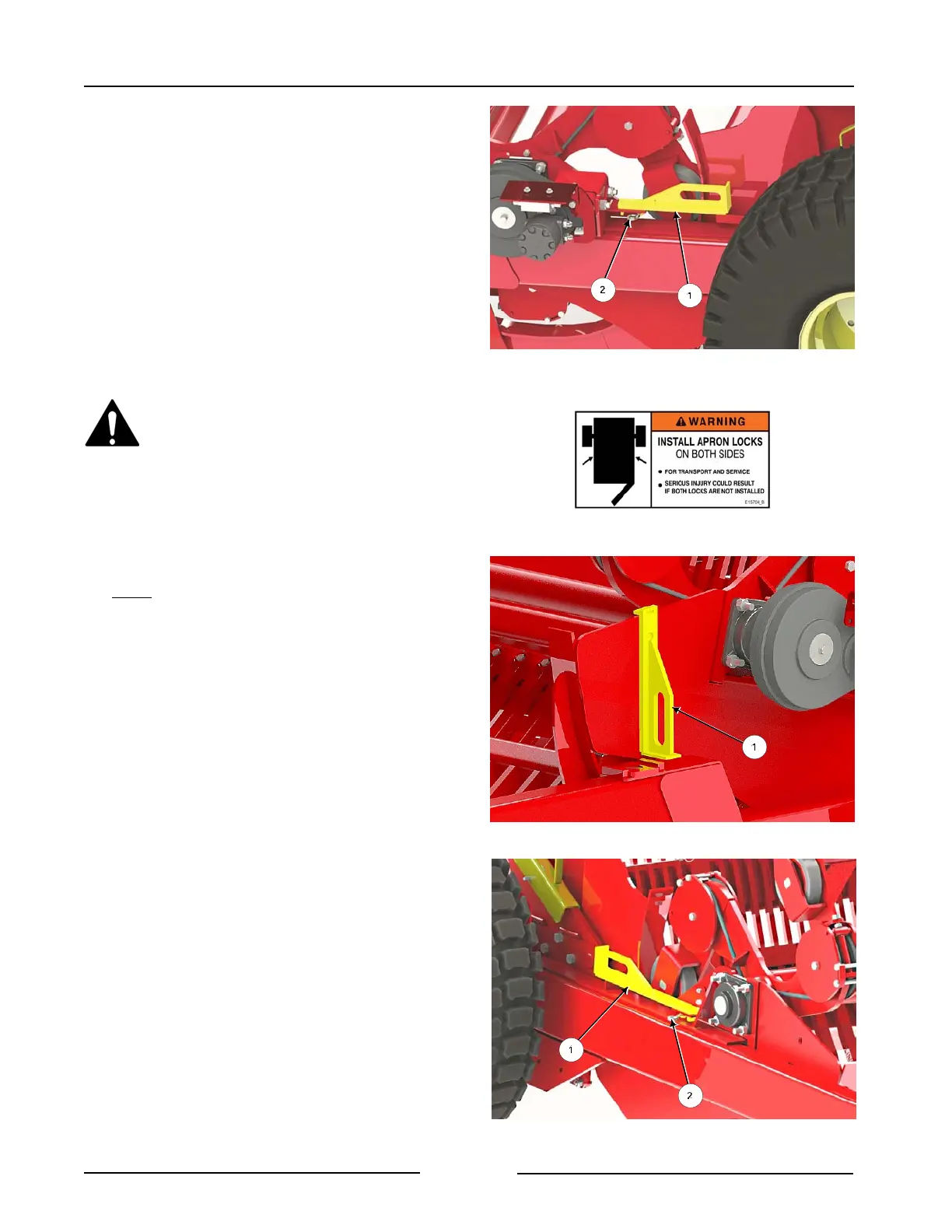

Section 2 - Transporting the Rockpicker
Remove the Left Apron Lock
216234C
Install Apron Lock - Left Side
216239C
Remove the Right Apron Lock
216235C
9. Remove the left apron lock (1) from the
storage position on the left side of the
frame behind the motor.
- Remove the clip pin (2).
10. Install the apron lock (1) on the left
side of the apron.
Install the apron locks on both
sides when transporting or when
servicing the rockpicker. Serious
injury from the apron lowering
could result if both locks are not
installed.
Note
: Do not lower the apron or raise the
bucket when the apron transport
locks are on the apron. Severe
damage will occur to the machine.
- Place the pin of the lock into the
hole of the apron.
- Fasten with the clip pin.
11. Remove the right apron lock (1) from
the storage position on the right side
of the frame behind the motor.
- Remove the clip pin (2).
Page 2-4
