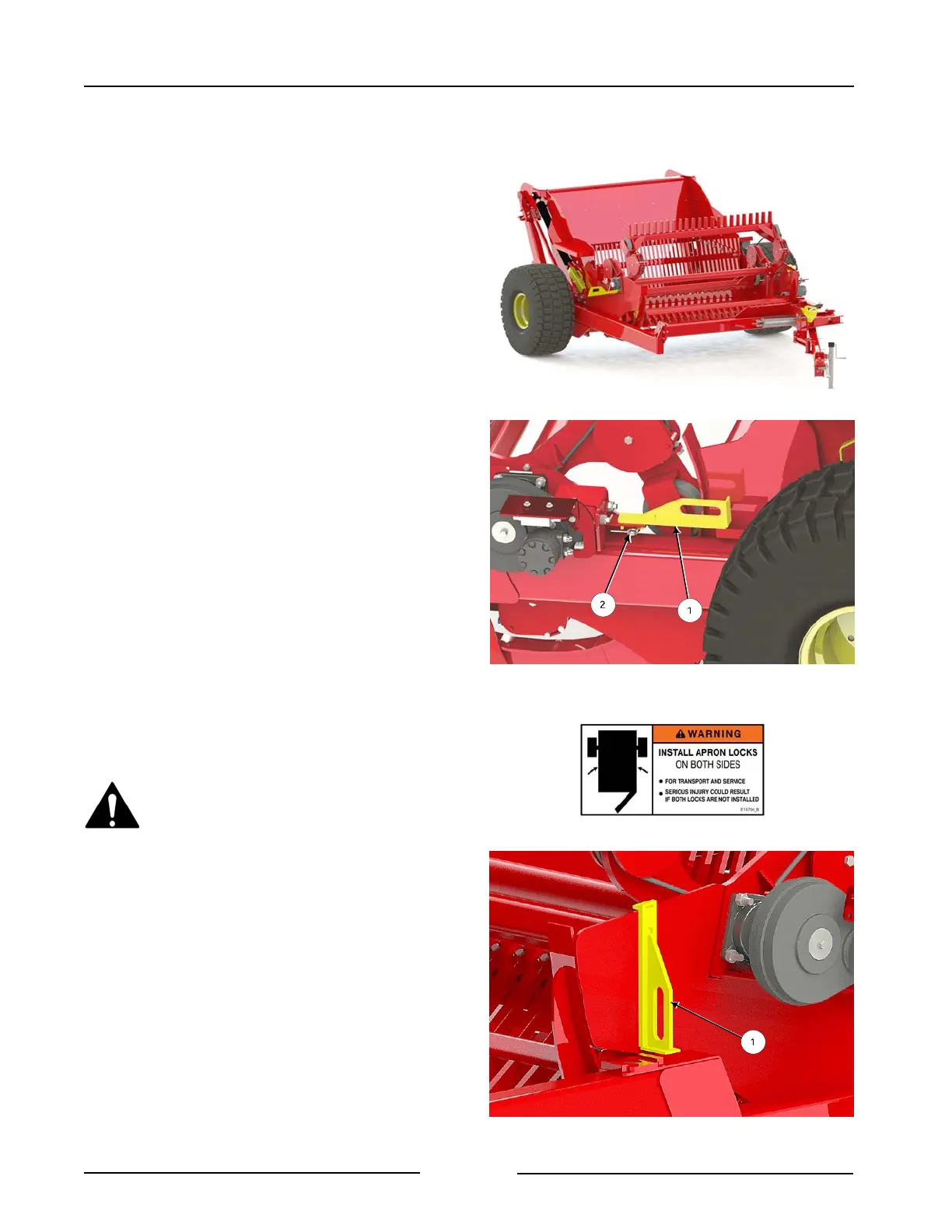

Section 6 - Storing the Rockpicker
Install Apron Lock - Left Side
216239C
Remove the Left Apron Lock
216234C
4. Park the rockpicker on level ground.
5. Move the hitch to the transport position
with the hitch cylinder completely
retracted.
- Lower the hitch lock onto the hitch.
6. Raise the apron until the bucket lift
cylinders are completely retracted.
7. Remove the left apron lock (1) from the
storage position on the left side of the
frame behind the motor.
- Remove the clip pin (2).
8. Install the apron lock (1) on the left side of
the apron.
Install the apron locks on both
sides when transporting or when
servicing the rockpicker. Serious
injury from the apron lowering
could result if both locks are not
installed.
- Place the pin of the lock into the
hole of the apron.
- Fasten with the clip pin.
Move Hitch to Transport Position, Raise Apron
217212
Page 6-4
