HighLine NT78 - Setting the Hitch for Position 2 - Single Tractor Tires

Section 3 - Preparing the Rockpicker

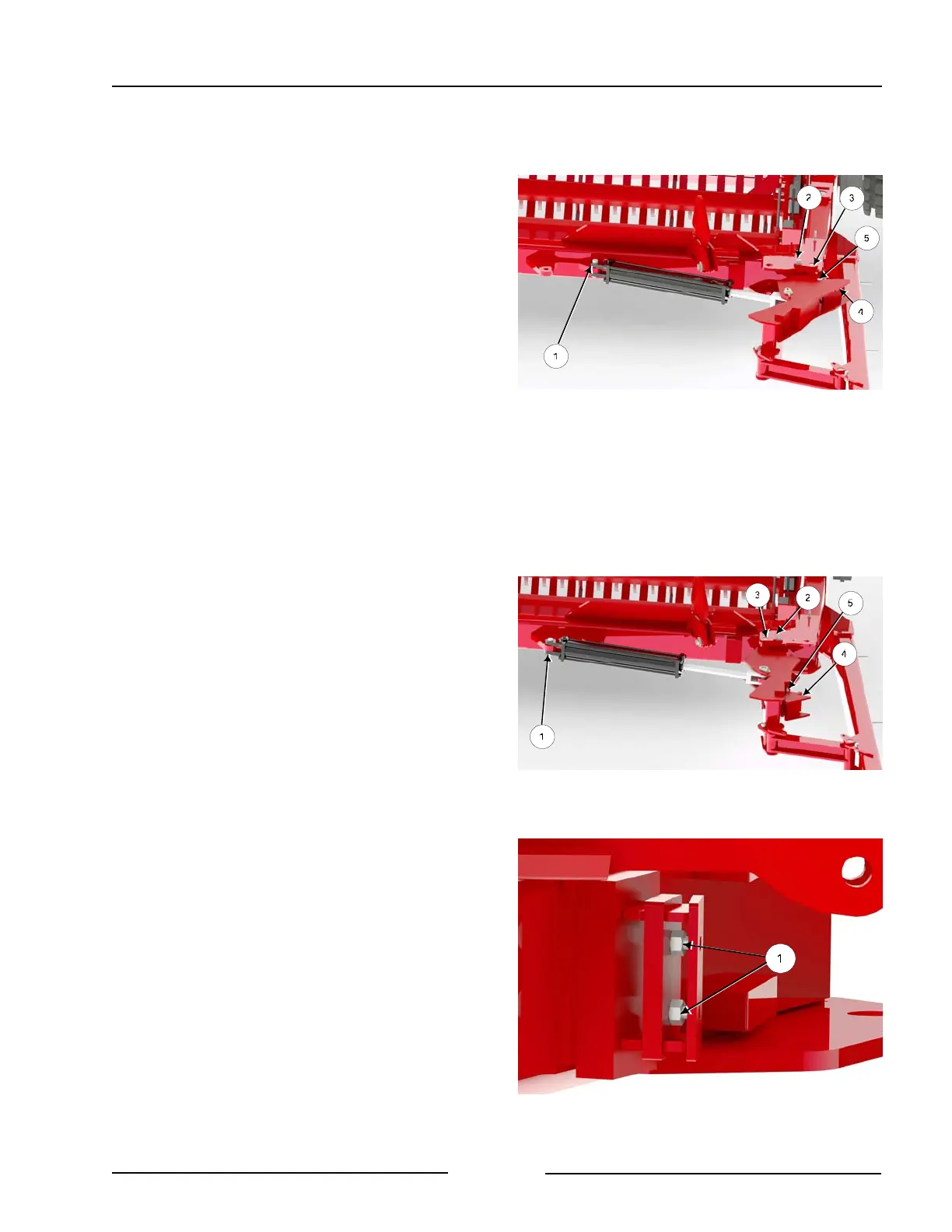

Remove Pins (Position 1) to Adjust Hitch Position
215254C
Install for Hitch Position 2 - Single Tractor Tires
215255C
NT44 Hitch Only - Install Hitch Wedge
215265C
Setting the Hitch for Position 2 - Single
Tractor Tires
For NT 78, NT60 and NT44
- Remove the cylinder pin from the
base of the cylinder (1).
- Remove the locking bolt and locknut
(2) from the swing arm pin.
- Remove the swing arm pin (3).
- Rotate the swing arm outward.
- Remove the carriage bolts and
locknuts (5) holding the insert (4).
- Remove the insert (4).
- Install the insert (4) into the storage
position.
- Fasten the insert with the carriage
bolts and locknuts (5).
- Move the swing arm to the hole near
the hitch lock.
- Install the swing arm pin (3) and
fasten with the locking bolt and
locknut (2).
- Move the cylinder base to the lug (1)
near the center of the machine.
- Fasten with the cylinder pin.
- Adjust the hydraulic hoses as needed.
On the NT44 Only:
- Install the hitch wedge by sliding the
wedge onto the front frame bar and
tightening the nuts (1).
Page 3-7
