Section 6 - Storing the Rockpicker

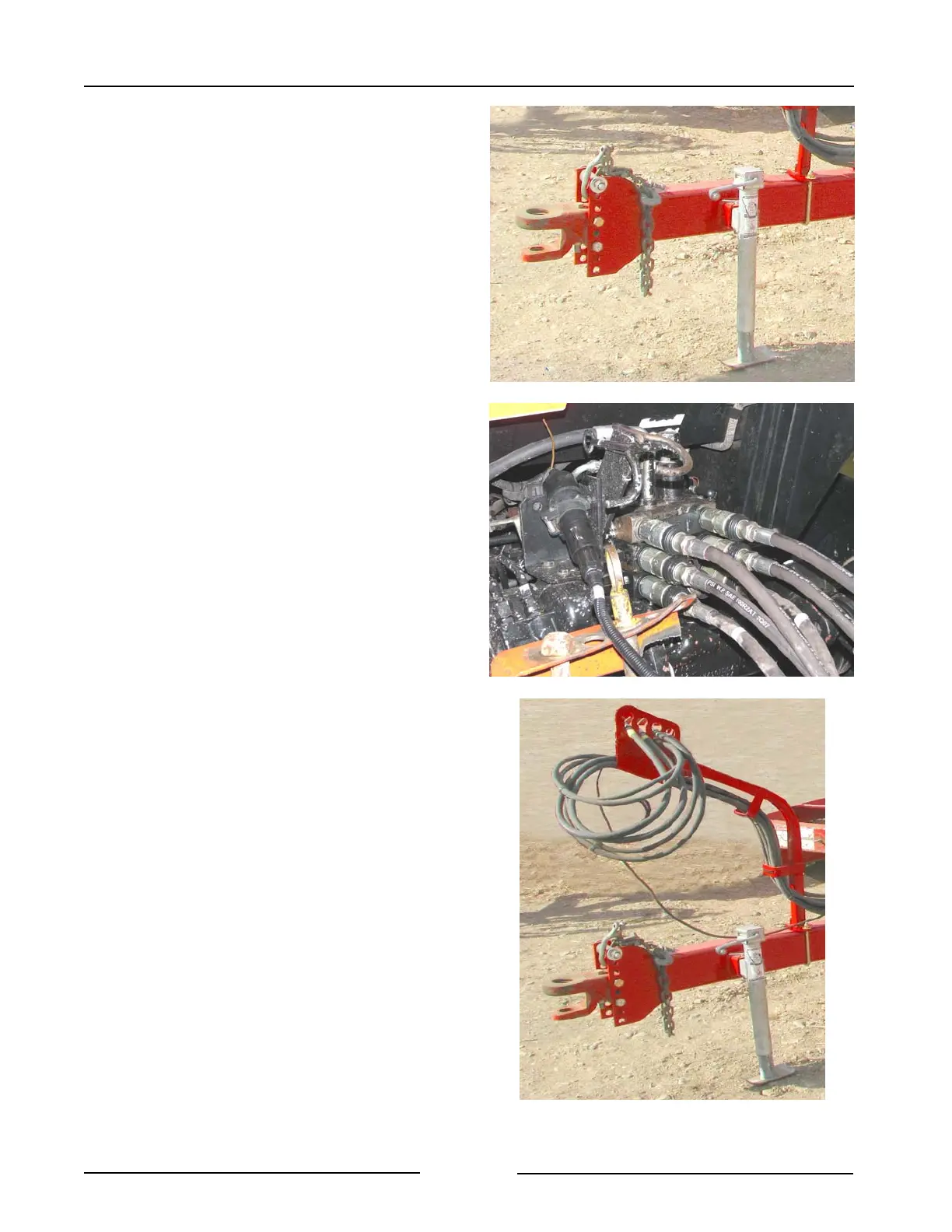

Place the Jack Onto the Hitch
216224
Disconnect Chain and Hitch,
Store Hoses
2162223-2
Disconnect Hydraulic Hoses & Electrical
108008
11. Place the jack onto the hitch.
- Rotate the jack from the storage
position.
- Pin the jack in place on the hitch.
- Ensure that the jack is resting on solid
level ground or resting on a wood
block.
- Raise the hitch until the weight is
supported by the jack.
12. Disconnect the hydraulic hoses from
the tractor.
- Relieve the pressure on the hydraulic
hoses and disconnect them.
13. Secure the hydraulic hoses to the
hose holder on the hitch to keep them
off the ground and clean.
14. Disconnect the hitch from the tractor.
- Disconnect the safety chain.
- Remove the hitch pin.
Page 6-6
