Section 4 - Operating the Rockpicker

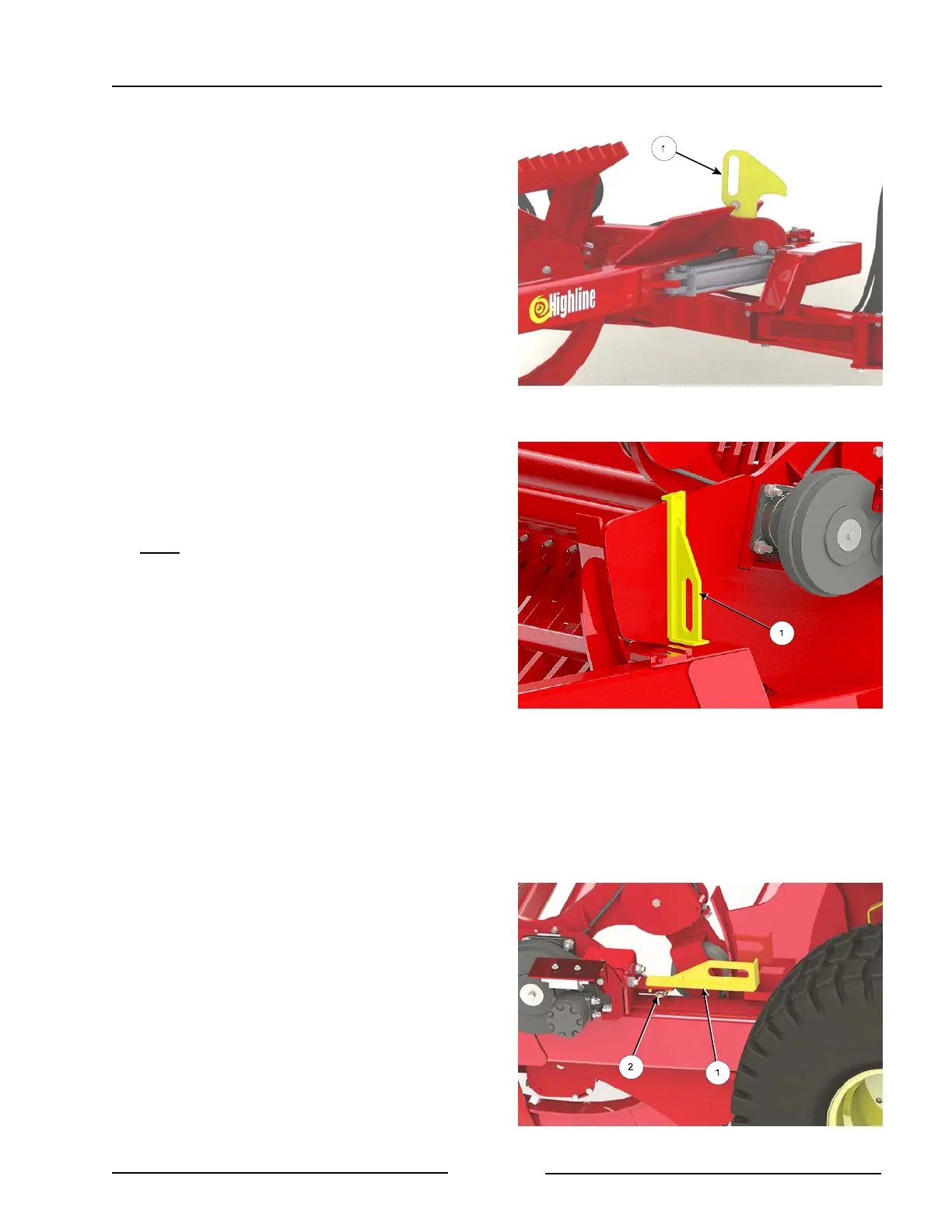

Remove the Apron Lock - Left Side
216239C
Left Apron Lock in Storage Position
216234C
2. Raise the hitch transport lock (1) from the
hitch linkage to allow the hitch to move
into the working position.
3. Fully raise the apron to remove any
pressure on the apron transport locks.
4. Remove the apron lock (1) on the left side
of the apron.
Note
: Do not lower the apron or raise the
bucket when the apron transport
locks are on the apron. Severe
damage will occur to the machine.
- Remove the clip pin.
- Remove the lock from the apron.
5. Place the left apron lock (1) into the
storage position on the left side of the
frame behind the motor.
- Fasten with the clip pin (2).
Raise the Hitch Lock
214139-1C
Page 4-3
