Section 4 - Operating the Rockpicker
Remove the Apron Lock - Right Side
216227C
Right Apron Lock in Storage
216235C

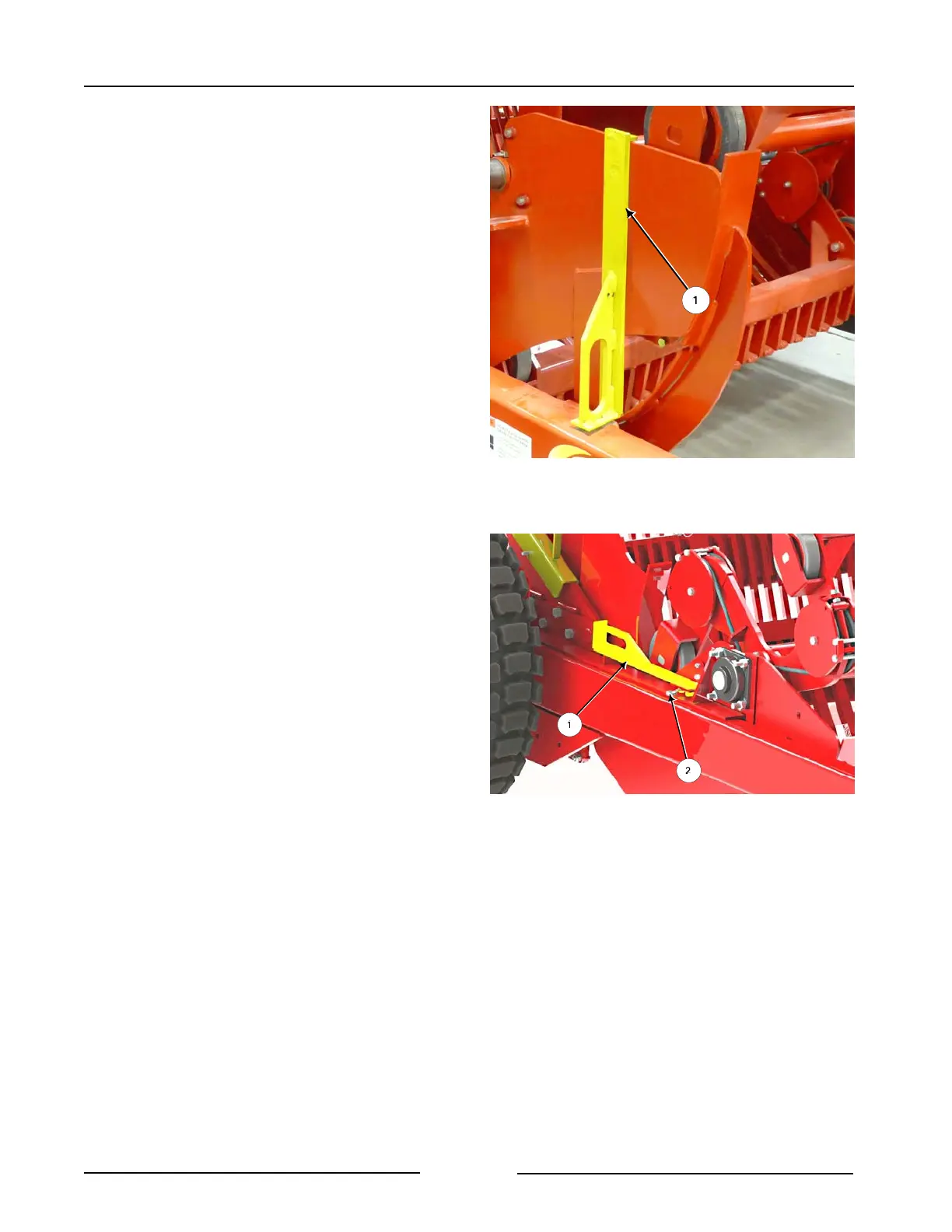

6. Remove the apron lock (1) on the right
side of the apron.
- Remove the clip pin.
- Remove the lock from the apron.
7. Place the right apron lock (1) into the
storage position on the right side of the
frame behind the motor.
- Fasten with the clip pin (2).
Page 4-4
