Section 5 - Maintaining the Rockpicker
Installing the Springs
Note: There are 2 types of spring holding
assemblies:
- One type has 3 bolts on the spring
plates.
- The other type has 2 bolts on the
spring plates.
The installation procedure is different
depending on the type of spring holding
assembly. Find the type of assembly on the
machine and following the appropriate
instructions below.
Spring Plate Assembly with 3 Bolts
1. Place the curled end of the spring into the
spring holder plate.
- Place the straight short end (1) into
the slot of the holder.
2. Place the cover plates (3) with springs
onto the reel arm.
3. Fasten the long straight end of the spring
into the spring tab (2) located on the reel
arm.
Spring Into Tab On Reel Arm
214032C

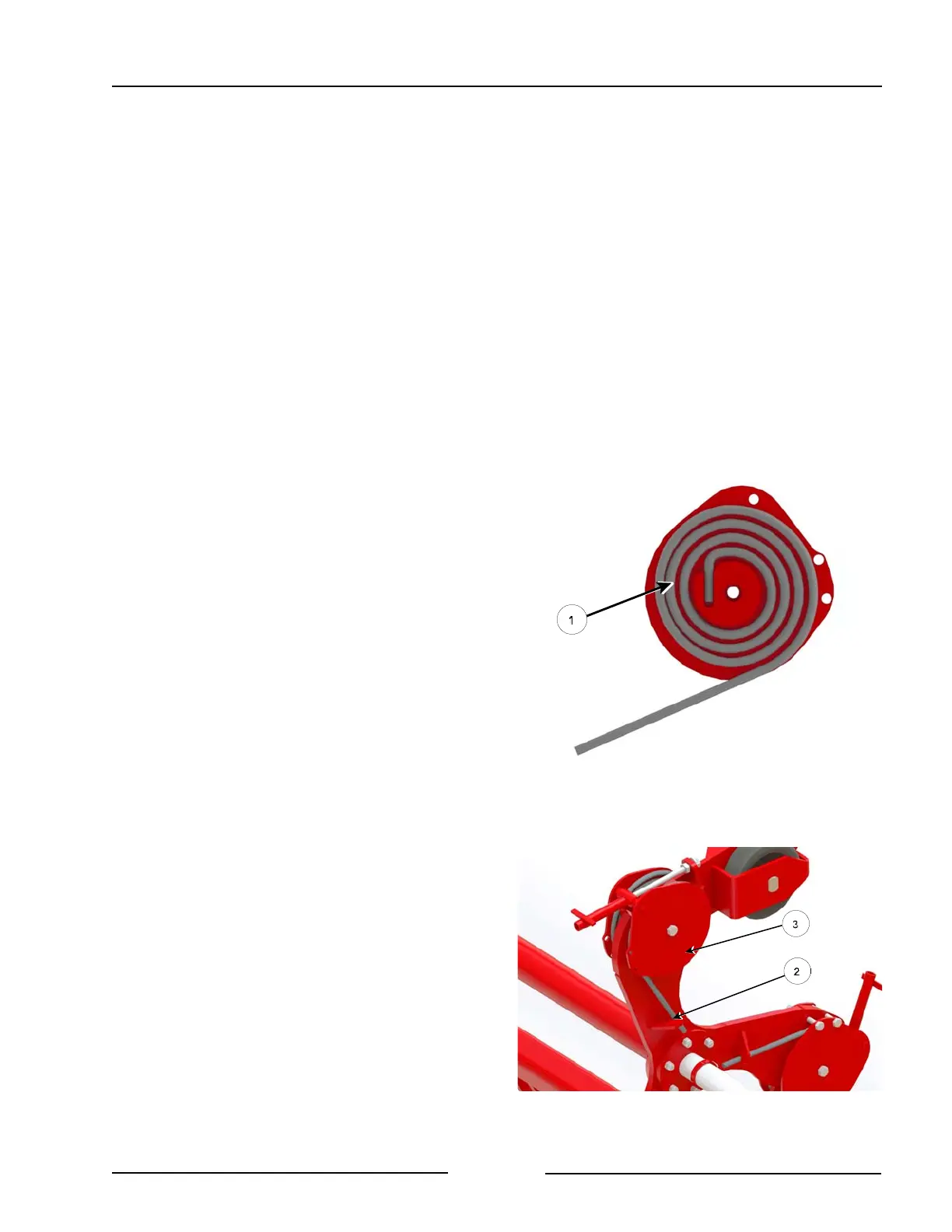

Spring Placed into Spring Holder
214031C
Page 5 -7
