Section 5 - Maintaining the Rockpicker

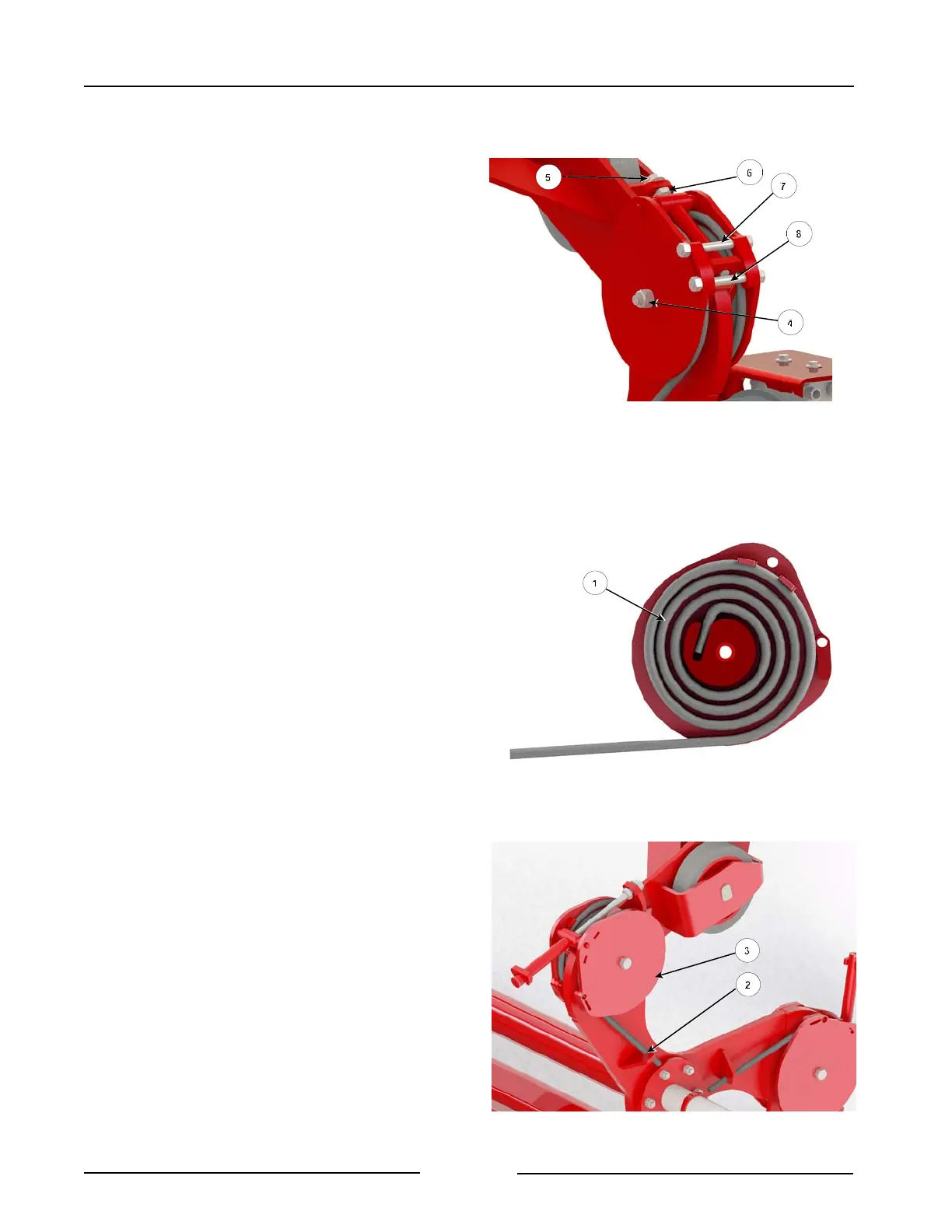

Spring Placed In Holder and Tabs
217205C
Spring Into Tab On Reel Arm
217206C
4. Insert the cover plate bolt (4) and nut. (Do
not fully tighten at this time.)
5. Lubricate the threads of the spring
tension bolt (5).
6. Fully tighten the spring tension bolt (5) to
place tension onto the springs.
7. Tighten the tension bolt jamnut (6).
8. Tighten the cover plate bolt (4).
9. Install the bolt (7) to prevent the tension
bolt from moving up. Tighten just until
snug.
10. Install the leading edge impact bolt
(8). Tighten until snug.
Spring Plate Assembly with 2 Bolts
1. Place the curled end of the spring into the
spring holder plate.
- Place the straight short end (1) into
the slot of the holder.
- Place the curl of the spring inside the
tabs.
2. Place the cover plates (3) with springs
onto the reel arm.
3. Fasten the long straight end of the spring
into the spring tab (2) located on the reel
arm.
Replace The Spring Cover Plates
215266C2
Page 5 -8
