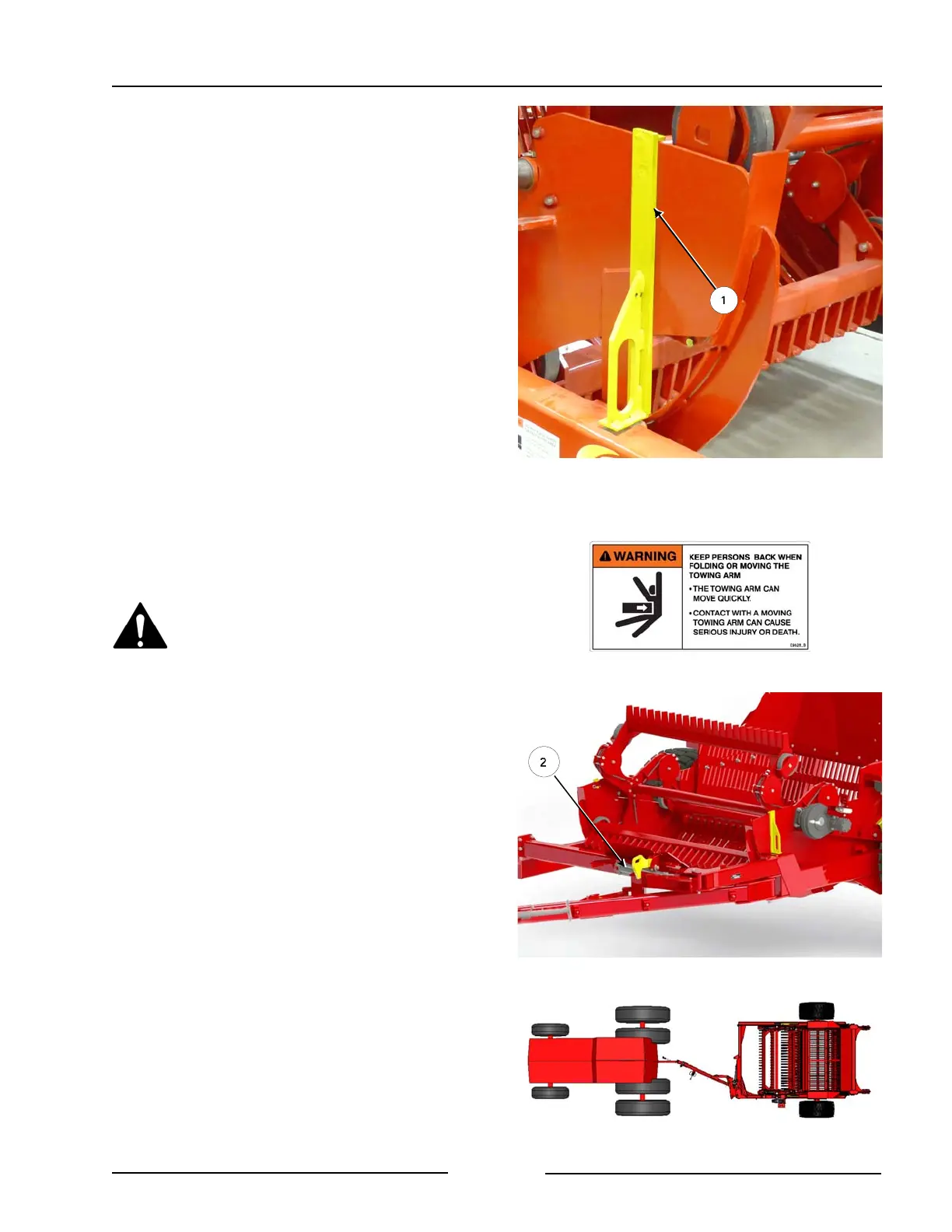

Section 2 - Transporting the Rockpicker
Install Apron Lock - Right Side
216227C
Rockpicker in Transport Position
217007
12. Install the apron lock (1) on the right
side of the apron.
- Place the pin of the lock into the
hole of the apron.
13. Move the hitch into the transport
position.
Keep persons back when moving
the towing arm. The towing arm
can move quickly.
Contact with a moving tow arm
can cause serious injury or death.
- Retract the hitch cylinder (2) to move
the hitch into the transport position.
This reduces the travel width of the
rock picker.
Hitch In Transport Position
216236C
Page 2-5
