8

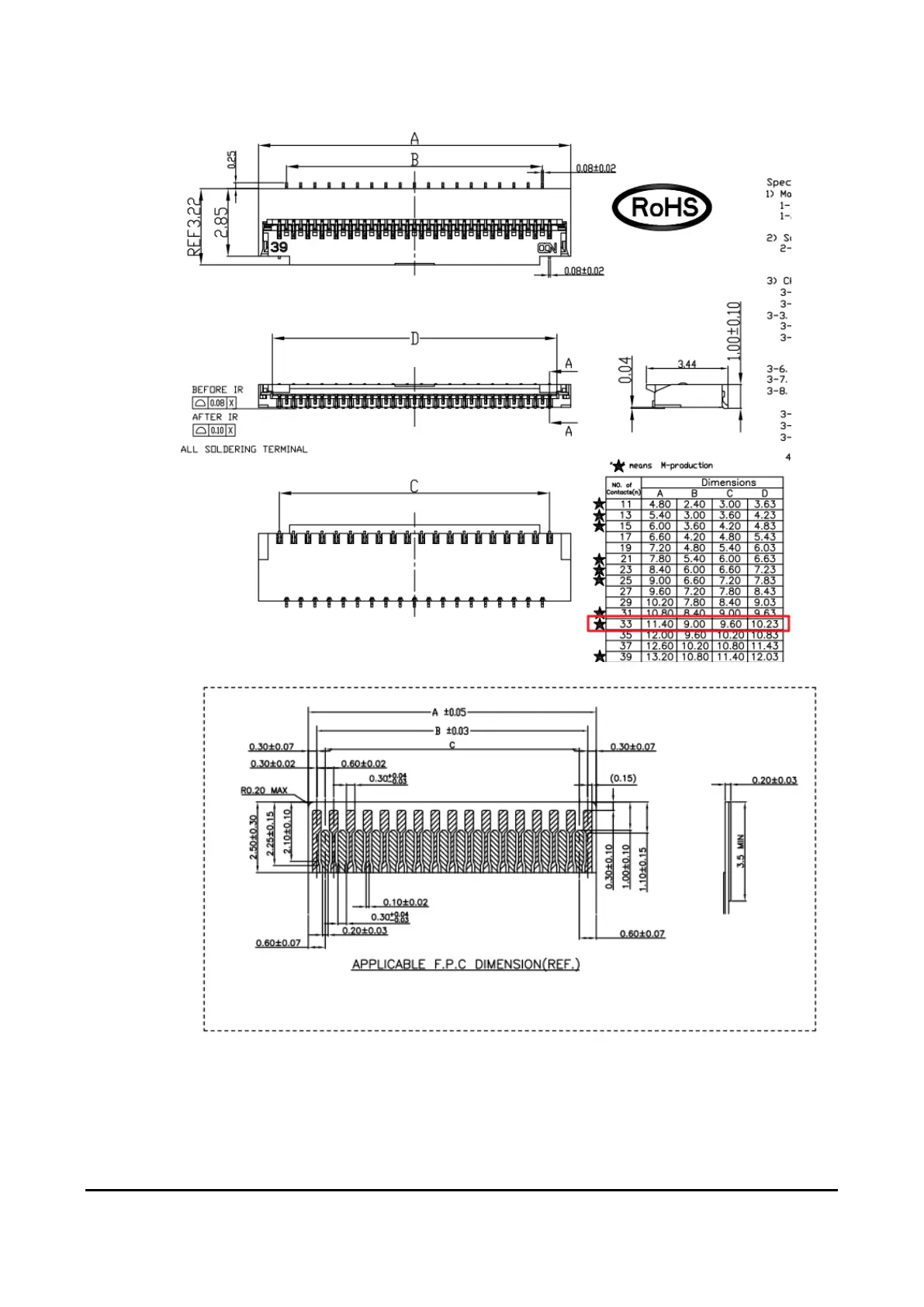

Figure 2-3 Dimension of 33 Pin Interface and FPC
2.1.2 4 Pin
In the HM-TM36-LG/D thermal camera module, the key socket model for the external 4 Pin is 0.8WTB-
4AB-01. The appearance and dimension are shown in Figure 2-4.
