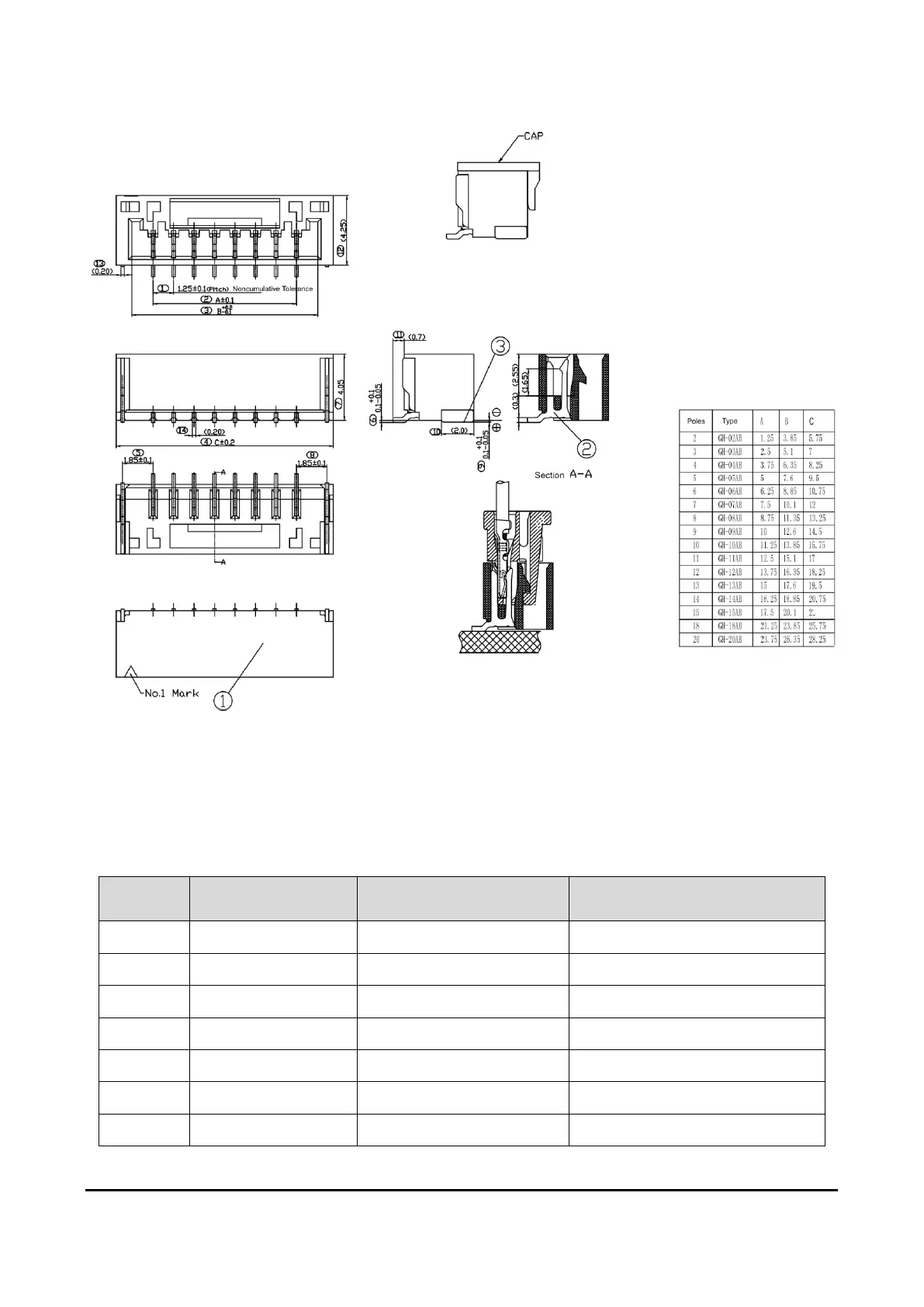

Figure 2-11 Appearance and Dimension of 6 Pin Wire to Board Connector Interface
2.2.2 12 Pin
The FPC socket model used with 12 Pin interface is FH12-12S-0.5SH(55). The wire order and electrical
description of the interface are shown in Table 2-4.
Table 2-4 Electrical Interface Description of 12 Pin Wire to Board Connector
Pin
Signal
Specification
Description
1
KEY1
LVCMOS_1V8
Key 1
2
KEY2
LVCMOS_1V8
Key 2
3
KEY3
LVCMOS_1V8
Key 3
4
KEY4
LVCMOS_1V8
Key 4
5
GND
0 V
GND
6
UART_RXD
LVCMOS_1V8
Connect to TXD_1.8 V (User)
7
UART_TXD
LVCMOS_1V8
Connect to RXD_1.8 V (User)
