Hikmicro HM-TM36-LG/D User Manual

20
2.3 Cables

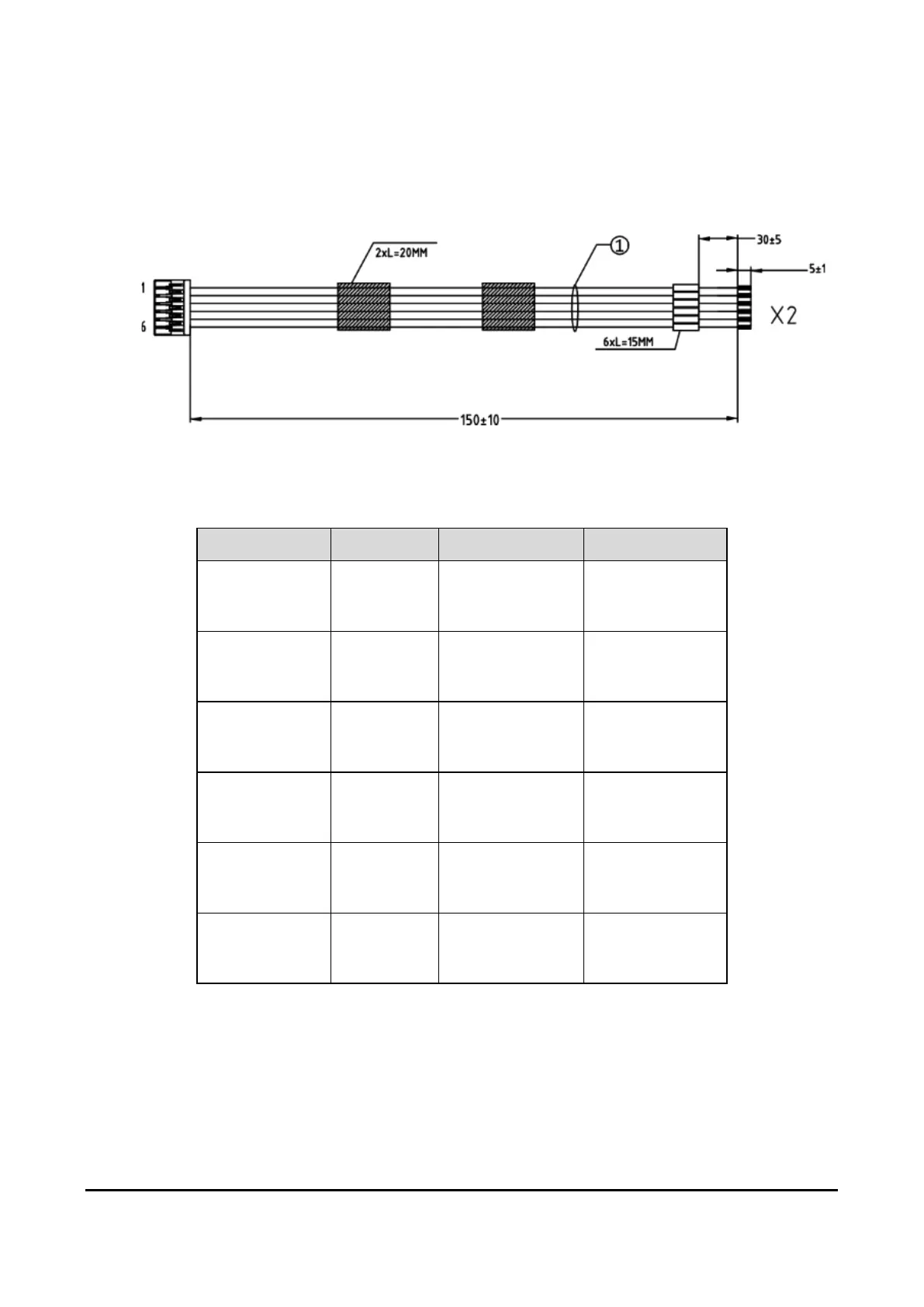

The external cables, and the specification of 1.25 mm spacing crimp connector interface are shown in
Figure 2-15.
Figure 2-15 External Cables of HM-TM36-LG/S
The corresponding relation of the cables and interfaces are shown in Table 2-6.
Table 2-6 Electrical Interface Description of 6 Pin Wire to Board Connector
X1
Color
X2
X3
1
Green
Metal surface with a
layer of tin, prevent
oxidation
BAT+
2
Black
Metal surface with a
layer of tin, prevent
oxidation
BAT-
3
Blue
Metal surface with a
layer of tin, prevent
oxidation
TXD
4
Yellow
Metal surface with a
layer of tin, prevent
oxidation
RXD
5
Black
Metal surface with a
layer of tin, prevent
oxidation
USB-
6
Red
Metal surface with a
layer of tin, prevent
oxidation
USB+
