Note:
For the appearance and dimension of the thermal camera module with M34 lens but without the lens
mount and connector, refer to 2.2 Appearance of HM-TM36-LG/S.
The interfaces of HM-TM36-LG/D are shown in Figure 2-2.
Pin4
Pin1
Pin1
Pin33 FPC
4Pin
33Pin

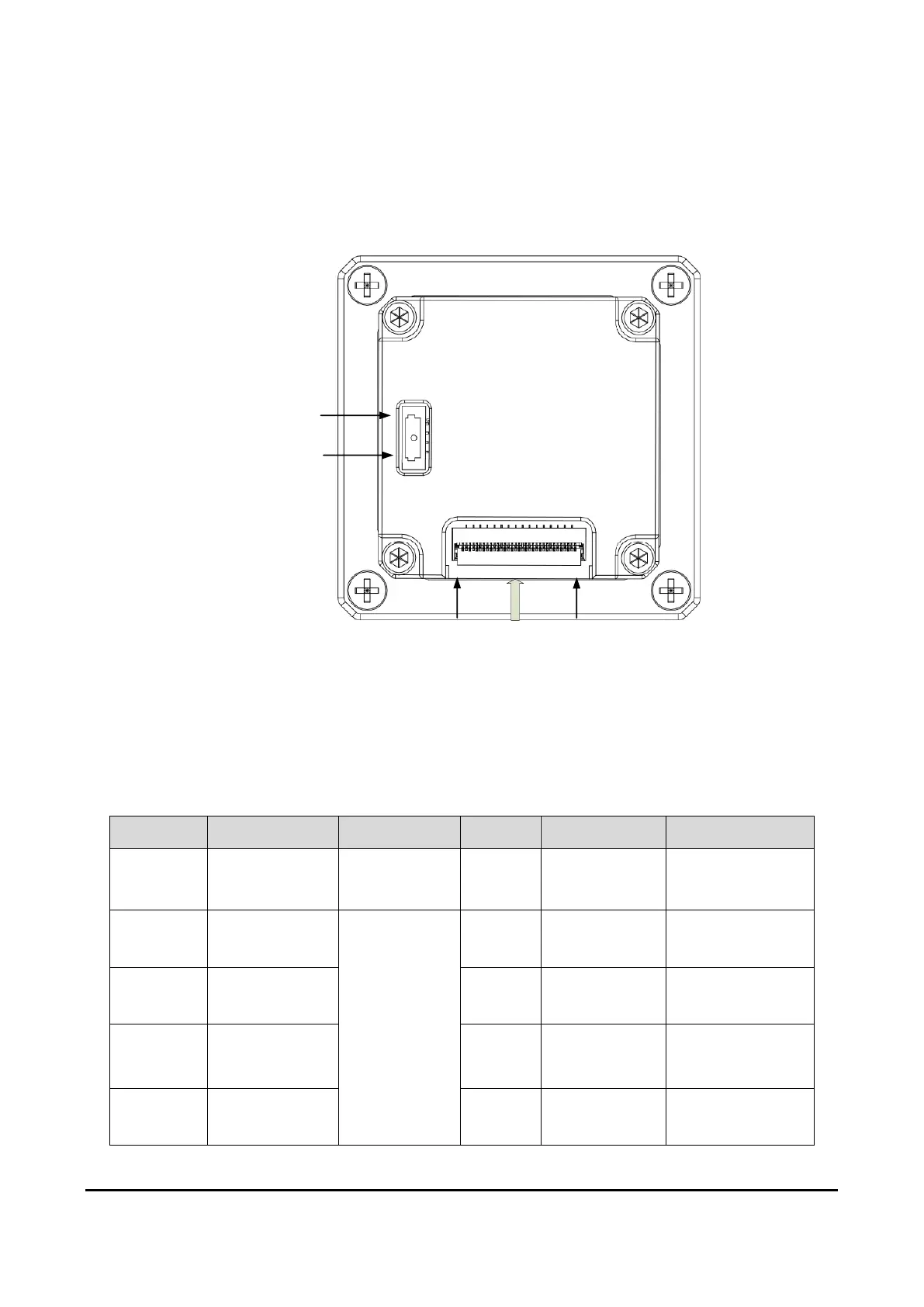

Figure 2-2 Interfaces of HM-TM36-LG/D
2.1.1 33 Pin
In the HM-TM36-LG/D thermal camera module, the FPC connector model for the external 33 Pin is OK-
F302-33115. The electrical interface description is shown in Table 2-1.
Table 2-1 FPC Electrical Interface Description of 33 Pin
Pin
Signal
Description
Pin
Signal
Description
1
GND
GND
18
DATA9
RAW_bit9
LVCMOS_1.8 V
2
VCC
2.5 to 5 VDC
Typical input
voltage: 5 VDC
19
DATA10
RAW_bit10
LVCMOS_1.8 V
3
VCC
20
DATA11
RAW_bit11
LVCMOS_1.8 V
4
VCC
21
DATA12
RAW_bit12
LVCMOS_1.8 V
5
VCC
22
DATA13
RAW_bit13
LVCMOS_1.8 V
