14
6PIN
12PIN
45PIN
PIN1 PIN6
PIN1
PIN12
PIN1
PIN2
PIN44
PIN45

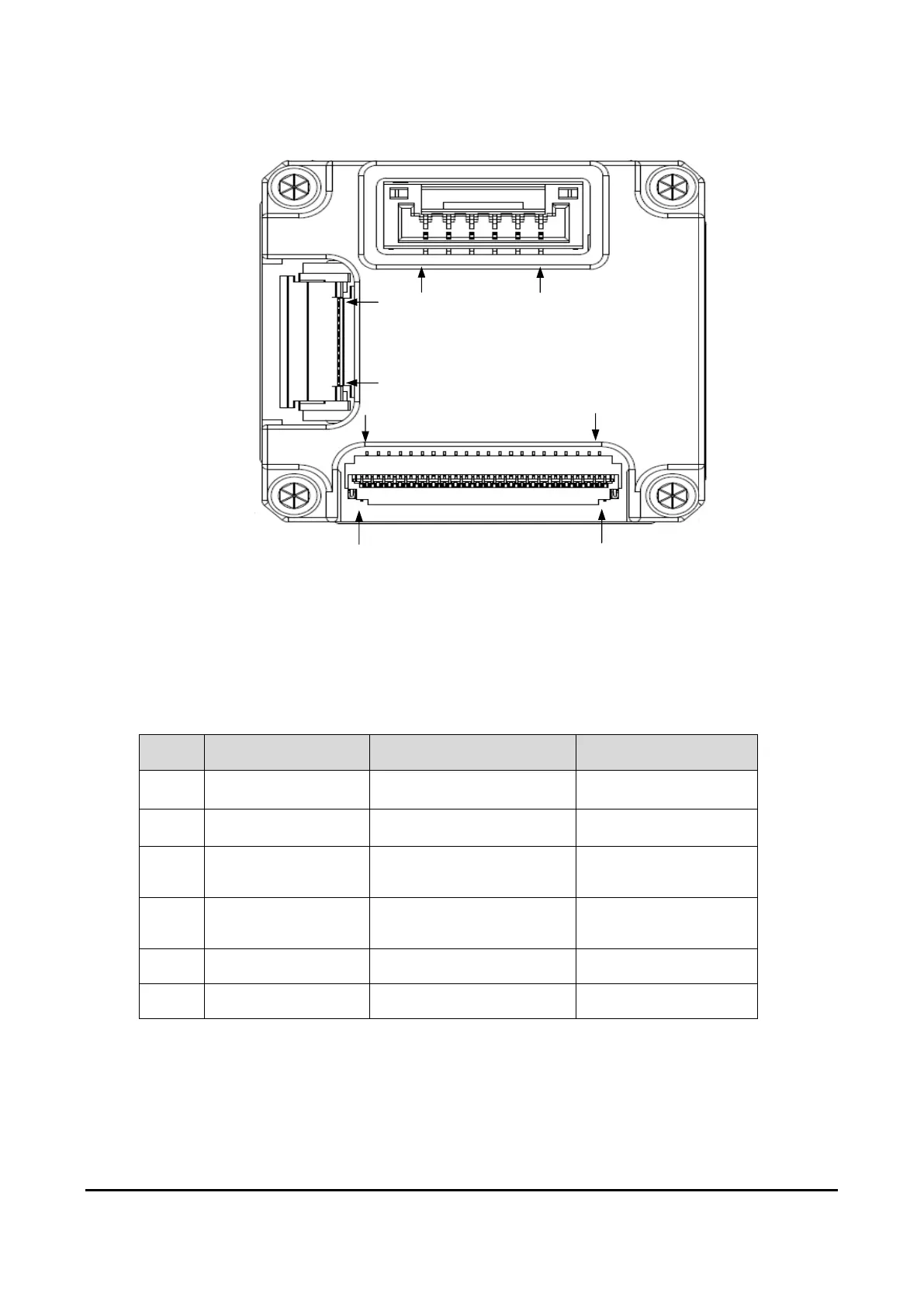

Figure 2-10 Interfaces of HM-TM36-LG/S
2.2.1 6 Pin
The connector model used with 6 Pin interface is GH-NAB 1.25 mm spacing crimp connector. The wire
order and electrical description of the interface are shown in Table 2-3.
Table 2-3 Electrical Interface Description of 6 Pin Wire to Board Connector
The appearance and dimension of 6 Pin wire to board connector interface are shown in Figure 2-11.
Pin
Signal
Specification
Description
1
BAT+
2.5 to 4.2 VDC
Cathode (Battery)
2
BAT-
0 V
Anode (Battery)
3
UART_TXD
LVCMOS_1V8
Connect to RXD_1.8 V
(User)
4
UART_RXD
LVCMOS_1V8
Connect to TXD_1.8 V
(User)
5
USB-
0 V
USB negative pole
6
USB+
5 V
USB positive pole
