Hikmicro HM-TM36-LG/D User Manual

41
Resolution 768 × 292, 292 lines, 768 pixels in each line
First line in valid data Second line in valid data 292 line in valid data

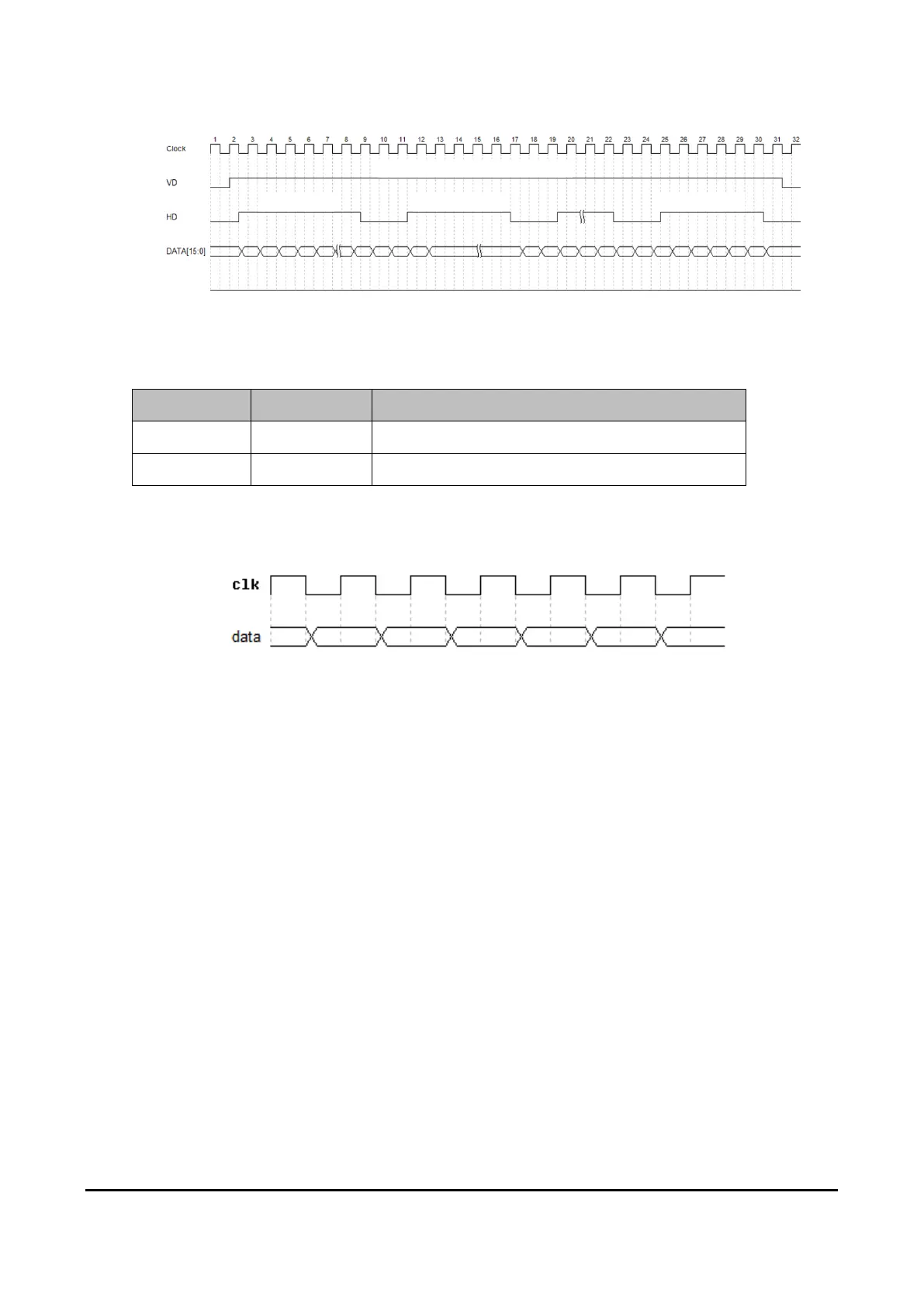

Figure 4-8 Data Format
The description of LVCMOS signal in YUV+RAW output is shown in Table 4-3.
Table 4-3 LVCMOS Signal Description
No.
Signal
Function Description
1
Clock
Clock, transmission frequency: Approx. 54 MHz
2
DATA
Data Signal, 16 bits
Note:
The collection of output data should be sampled at the rising edge of the pixel clock.
Figure 4-8 YUV+RAW Output Timing
4.3 HM-TM36-LG/S Output
4.3.1 OLED
The current OLED of the thermal camera module is the OLP039XG-03 silicon-based OLED micro-display of
Guo Zhao Optoelectronics.
Note:
For the requirement of the register and timing configuration, the thermal camera module can be displayed
normally only when using the OLED device mentioned above.
