HIKVISION DS-2CD2432F-I

Installation Manual of Network Camera
9
Chapter 2 Box Camera Installation
2.1 Type I Box Camera
2.1.1 Camera Description

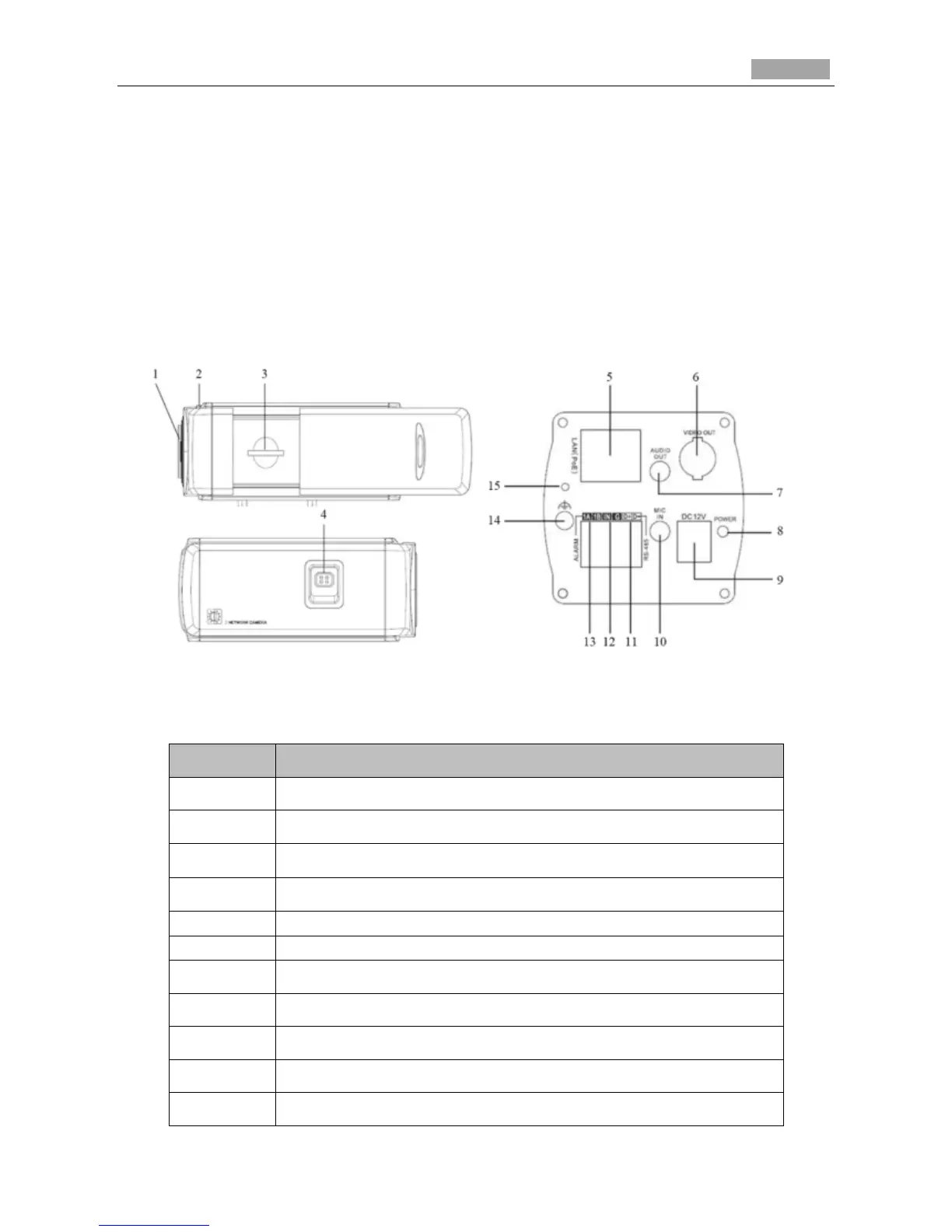

The overview of Type I box camera is shown below:
Figure 2-1 Overview
Table 2-1 Description
No.
Description
1
Lens Mount
2
Back Focus Ring
3
SD Card Slot
4
Auto-iris Interface
5
10M/100M Self-adaptive Ethernet Interface
6
VIDEO OUT: Video Output Interface
7
AUDIO OUT: Audio Output Interface
8
POWER: Power LED Indicator
9
Power Supply Interface
10
MIC IN: Audio Input Interface
11
D+, D-: RS-485 Interface
