Installation Manual of Network Camera
55

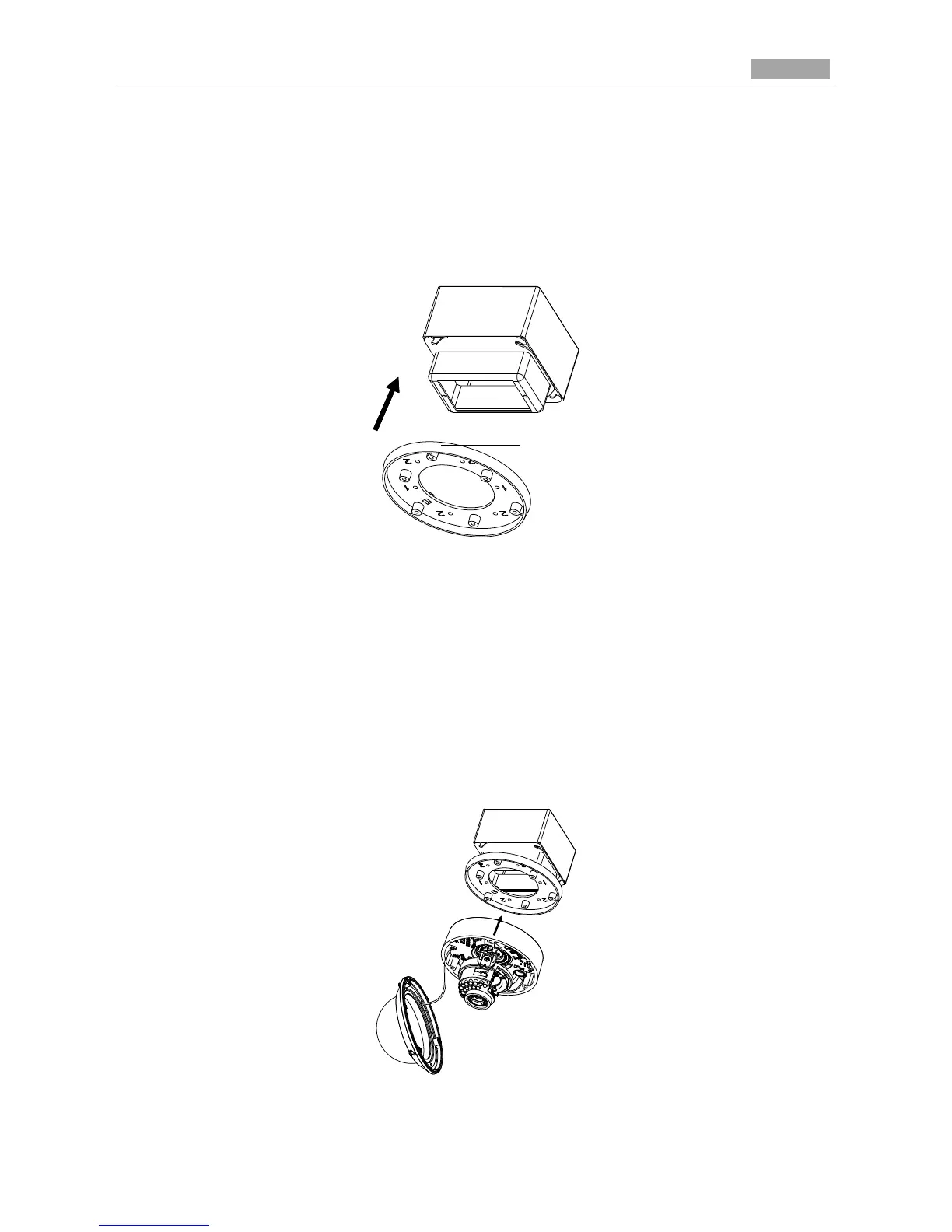

Ceiling Mounting With Gang Box
Steps:
1. Disassemble the camera.
2. Install the gang box in the ceiling.
3. Attach the mounting base to the gang box with two screws.
Mounting Base
Figure 3-69 In-ceiling Mount
4. Route the cables through the hole in the center of the mounting base.
5. Align the camera with the mounting base.
6. Tighten the screws to secure the camera with the mounting base.
7. Connect the video output connector to the monitor. Connect the power connector to the power
supply.
8. Adjust the image and focus. Please refer to the Image and Focus Adjusting for more detailed
information.
Figure 3-70 Secure Camera
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

Table of Contents

Other manuals for HIKVISION DS-2CD2432F-I

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2CD2432F-I and is the answer not in the manual?

HIKVISION DS-2CD2432F-I Specifications

General IconGeneral
Image Sensor1/3" Progressive Scan CMOS
Max Resolution2048 x 1536
Effective Pixels3 MP
ApertureF2.0
Shutter Speed1/3 s to 1/100, 000 s
Lens MountM12
Day & NightIR cut filter with auto switch
IR RangeUp to 30 m
Wide Dynamic Range120 dB
Digital Noise Reduction3D DNR
Video Bit Rate32 Kbps to 16 Mbps
Alarm Interface1 input, 1 output
Sensor TypeCMOS
Lens4mm
Field of View73.1° (4mm), 46° (6mm)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
CompressionH.264
Image SettingsSaturation, Brightness, Contrast adjustable by client software or web browser
Network StorageNAS
Alarm TriggerMotion detection, Tampering alarm
ProtocolsTCP/IP, DHCP, DNS, DDNS, FTP, SMTP, NTP, HTTP, UPnP, RTSP
SecurityUser authentication, Watermark
System CompatibilityONVIF, PSIA
Communication InterfaceRJ45 10M/100M Ethernet
Audio Interface1 audio input, 1 audio output
Operating Conditions-30 °C to 60 °C
Power SupplyPoE (802.3af)
Frame Rate20fps (2048 × 1536), 25fps (1920 × 1080)
Network InterfaceRJ45 10M/100M Ethernet
Video CompressionH.264
