HIKVISION DS-2CD2432F-I

Installation Manual of Network Camera
66
3
Mounting Base
8
10/100M Self-adaptive
Ethernet Interface
4
SD Card Slot
9
Lens
5
Video Out
10
Audio and Alarm Cables
3.8.2 Installation of Type A Dome Camera
Steps:
1. Drill the screw holes and the cable hole according to the supplied drill template.
Drill Tempalte
1
1
2
2
2
2
3
3
3
3
4
4
4
4
Screw Hole 3: for
Mounting Base
Hole A: for cables routed
through the ceiling
Code: 190600839

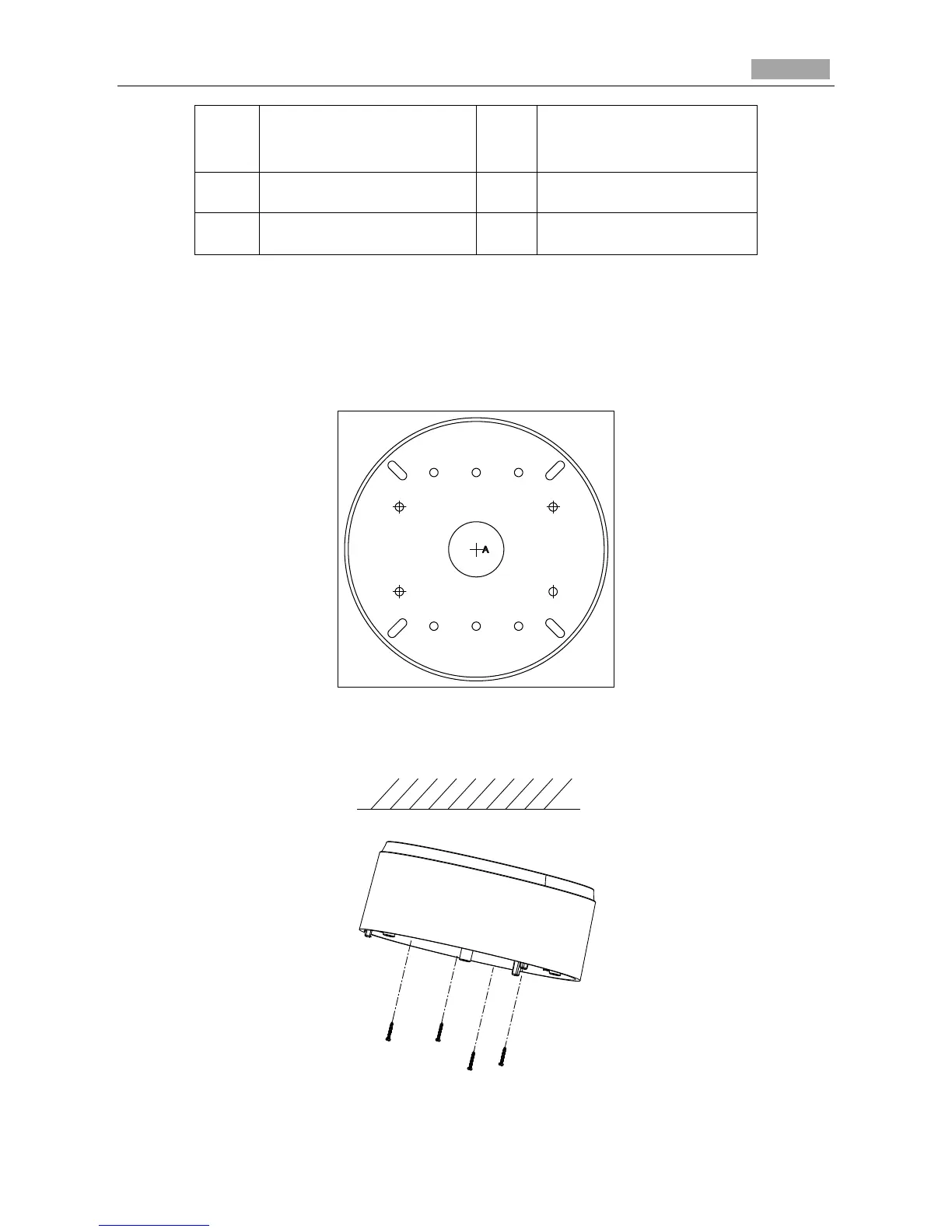

Figure 3-92 Drill Template
2. Install the mounting base to the ceiling with the supplied screws.
Figure 3-93 Install the Mounting Base
