Installation Manual of Network Camera
27
3.2.4 Installation
Steps:
1. (Optional) Use a plier to remove the clip (marked in dotted line in 0) on the side of the back box
and then route the cables through the opening instead of the cable hole.

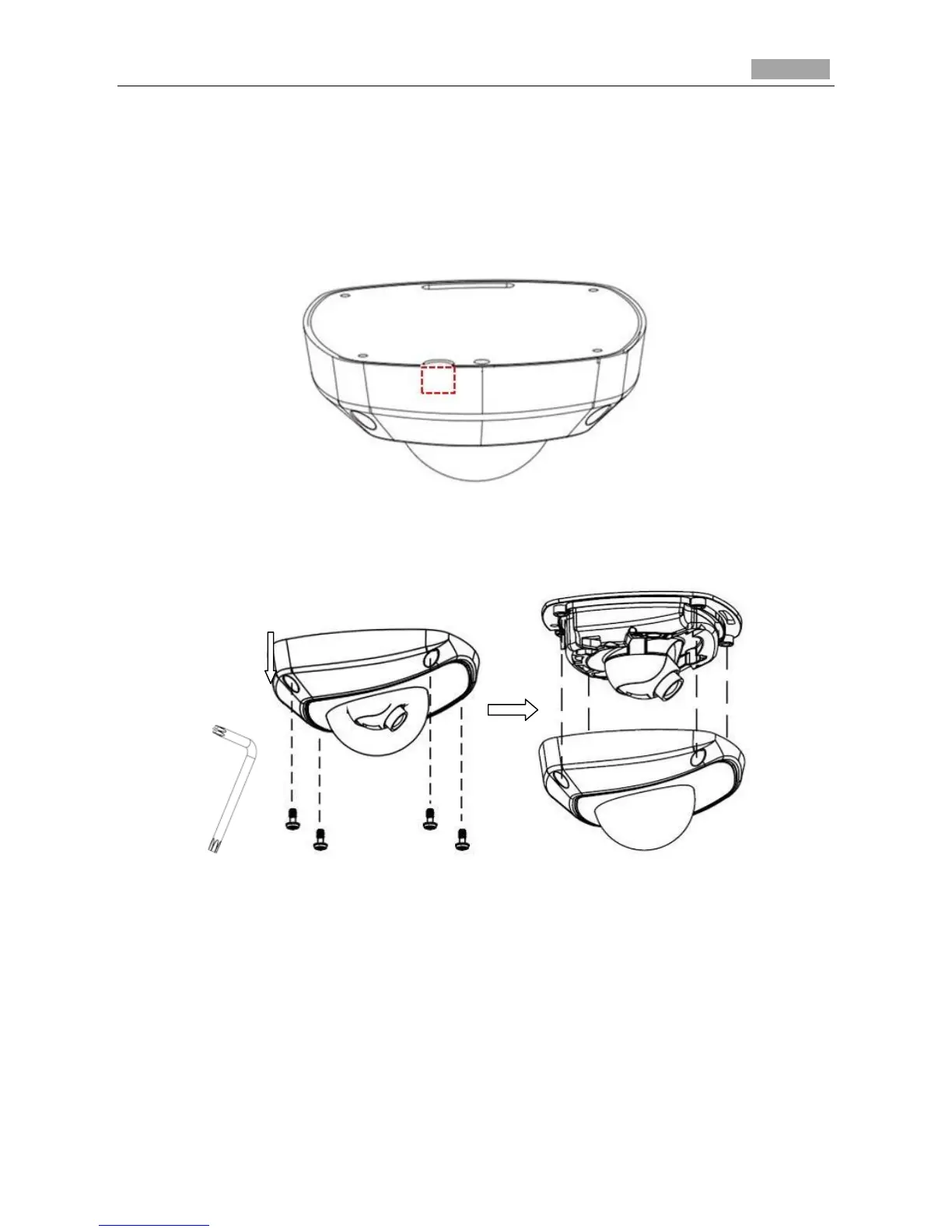

Figure 3-17 Side Clip
2. Loosen the set screws with a hex key (supplied) to remove the cover.
Figure 3-18 Remove the Cover
3. Fix the camera to the ceiling with the supplied screws.
