3.5 Type V Dome Camera
3.5.1 Camera Description
2
3
4
6
7
8
9
5
1

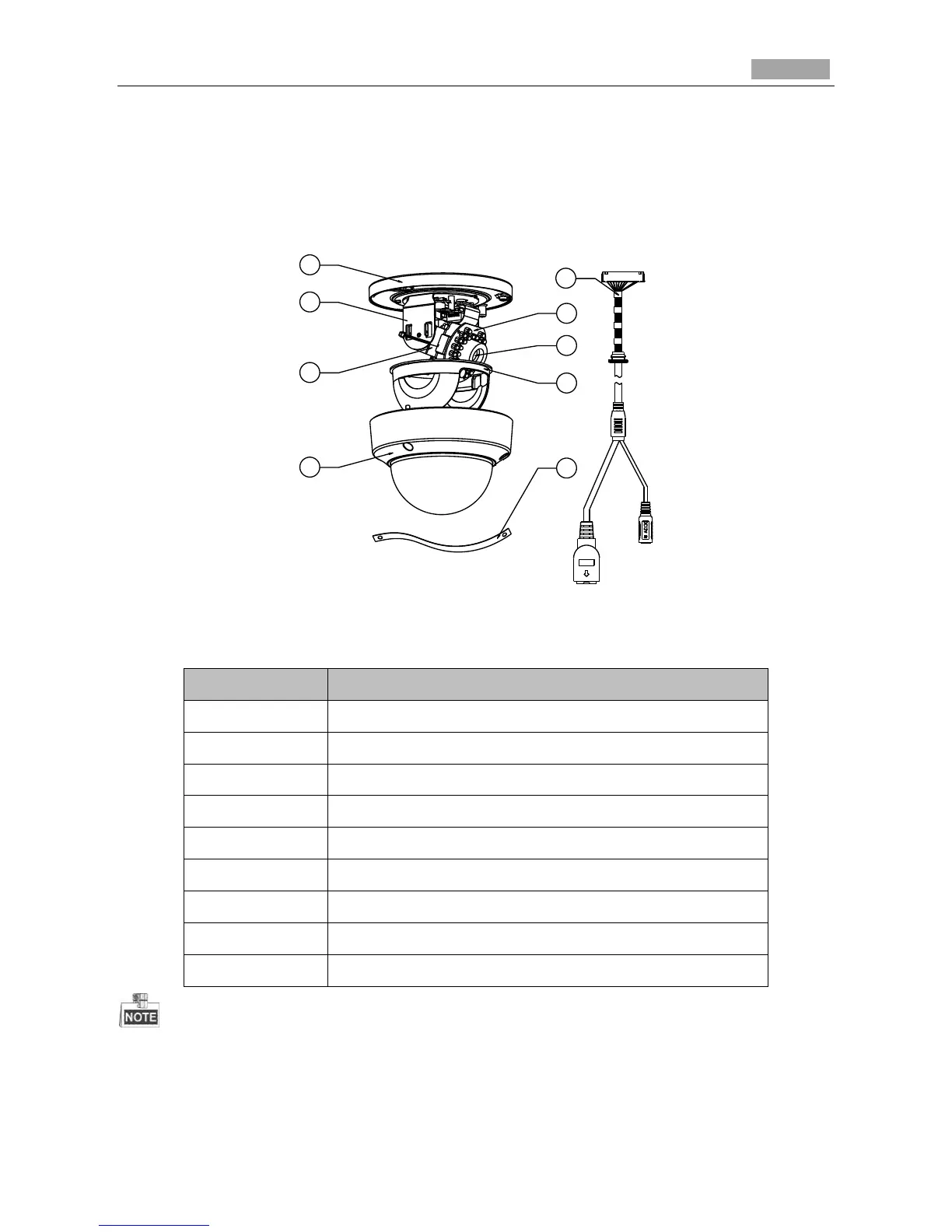

Figure 3-53 Overview
Table 3-5 Description
No.
Description
1
Mounting Base
2
Horizontal Stand
3
Vertical Stand
4
Bubble
5
Power/Network Cables
6
IR LED
7
Lens
8
Black Liner
9
Safety Rope
Press RESET button about 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2432F-I Specifications

General

Image Sensor	1/3" Progressive Scan CMOS
Max Resolution	2048 x 1536
Effective Pixels	3 MP
Aperture	F2.0
Shutter Speed	1/3 s to 1/100, 000 s
Lens Mount	M12
Day & Night	IR cut filter with auto switch
IR Range	Up to 30 m
Wide Dynamic Range	120 dB
Digital Noise Reduction	3D DNR
Video Bit Rate	32 Kbps to 16 Mbps
Alarm Interface	1 input, 1 output
Sensor Type	CMOS
Lens	4mm
Field of View	73.1° (4mm), 46° (6mm)
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Compression	H.264
Image Settings	Saturation, Brightness, Contrast adjustable by client software or web browser
Network Storage	NAS
Alarm Trigger	Motion detection, Tampering alarm
Protocols	TCP/IP, DHCP, DNS, DDNS, FTP, SMTP, NTP, HTTP, UPnP, RTSP
Security	User authentication, Watermark
System Compatibility	ONVIF, PSIA
Communication Interface	RJ45 10M/100M Ethernet
Audio Interface	1 audio input, 1 audio output
Operating Conditions	-30 °C to 60 °C
Power Supply	PoE (802.3af)
Frame Rate	20fps (2048 × 1536), 25fps (1920 × 1080)
Network Interface	RJ45 10M/100M Ethernet
Video Compression	H.264
