HIKVISION DS-2CD2432F-I Installation Manual

Installation Manual of Network Camera
51
 Press RESET about 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.
 The DS-2CD2712F-IS and DS-2CD2732F-IS models support audio and alarm functions. The
interfaces are shown as follows.
Alarm/Audio Cable Interface

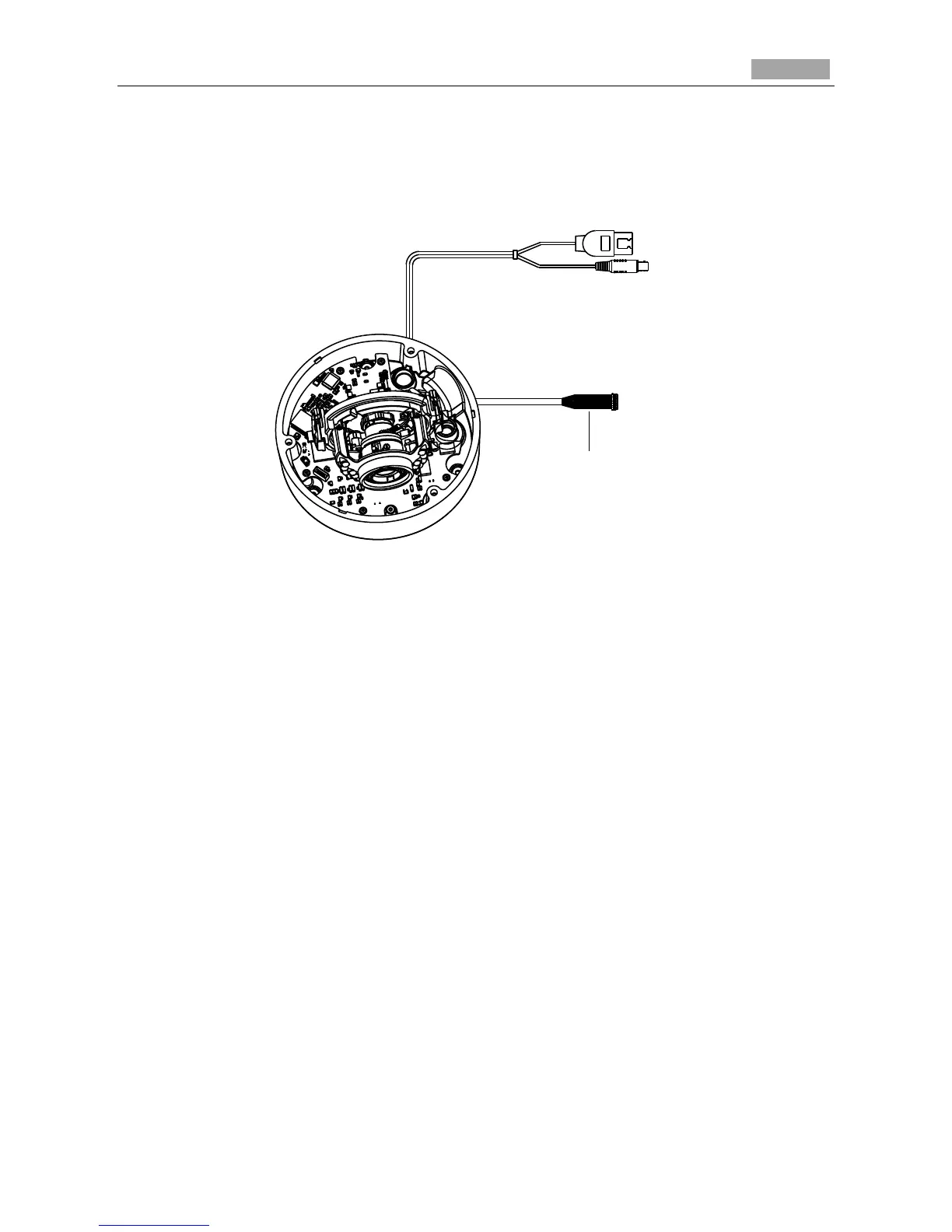

Figure 3-61 Audio and Alarm Interfaces
3.6.2 Installation
 Ceiling mounting
Steps:
1. Loosen the three screws on the edge of the bubble with the screw driver.
2. Open the bubble and remove the inner black liner.
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2432F-I Specifications

General

Image Sensor	1/3" Progressive Scan CMOS
Max Resolution	2048 x 1536
Effective Pixels	3 MP
Aperture	F2.0
Shutter Speed	1/3 s to 1/100, 000 s
Lens Mount	M12
Day & Night	IR cut filter with auto switch
IR Range	Up to 30 m
Wide Dynamic Range	120 dB
Digital Noise Reduction	3D DNR
Video Bit Rate	32 Kbps to 16 Mbps
Alarm Interface	1 input, 1 output
Sensor Type	CMOS
Lens	4mm
Field of View	73.1° (4mm), 46° (6mm)
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Compression	H.264
Image Settings	Saturation, Brightness, Contrast adjustable by client software or web browser
Network Storage	NAS
Alarm Trigger	Motion detection, Tampering alarm
Protocols	TCP/IP, DHCP, DNS, DDNS, FTP, SMTP, NTP, HTTP, UPnP, RTSP
Security	User authentication, Watermark
System Compatibility	ONVIF, PSIA
Communication Interface	RJ45 10M/100M Ethernet
Audio Interface	1 audio input, 1 audio output
Operating Conditions	-30 °C to 60 °C
Power Supply	PoE (802.3af)
Frame Rate	20fps (2048 × 1536), 25fps (1920 × 1080)
Network Interface	RJ45 10M/100M Ethernet
Video Compression	H.264
