HIKVISION DS-2CD2432F-I

Installation Manual of Network Camera
54
Water-proof Plug
Side Cable Outlet

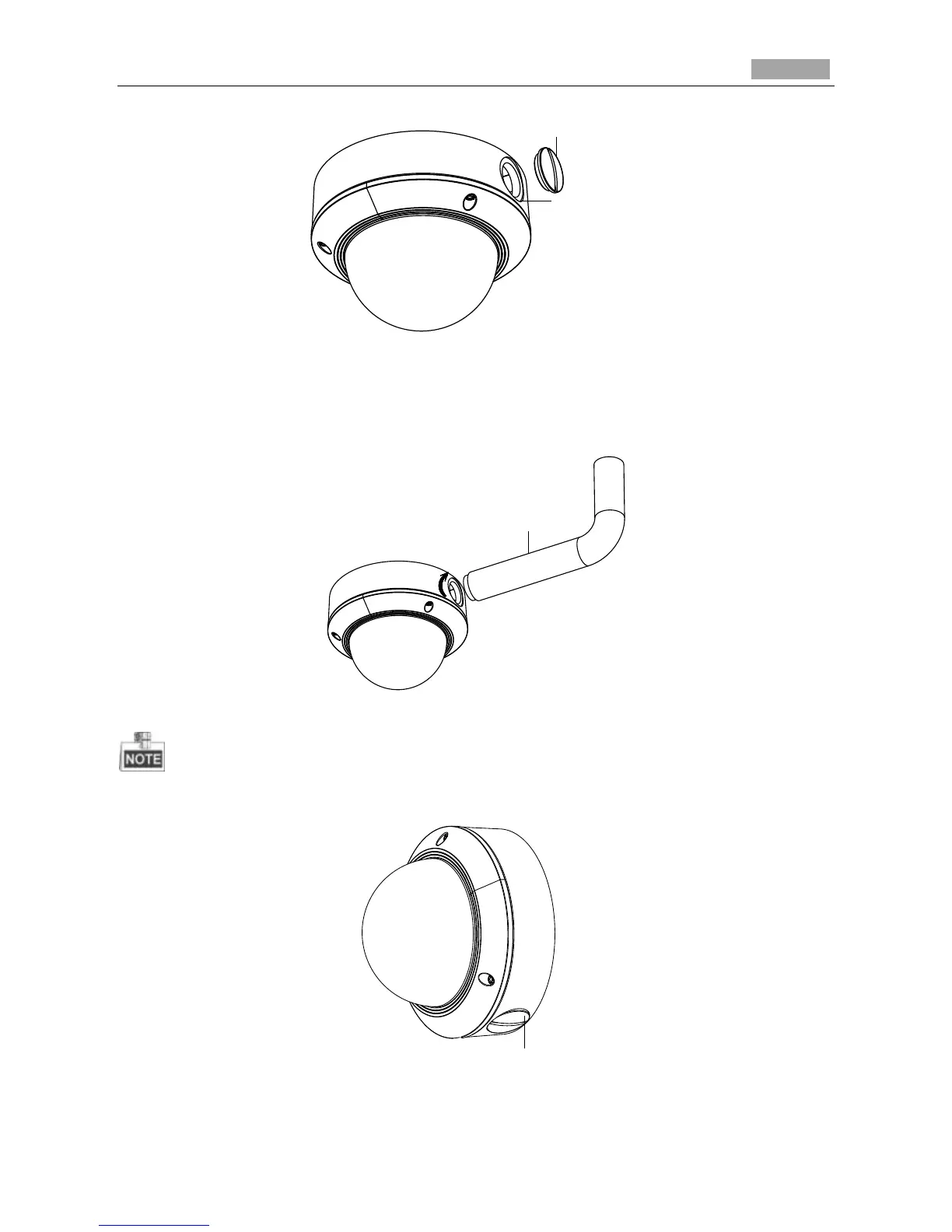

Figure 3-66 Remove the water-proof plug
2. Route the power cable and network cable through the side outlet to the conduit.
3. Align and rotate clockwise the conduit to the side outlet tightly.
Conduit
Figure 3-67 Install the Conduit to the Camera
For wall mounting, position the side outlet directly downward for water-proof.
Downward
Figure 3-68 Side Outlet Direction
