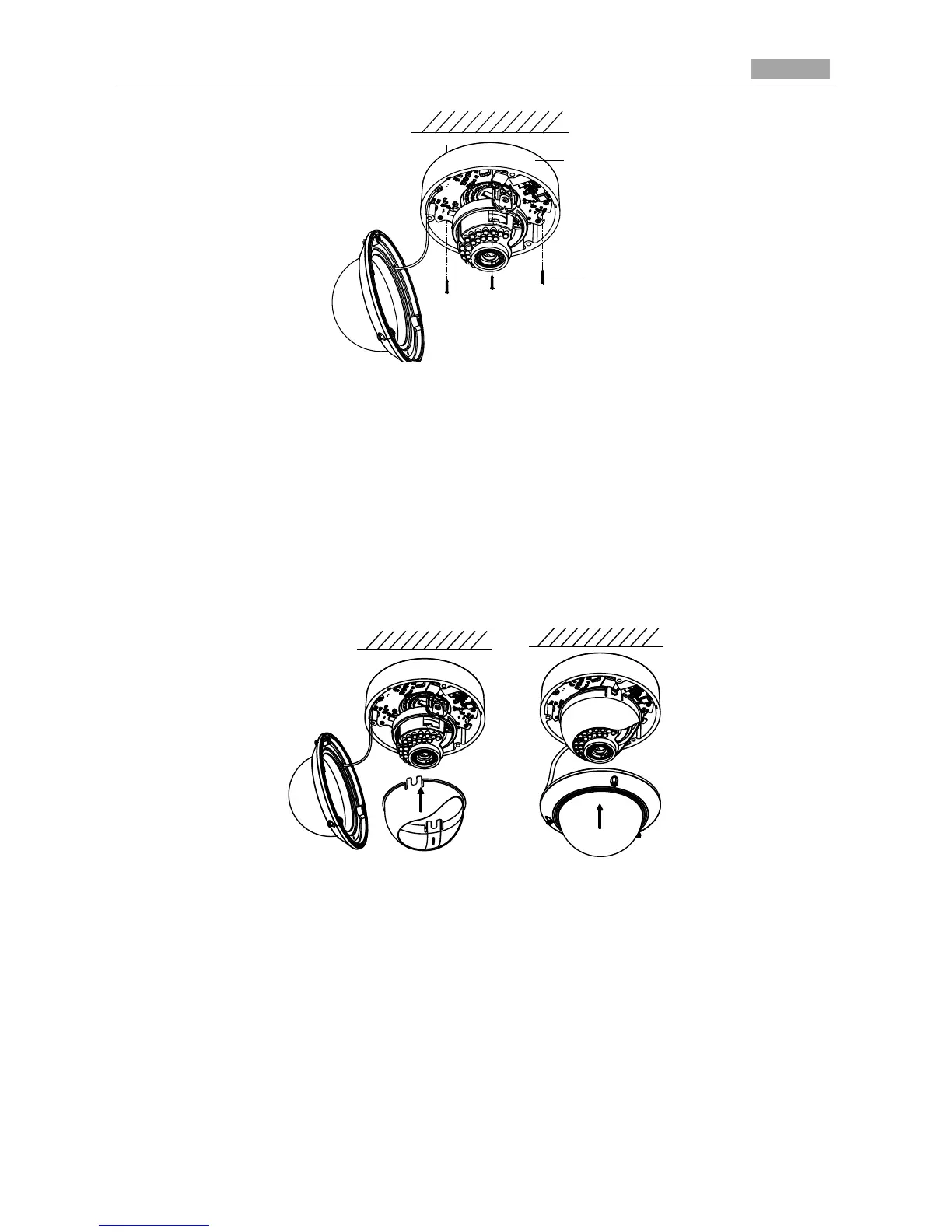

Figure 3-64 Secure the Camera
8. Route the cables through the cable hole.
9. Connect the video output connector to the monitor. Connect the power connector to the power
supply.
10. Adjust the image and focus. Please refer to Image and Focus and Adjusting for more detailed
information.
11. Install the inner black liner back to the camera.
12. Install the bubble back to the camera and secure it with screws as shown below.
Figure 3-65 Secure Black Liner and Bubble
Conduit Installation on the Side
If you want to route the cables from side of the camera, you need to follow the steps below to install
a conduit for cable routing.
Steps:
1. Rotate the water-proof plug counterclockwise to remove it from the camera.
