HIKVISION DS-2CD2432F-I Installation Manual

Installation Manual of Network Camera
13

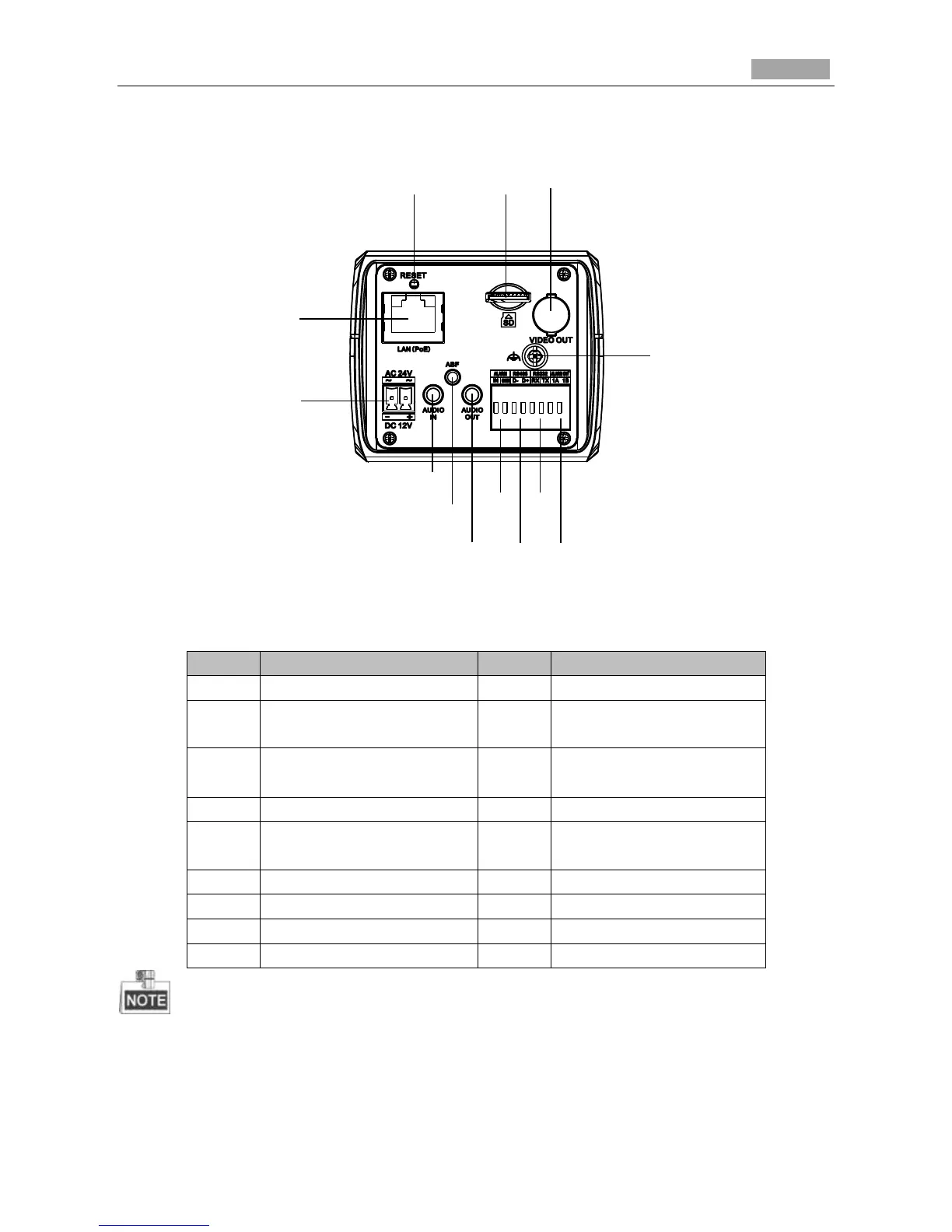

The interfaces on the rear panel are shown below:
8
6
9
10
7
18
16
11
17
14
13
15
12
Figure 2-8 Overview (3)
Table 2-3 Description
No.
Description
No.
Description
1
Lens Mount
2
MIC
3
¼-20 UNC Screw Hole
4
Status Indicator
5
Auto-iris Interface
6
LAN(PoE)
7
Power Outlet
8
Reset
9
Micro SD Card Slot
10
Video Out
11
Grounding
12
Alarm Out
13
RS-232
14
RS-485
15
Alarm In
16
Audio Out
17
ABF
18
Audio In
Press RESET about 10s when the camera is powering on or rebooting to restore the default settings,
including the user name, password, IP address, port No., etc.
