DS-7108HI-S series Net DVR User Manual
47

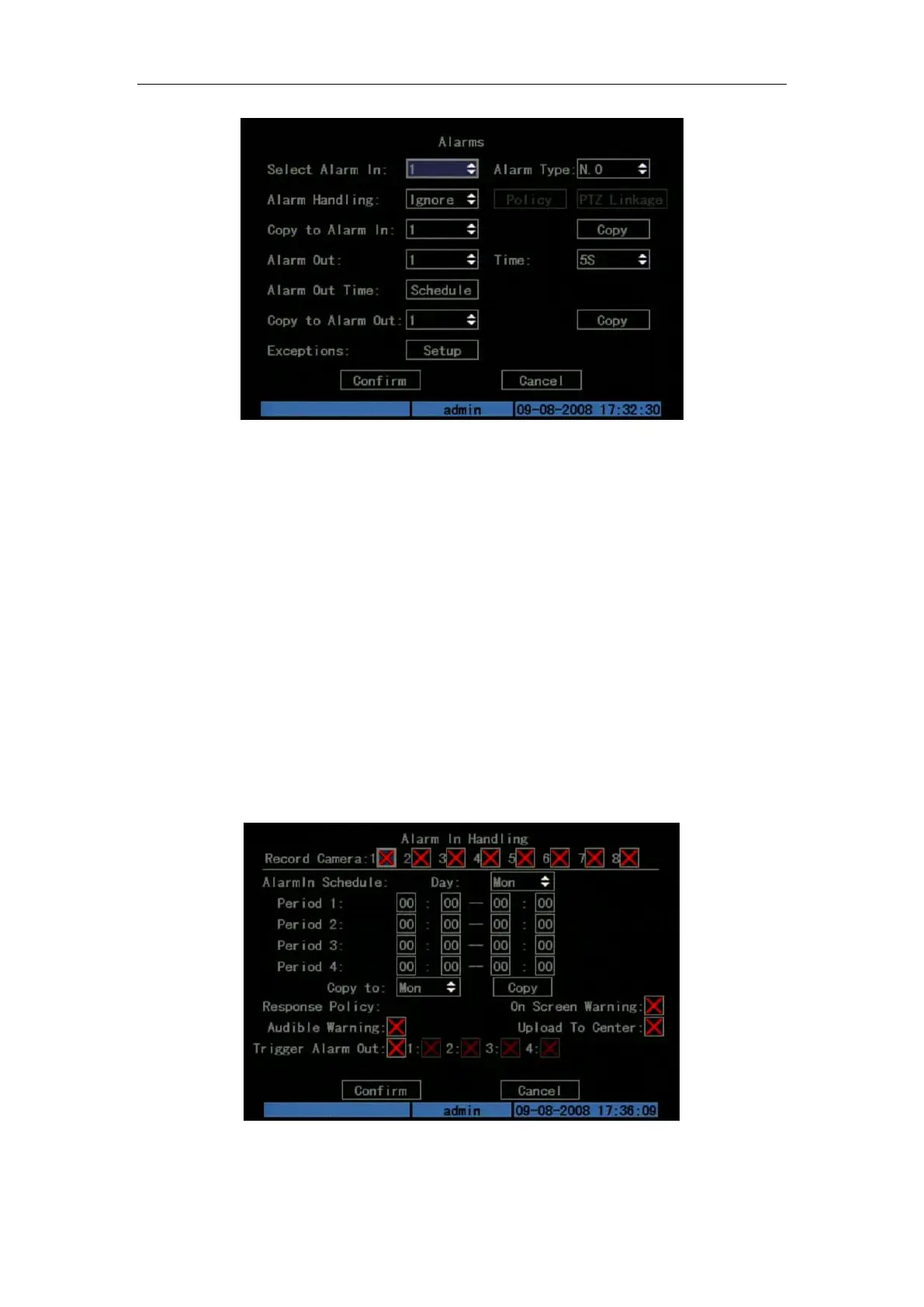

5.23 Alarms setup
External alarm input setup:
Step 1: Select one alarm input Use [↑] [↓] keys to select one alarm input.
Step 2: Alarm type
This is sensor type. You can select “Normal Open” or “Normal Close” according to the
sensor type.
Step 3: Enter “Alarm in Handling” sub menu
In the “Alarms” menu, there are two options for “Alarm Handling” item. One is “Ignore”,
and the other is “Handle”. If you select “Handle” option, you can active “Policy” and “PTZ
Linkage” buttons on right side. Move “Active Frame” to “Policy” button and press [ENTER] key,
you will enter “Alarm in Handling” sub menu: Shown as Fig.5.24 below
Fig. 5.24 Alarm in handling setup
Step 4: Alarm trigger record channel setup
