DS-7108HI-S series Net DVR User Manual
53
password that ISP provided.
Step 6: Save parameters. In “Network” menu, press “Confirm” to save parameters. Reboot
DVR to make parameters into effect. In reboot process, DVR will start dialup using PPPoE
function. If DVR dialup internet successfully, DVR will display the dynamic internet IP address in
“Network” menu.
5.15 PTZ
There is one RS-485 port at DVR rear panel used for PTZ control. You can setup RS-485
parameters to match your PTZ protocol. In main menu, move “Active Frame” to PTZ icon and
press [ENTER] key, you can enter PTZ menu as follows: Shown as Fig.5.31 below

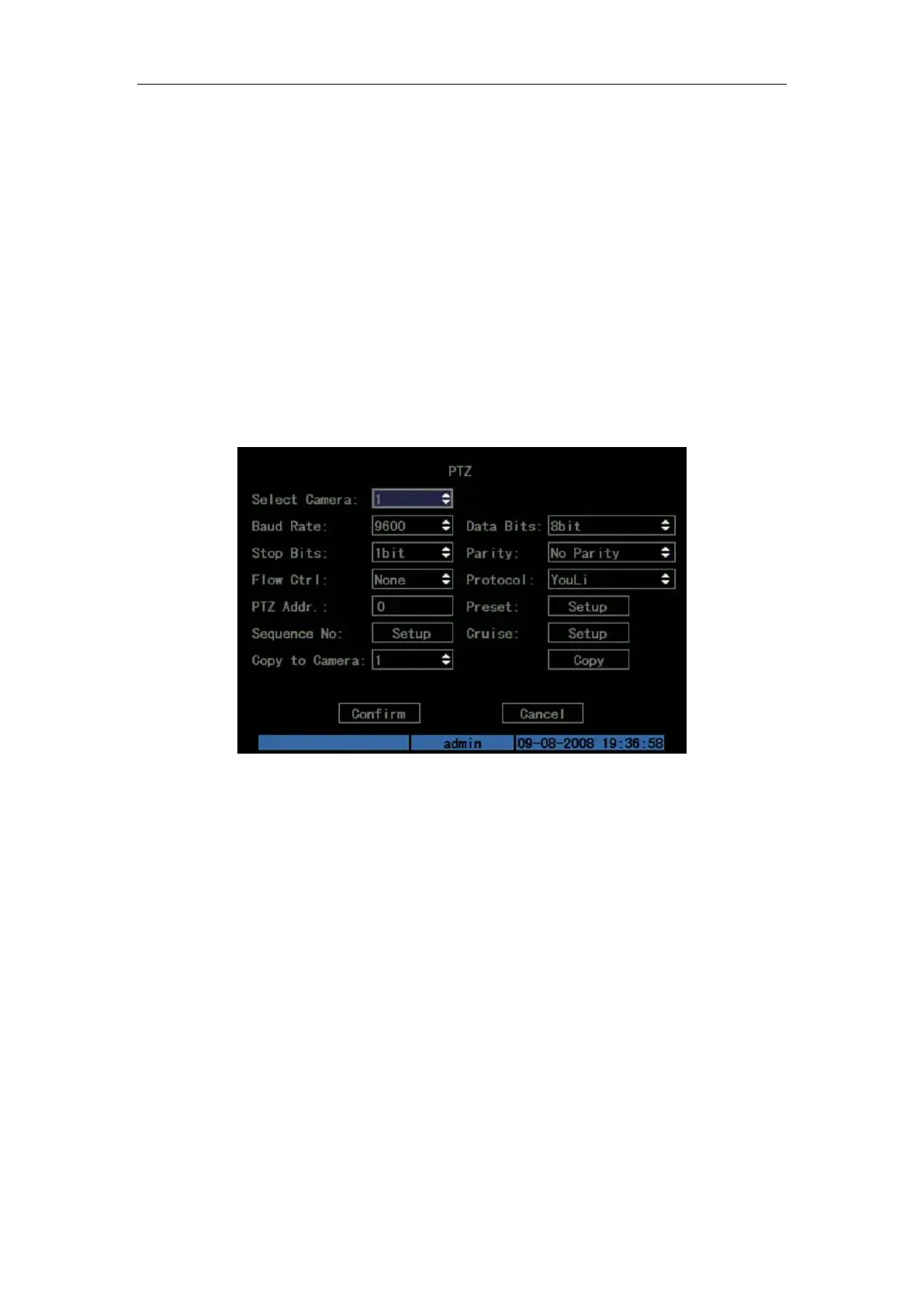

Fig. 5.31 PTZ parameters setup
PTZ menu description
Select camera: Select one PTZ camera.
RS-485 parameters: Including baud rate, data bit, stop bit, parity, flow control, etc. These
parameters must be the same as those PTZ protocols.
PTZ address: Each PTZ has one different address.
PTZ type: DVR had the following PTZ protocols: YouLi, LinLin-1016, LinLin-820, Pelco-p,
DM DynaColor, HD600, JC-4116, Pelco-d WX, Pelco-D, VCOM VC-2000, NetStreamer,
SAE/YAAN, Samsung, Kalatel-312, CELOTEX, TLPelco-p, TLHHX-2000, BBV, RM110,
KC3360S, ACES, ALSON, INV3609HD, Howell, Tc Pelco P, Tc Pelco D, AUTO-M, AUTO-H,
ANTEN, CHANGLIN, DeltaDome, XYM-12, ADR8060, EVI-D30, DEMO-SPEED,
DM-PELCO-D, ST832, LC-D2104, HUNTER, A01, TECHYIN, WEIHAN, LG, D-MAX,
Panasonic, KTD-348, infinova, PIH-7625, LCU, DennarDome, etc. Other PTZ protocols will be
added with the new firmware.
