DS-7108HI-S series Net DVR User Manual
20
4.5 PTZ Control
Note: The user must have the “PTZ control” right.
PTZ control interface
In menu mode, press [PTZ] key, you can enter the PTZ control interface directly.
In preview mode, press [PTZ] key, in the login dialog, select one user name and input the
correct password, you can enter PTZ control interface. As shown in Fig. 4.7 below.

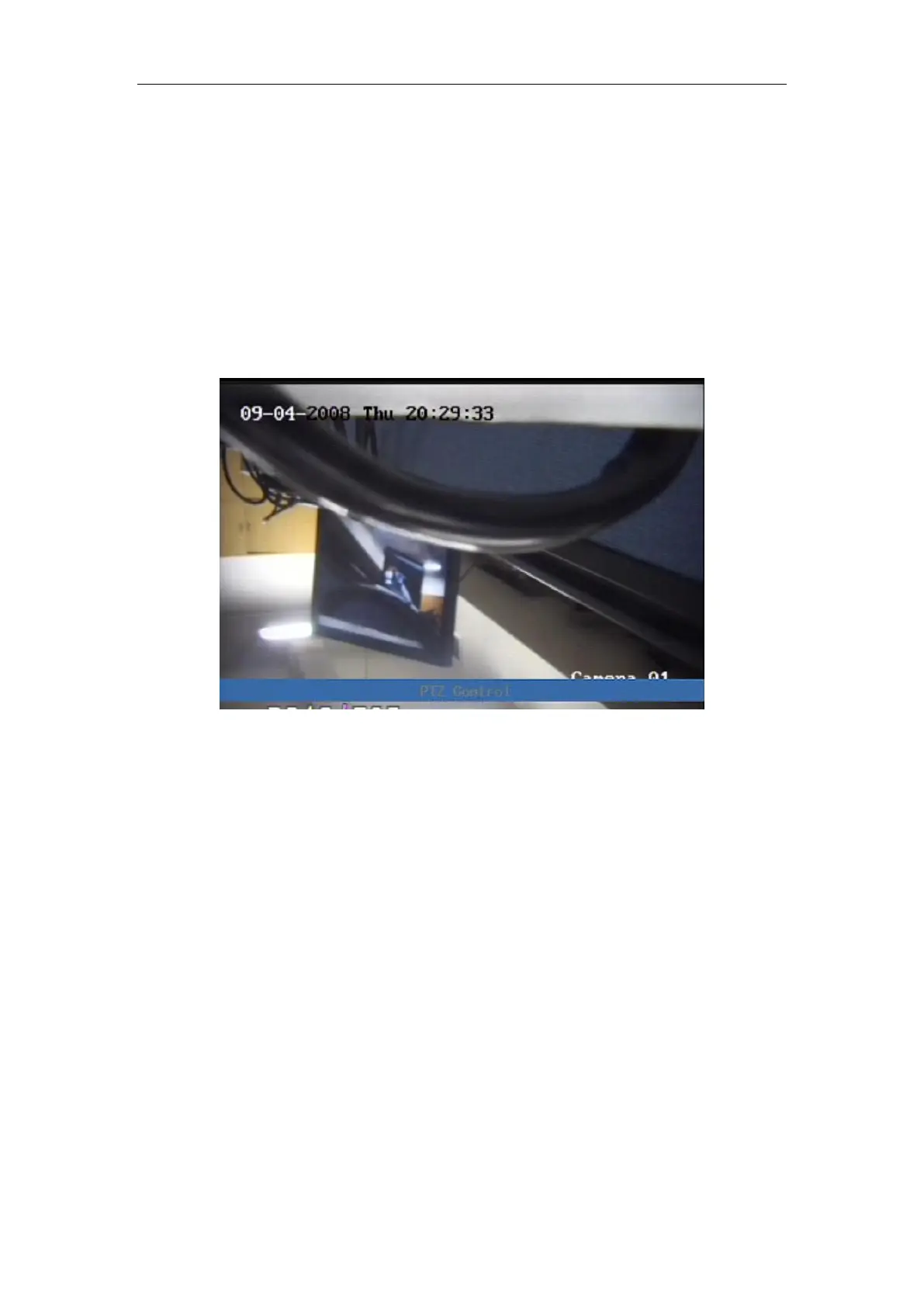

Fig. 4.7 PTZ Control interface
The position where current camera name displays can be user-defined.
Select channel
In PTZ control mode, you can press numeric keys under SHIFT mode to select channel. For
example, you can press [2] key to select the 2
nd
camera PTZ.
After you select the camera PTZ, you can use the control keys to control PTZ.
Description of PTZ control keys in IR remote control
Direction control keys: [↑], [↓], [←], [→];
ZOOM control keys: [ZOOM+], [ZOOM-];
FOCUS control keys: [FOCUS+], [FOCUS-];
IRIS control keys: [IRIS+], [IRIS-];
Adjust preset keys: [REC];
Auto control key: [PLAY];
Wiper control key: [MENU/WIPER];
Light control key: [F1].
Adjust preset description
In PTZ control mode, press [REC] key, and press the preset number (three numeric keys),
