the upper left side. For PAL camera, the whole screen is divided into 22*18 panes (22*15 for
NTSC), you can use[↑][↓][→][←]keys to move the yellow pane to your hope position and
press[EDIT]key, the yellow pane will be turned into red, then you can use[↑][↓][→]keys to extend
the red pane and [←]key to shrink the red pane. This red area is the mask area.
After you confirm the red mask area, please press [EDIT] key to save the mask area. The
maximum mask area size is 8*8 panes and the minimum size is only one pane. You can setup 4
mask areas at most.
After you finish setup, press [ENTER] key to return “Advanced settings” menu. You can
press [A] key to clear all mask areas.
Step 5: Save mask area: You can repeat step2, step3 and step4 to setup mask area for other
cameras. In “Advanced setting” menu, press “Confirm” button to save the mask area, press
“Cancel” button to invalidate.
Here is the example for mask area function. Shown as Fig.5.15 below

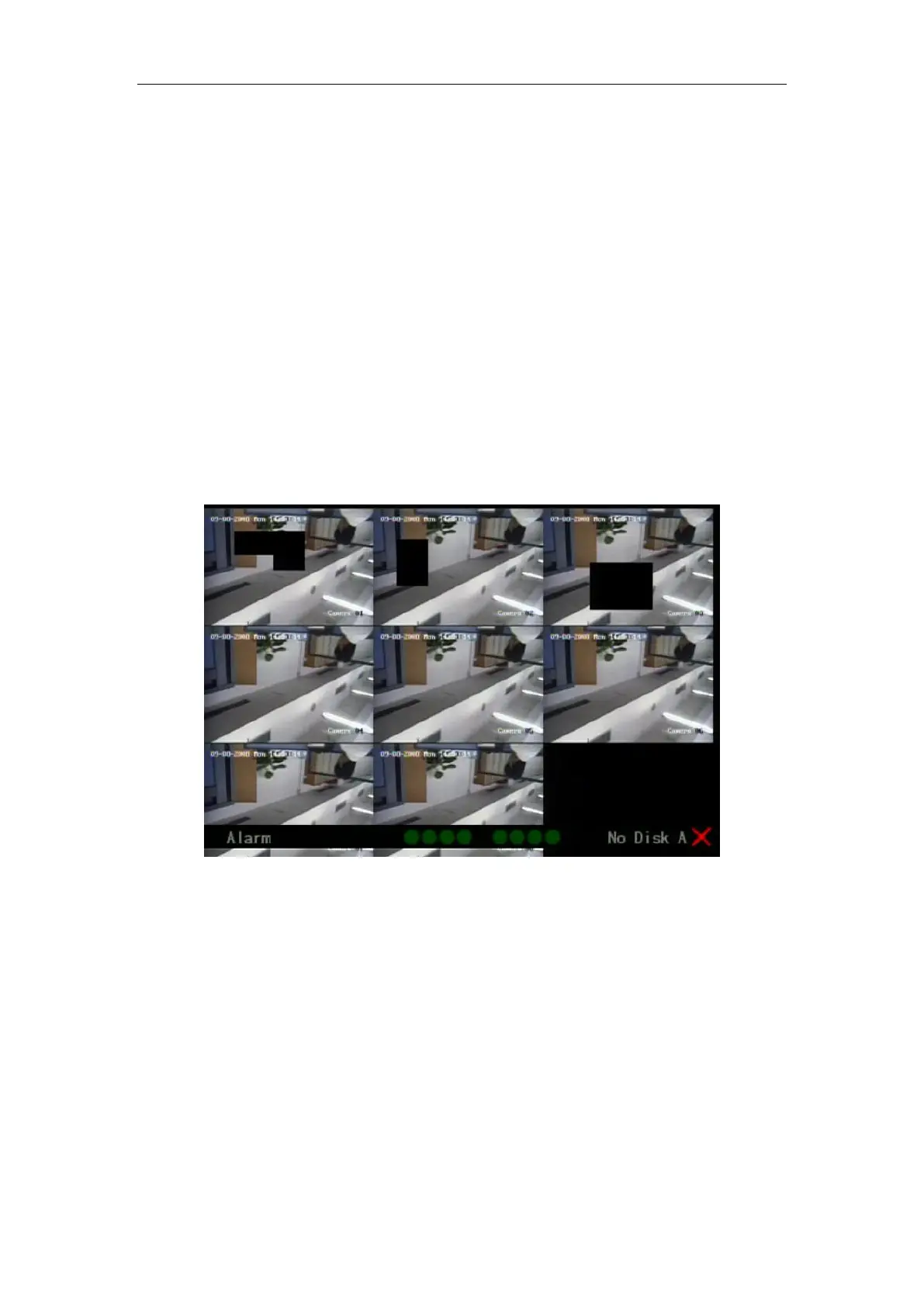

Fig. 5.15 Area masked
Disable the mask check box means cancel the mask area.
5.8 View Tampering Alarm
If you enable this function, when someone blocks the camera spitefully, DVR will sound
warning alarm.
Step 1: Enter “Camera” menu:
Step 2: Select camera: Please use [] [] keys to select one camera. And enter “Advanced
Settings”.
