Note: In DVR “PTZ” menu, if you select Pelco-P protocol, when you setup PTZ address,
please plus or minus one compared with Camera ID. For example, if camera ID is 2, the DVR
PTZ address is set as ID 3.
Preset setup: Preset is using one number to represent the camera’s position, zoom, focus and
iris. Move “Active Frame” to “Setup” button on the right side of “Preset” item, press[ENTER]key
to enter preset setup menu. You can save 128 preset numbers. Please make sure the PTZ support
preset function before you setup preset.
Sequence setup: Each sequence is made up of several cruise points. Each cruise point
includes one preset number, dwell time and dwell speed. Please make sure the PTZ you are using
can support sequence function before you start to setup. You can save 16 sequences.
Cruise setup: Cruise is remembering the track of PTZ movement. Please make sure the PTZ
you are using can support cruise function.
Preset setup
In “PTZ” menu, move “Active Frame” to “Setup” button on the right side of “Preset” item,
press[ENTER], you can enter “Preset” setup menu: Shown as Fig.5.32 below

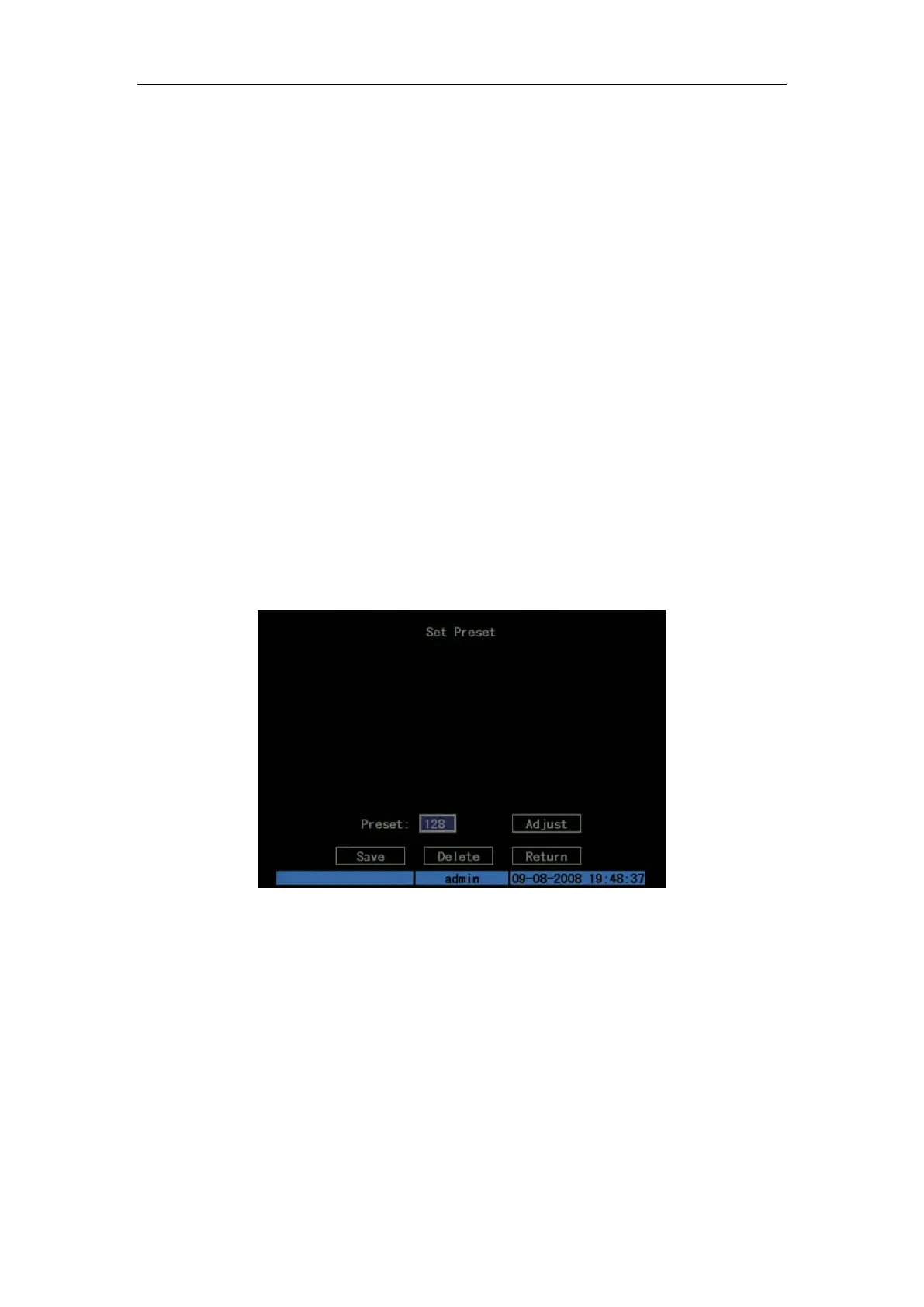

Fig. 5.32 PTZ preset setup
Add preset number: You can input preset number (among 1-128) in the edit box. Then press
“Adjust” button to enter PTZ control interface. In PTZ control interface, you can use direction
keys to adjust PTZ position, and use [IRIS+] [IRIS-] [FOCUS+] [FOCUS-] [ZOOM+] [ZOOM-]
keys to adjust iris, focus and zoom. After you finish adjusting, press [ENTER], then press “Save”
button to save the preset number. You can repeat this step to setup other preset numbers.
After you setup all preset numbers, press “Return” button to return “PTZ” menu. In “PTZ”
menu, press “Confirm” button to save all parameters.
Delete preset number: In “Preset” setup menu, input one preset number, press “Delete”
button, you can delete this preset number.
After deleting, press “Return” button to “PTZ” menu. In “PTZ” menu, press “Confirm”
